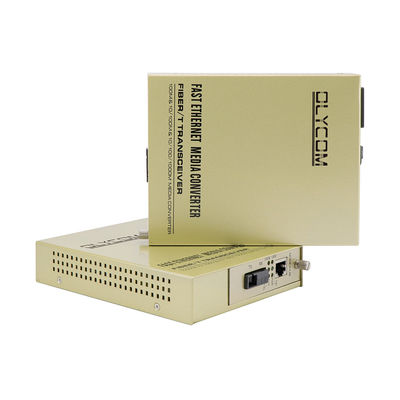

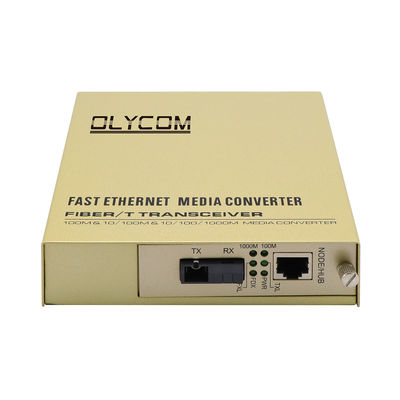

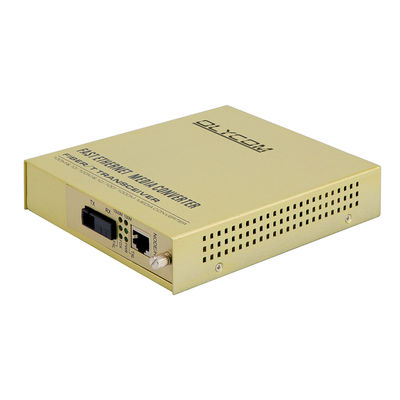

WDM Single Mode Fiber Optic Media Converter
Introduction
Olycom Gigabit Ethernet media converter features
- 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology
- 10/100/1000Mbps autosensing, auto-MDI/MDIX
- utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km
- Full- positioned LEDs to indicate power and network status
- It’s often applied in school, cyber bars, offices, and telecommunication networks
Key Features
Specification
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet)
IEEE802.3x (Flow Control) IEEE802.1q, IEEE802.1p QoS
IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az
|
| 10/100/1000BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
9/125um singlemode fiber cable (20/40/60/80/100/120km) |
|
Conversion Mode
Delay Time
|
Store-and-Forward < 10us
straight-through<0.9us
|
| Flow control |
Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port |
Auto-MDI/MDIX |
| Fiber Connector |
SC standard, ST/FC optional |
| Wavelength |
1310/1550nm |
| Dimensions |
173mm(W) x 128mm(D) x 32mm(H) |
| Weight |
Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage |
AC100 ~ 240V / 50-60HZ |
| Power Consumption |
<2.5W |
| MTBF |
50,000 hours |
| BER |
<1/1000000000 |
| MAC Address Table |
4K |
| Buffer Size |
1.75M |
| Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-40℃~70℃ |
| Storage Humidity |
5%~90% non-condescending |
Ordering Information
| OM511/2-GE/SC-20 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 20km, internal power supply |
| OM511/2-GE/SC-40 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 40km, internal power supply |
| OM511/2-GE/SC-60 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 60km, internal power supply |
| OM511/2-GE/SC-80 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 80km, internal power supply |
| OM511/2-GE/SC-100 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 100km, internal power supply |
| OM511/2-GE/SC-120 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 120km, internal power supply |
Above listed are most frequently ordered items.
FAQ
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.
Can I visit your factory?
Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.
Please let us know if you have a plan.
What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.
