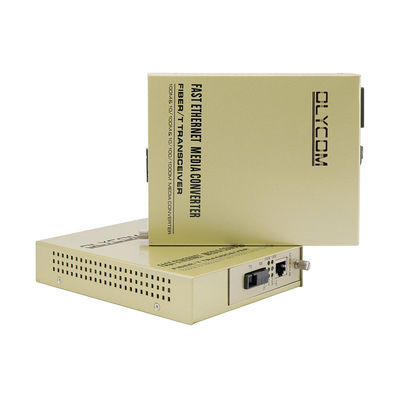

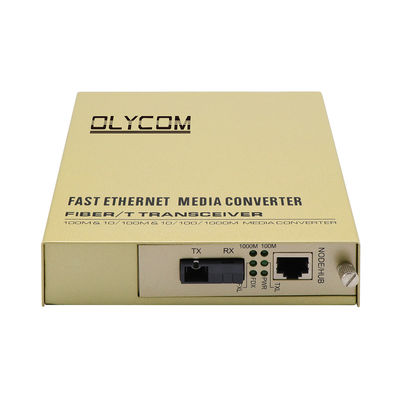

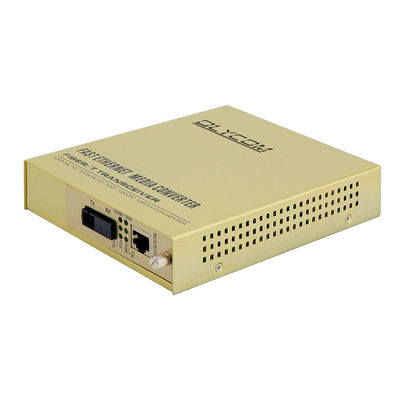

Olycom WDM Single Mode Fiber Optic Media Converter
Introduction
Olycom Gigabit Ethernet media converter features
- 1-fiber transmission with Wavelength Division Multiplexing (WDM) technology
- 10/100/1000Mbps autosensing, auto-MDI/MDIX
- utilize fiber optics to extend the physical distance range of typical Ethernet link to 20km-100km
- Full- positioned LEDs to indicate power and network status
- It’s often applied in school, cyber bars, offices, and telecommunication networks
Key Features
Specification
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet)
IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet)
IEEE802.3x (Flow Control) IEEE802.1q, IEEE802.1p QoS
IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az
|
| 10/100/1000BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
9/125um singlemode fiber cable (20/40/60/80/100/120km) |
|
Conversion Mode
Delay Time
|
Store-and-Forward < 10us
straight-through<0.9us
|
| Flow control |
Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port |
Auto-MDI/MDIX |
| Fiber Connector |
SC standard, ST/FC optional |
| Wavelength |
1310/1550nm |
| Dimensions |
173mm(W) x 128mm(D) x 32mm(H) |
| Weight |
Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage |
AC100 ~ 240V / 50-60HZ |
| Power Consumption |
<2.5W |
| MTBF |
50,000 hours |
| BER |
<1/1000000000 |
| MAC Address Table |
4K |
| Buffer Size |
1.75M |
| Operating Temperature |
0℃~50℃ |
| Storage Temperature |
-40℃~70℃ |
| Storage Humidity |
5%~90% non-condescending |
Ordering Information
| OM511/2-GE/SC-20 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 20km, internal power supply |
| OM511/2-GE/SC-40 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 40km, internal power supply |
| OM511/2-GE/SC-60 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 60km, internal power supply |
| OM511/2-GE/SC-80 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 80km, internal power supply |
| OM511/2-GE/SC-100 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 100km, internal power supply |
| OM511/2-GE/SC-120 |
10/100/1000M, Standalone, Single fiber, Single mode, SC, 120km, internal power supply |
Above listed are most frequently ordered items.
QC Framework
1. Quality Standards & Compliance
Our quality control system is established in accordance with internationally recognized standards and industry requirements. All products are designed, manufactured, and tested to comply with relevant certifications and regulations, including ISO 9001 Quality Management System, CE, FCC, RoHS, IEEE, and ITU-T standards. In addition, customer-specific technical requirements and performance criteria are incorporated into the quality assurance process to ensure full compliance with contractual and application needs.
2. Quality Control Process
Quality assurance is implemented throughout the entire product lifecycle, from incoming materials to final shipment.
2.1 Incoming Quality Control (IQC): Critical components such as optical modules, PCBs, power supplies, connectors, and other key materials are inspected and verified before entering production.
2.2 In-Process Quality Control (IPQC): Automated Optical Inspection (AOI), assembly verification, and process monitoring are conducted during manufacturing to ensure product consistency and assembly accuracy.
2.3 Functional Testing: Products undergo comprehensive functional validation, including throughput testing, VLAN and QoS verification, protocol compatibility checks, wavelength accuracy measurement, optical power validation, and OSNR performance assessment.
2.4 Reliability Testing: Environmental and mechanical reliability tests are performed under various conditions, including temperature cycling, humidity exposure, vibration, and transportation simulation.
2.5 Burn-in & Stress Testing: Extended burn-in procedures are carried out under controlled load conditions to identify potential early-life failures and verify long-term operational stability.
2.6 Final Quality Inspection (FQC): Prior to shipment, each product receives a complete visual inspection and final functional verification to ensure it meets all quality and performance requirements.
3. Testing Equipment & Resources
Advanced testing instruments and laboratory facilities are utilized to support accurate measurement and validation activities. Key equipment includes Optical Spectrum Analyzers (OSA), traffic generators, protocol analyzers, optical power meters, BER testers, environmental chambers, and vibration testing systems. These tools enable comprehensive verification of both electrical and optical performance parameters.
4. Quality Management System
A complete quality management infrastructure is implemented to maintain product traceability and process transparency. Manufacturing records, inspection reports, and test results are systematically documented and stored within a centralized QC management platform. Full traceability allows rapid identification of components, production batches, and testing history throughout the product lifecycle.
5. Continuous Improvement
Continuous quality enhancement is achieved through systematic root cause analysis, corrective and preventive actions (CAPA), and regular review of customer feedback. Quality data collected from production, testing, and field performance are analyzed to identify improvement opportunities, optimize processes, and enhance product reliability and customer satisfaction.
FAQ
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.
Can I visit your factory?
Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.
Please let us know if you have a plan.
What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.
