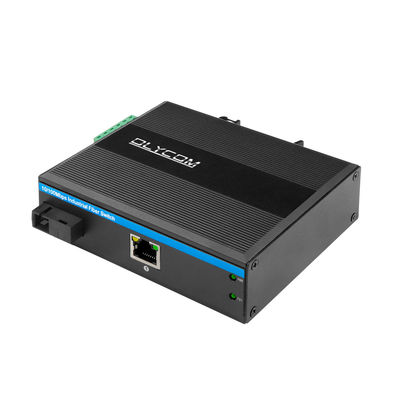

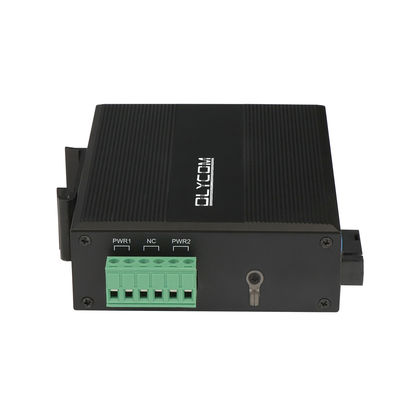

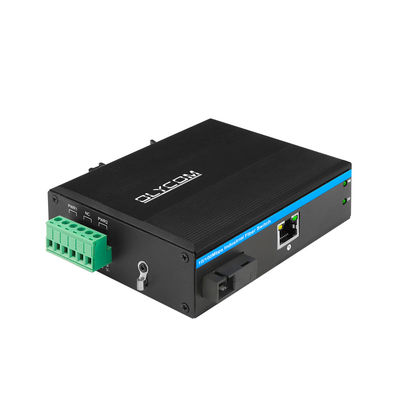

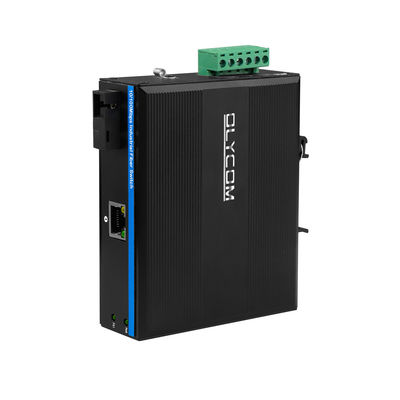

WDM Single Fiber SC PoE Media Converter 10/100M
Key Features of Fiber Optic Media Converter
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af /at power on to 1 RJ45 port
- 1 x 10/100Mbps Auto-sensing RJ45 port
- 1 x 100Mbps SC Single fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
- Max power to 15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating environment temperature:-40 ° ~75 ° c
With above features, it is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of Unmanaged Media Converter
| Product Name |
10/100Mbps Fast Ethernet DIN PoE Media Converter
|
| Model No. |
IM-PC111FE |
| Port |
1 x 100Mpbs fiber port
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm,40~120Km
MM: 1310nm, 2Km
1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Protocol
|
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 0.4Gbps (non-traffic jam)
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SC single fiber port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1, FX2
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power supply |
Full loading without PoE≤5W
PoE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 15.4W/30W
Total budget: 30W
PoE output voltage: 48V
Reverse connection: support
PoE Wiring: 1/2 (V+), 3/6 (V-)
|
| Environment |
Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 114x 93 x 35mm
Mounting method: Din-rail mounting
|
| Warranty |
3 years |
Application of CCTV PoE Media Converter
Packaging
Selling Units: Single item
Single packaging size: 23*16.5*5.8cm
Single gross weight: 0.35kg
Package type: One product and one user manual are inside one box
Quality Control
- All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
- Every production process has a special person to test to ensure quality
- Every product must be tested before shipping to our customers. The quality is attached to great importance during the whole production process.
- All products have passed CE, FCC, ROHS, and other certifications
FAQ
1. Do you support OEM&ODM?
Yes, this is our competitive advantage.
2. What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
3. Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are exhibitors for small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for display and record, please let us know if you need to check.
4. What chip is it based?
Olycom: Realtek
5. Can I customize it?
Olycom: Yes
We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)
