20KM WDM Media Converter Fast Ethernet Rugged Industrial Network Mini Size Unmanaged

1pc
MOQ
Negotiable
Price

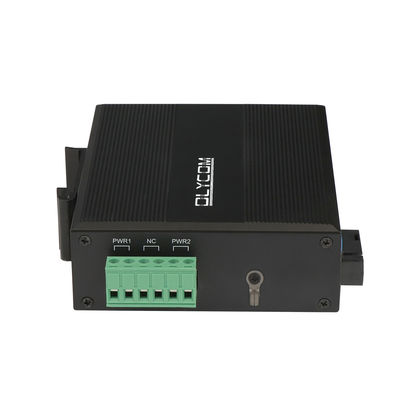

20KM WDM Media Converter Fast Ethernet Rugged Industrial Network Mini Size Unmanaged
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 2 Port Unmanaged Fiber Media Converter
Network Speed: 10/100Mbps
Fiber Type: SC Single Fiber
Chip: Realtek
Customization: Support
Feature: Unmanaged, Non-PoE
Highlight:

20Km 2 Port Fiber Media Converter

,

DC9V Single Fiber Media Converter

,

20Km Single Fiber Media Converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-MC110FE/SC
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 2000 pieces per month
Product Description

Olycom Fast Ethernet Unmanaged Media Converter



Basic Information of Industrial Media Converter



  • 1x100M fixed BIDI SC fiber, 1*10/100Mbps Auto-sensing RJ45 ports
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • DIN rail or Wall installation
  • Comply with FCC and CE standards
  • Operating environment temperature: -40°C～75°C



Specification of Unmanaged Media Converter



Product Name 10/100Mbps Industrial Fiber Media Converter(1TP+1F)
Model No. IM-MC110FE
Port

1 x 100Mpbs port

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km

1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)
Switching features

Transmission mode: storage and forward

System bandwidth: 0.4Gbps (non-traffic jam)

DRAM size: 128M

Flash size: 16M
Packet buffer size: 4Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs

Power, network, fiber

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps
Power supply

Input voltage: DC 12-52V, typically DC12V/DC24V/DC48V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years, lifetime technical support



Packaging & Delivery of Fiber Network Media Converter



  • One product, one warranty card, and one user manual are in one box.
  • 40pcs boxes are in one carton. (67*33*47cm)
  • Port: Shenzhen
  • Lead Time: 3-5 days and will change according to different quantities

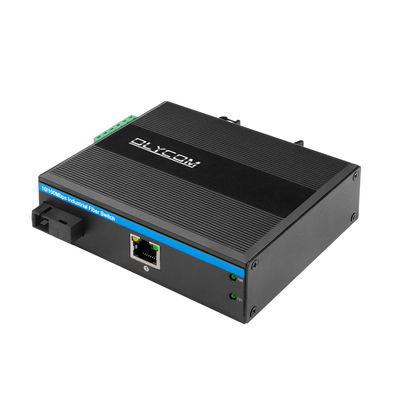

20KM WDM Media Converter Fast Ethernet Rugged Industrial Network Mini Size Unmanaged 0



Q&A



1. Are you a manufacturer?

Yes, we have our production line and R&D team.

Please visit us via below VR link to see our office and production area.

https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html



2. What is the leadtime if I order?

After receiving the payment, we start production.

If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.

If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.



3. How will you ship my order?

We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)

It is fine to ship purchased items via customer’s shipping account or forwarder.

It takes 3~5 calendar days to arrive at local customs for clearance.



Photos

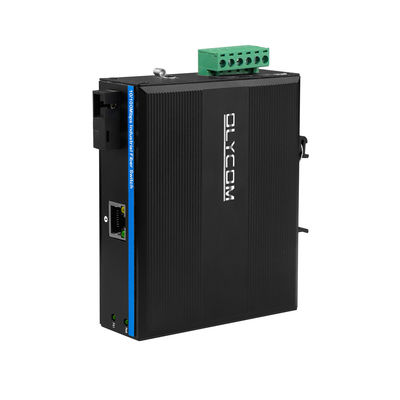

20KM WDM Media Converter Fast Ethernet Rugged Industrial Network Mini Size Unmanaged 1

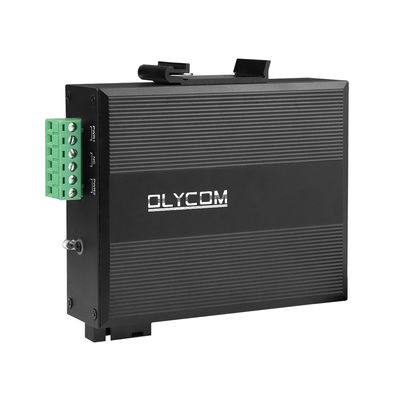

20KM WDM Media Converter Fast Ethernet Rugged Industrial Network Mini Size Unmanaged 2
