Home /Products/Industrial Ethernet Media Converter/Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size

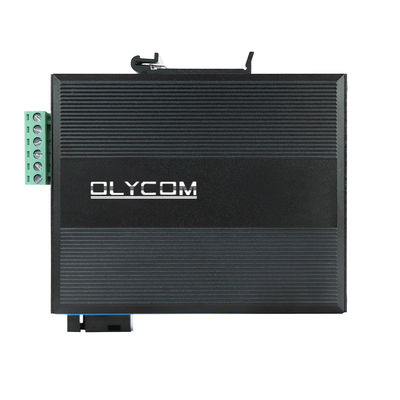

Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size

1pc
MOQ
Negotiable
Price
Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Mini Industrial Gigabit Fiber Media Converter
Fiber Type: SC, WDM BIDI
Reverse Connection: Support
No-load Power: 5W
Installation: Din Rail Or Wall Mounting
LEDs: Power, Network, Fiber
Highlight:

IP40 Industrial Ethernet Media Converter

,

5W Industrial Ethernet Media Converter

,

IP40 poe media converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-MC110GE/SC
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000 pieces per month
Product Description

Mini WDM Fiber Industrial Gigabit Optical Media Converter


Key Features of Unmanaged Media Converter



  1. 1 x 10/100/1000Mbps Auto-sensing RJ45 ports
  2. 1 x 1000Mbps SC fiber ports
  3. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  7. A store-and-forward switching mechanism
  8. Operating environment temperature: -40°C～75°C



Specification of Fiber Optic Converter



Product Name Mini Industrial Gigabit Media Converter
Model No. IM-MC110GE
Port

1 x 1000Mpbs port
SM: 1310nm/1550nm, 20Km1490nm/1550nm, 40~120Km
MM:1310nm/850nm, 2Km/550m
1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward
System bandwidth: 4Gbps (non-traffic jam)

MAC: 4K

Packet buffer size: 1.75Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SC port transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: support
Environment

Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Safety

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

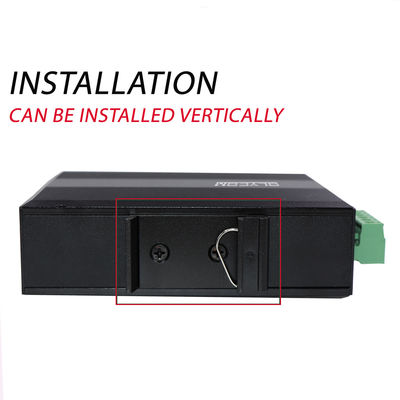

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years


Application


Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size 0



Quality Assurance



  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production.
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications.
  5. Always final Inspection before shipment.




Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size 1

Industrial Ethernet Media Converter Gigabit Unmanaged SC WDM Single Fiber Mini Size 2
