2ch AHD CVI TVI Video 1ch RS485 Data Fiber To Bnc Converter FC On Multimode Fiber
Introduction
Olycom video digital optical converter features below
Model name: OM615-2V↑1D↓WT/R
Funtion: transmit 2ch AHD/HDTVI/HDCVI video signals and 1ch RS485 data on optical fiber for long distance
Video: 720P, 960P, 1080P adaptive, max 2MP
Options: contact closure, audio, phone and Ethernet signals
Key Features
Mini robust metal case
Available in standalone and 3U rack
Technical Parameters
| Video | |
| Channel Quantity | 2ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
| RS485 Data | |
| Channel Quantity | 1ch, from control room to camera |
| Data Rate |
115Kbps |
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Weight | 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
| Dimension-standalone | 179mm ×128.5mm ×28.5mm |
Application
Express way security protection and toll station system
City traffic monitoring system
Building and campus monitoring system
Gymnasium (live video and audio transmission)
Ordering Details
| OM615-2V↑1D↓WT/R-FC20 | 2ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC connector |
| OM615-2V↑1D↓MT/R-FC5 | 2ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC connector |
Above listed are most frequently ordered items. Please contact us for other configurations.

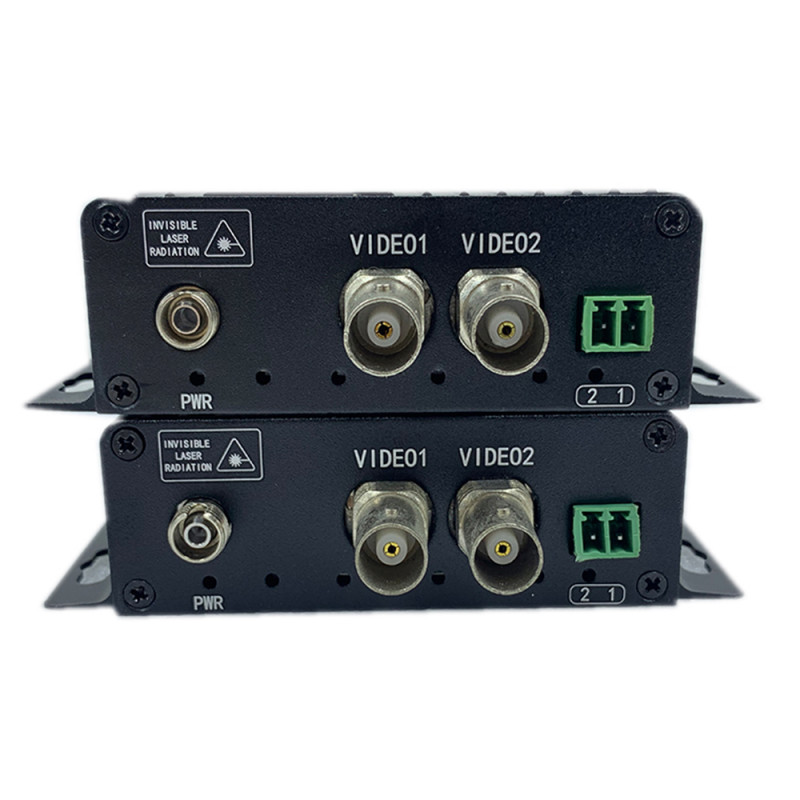

Product Photos
