AHD CVI TVI Video RS485 Data Fiber Media Converter
Introduction
Olycom video digital optical converter features below
Model name: OM615-2V↑1D↓WT/R
Funtion: transmit 2ch AHD/HDTVI/HDCVI video signals and 1ch RS485 data on optical fiber for long distance
Video: 720P, 960P, 1080P adaptive, max 2MP
Options: contact closure, audio, phone and Ethernet signals
Key Features
Mini robust metal case
Available in standalone and 3U rack
Technical Parameters
| Video | |
| Channel Quantity | 2ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
| RS485 Data | |
| Channel Quantity | 1ch, from control room to camera |
| Data Rate |
115Kbps |
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Weight | 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
| Dimension-standalone | 179mm ×128.5mm ×28.5mm |
Application
Ordering Details
| OM615-2V↑1D↓WT/R-FC20 | 2ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC connector |
| OM615-2V↑1D↓MT/R-FC5 | 2ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC connector |
Above listed are most frequently ordered items. Please contact us for other configurations.
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
3 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
5. Q: What is your payment terms?
A: In most cases we do T/T wire transfer and full amount should be collected before shipment.
For sample orders, we receive PayPal payment for shorter processing time.
Sometimes Alipay or WeChat payment is fine, it depends on the cases.

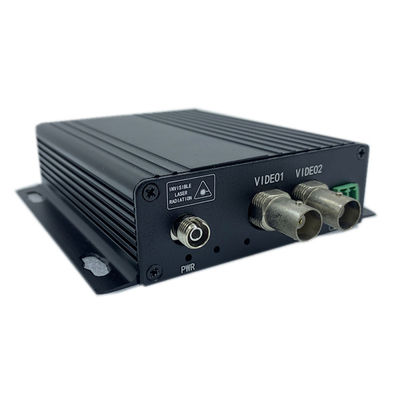

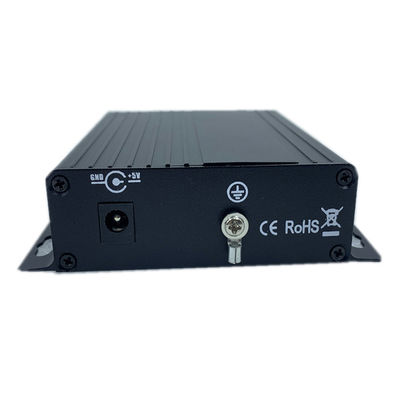

Product Photos
