4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V

1 pair
MOQ
Negotiable
Price
4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: CCTV Camera Video Converter
Connector: FC Port On MM Fiber, SC/ST
Channel: 4Ch, BNC Port
Dimension: 179mm ×128.5mm ×28.5mm
Weight: 0.40kg/piece (Net Weight)
Power: DC 5V1A, 12V Optional
Highlight:

4ch Video Over Ethernet Converter

,

12v Multimode Fiber Converter

,

12V video Over Ethernet Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-4V↑WT/R
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 1.26kg(G.W)
Delivery Time: 3~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pairs per month
Product Description

AHD CVI TVI BNC Video Media Converter



Introduction



OM615-4V↑WT/R AHD/TVI/CVI optical video transmitter and receiver feature



  1. transmits 4ch AHD/HDTVI/HDCVI high-definition composite video signals on optical fiber(single mode or multimode)

  2. 720P, 960P, 1080P and other video signals are adaptive

  3. long distance transmission(usually multimode 5km, single mode 20km/30km/40km)

  4. Data, contact closure, audio and other signals are optional



Key Features



  • Bi-di transmission on 1 fiber with WDM, single fiber multimode
  • Hot plug-and-play with switch power supply

  • Lightning-proof solution

  • Black robust metal casing

  • 3U rack mountable, also available as standalone unit



Technical Parameters



Video
Channel Quantity 4ch, from camera to control center
Video Input /Output Amplitude typical 1Vpp (peak-to-peak), peak 1.2Vpp
Video Input Impedance BNC 75Ω (unbalanced)
Digital Sampling 64MHZ
Digital Bandwidth 512MHZ
Differential Gain Phase 10%-90% APL DG<1% (typical)
Video Bit Width 8 bit
S/N ratio >70dB
Interface BNC



Optical
Wavelength 1310nm/1550nm
Output Power -8~3dBm
Optic fiber Single mode:20Km/40km, multimode:550m
Receiving sensitivity -30dBm
Interface

FC standard, ST/SC optional



Electrical. Environmental. Mechanical
Operating voltage DC 5V1A
Operating temperature -20℃~+70℃
Storage temperature -45℃~+85℃
Humidity 0~95%non-condensing
Dimension-standalone 179mm ×128.5mm ×28.5mm
Weight 0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight)



Application



  • Express way security protection and toll station system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasium (live video and audio transmission)

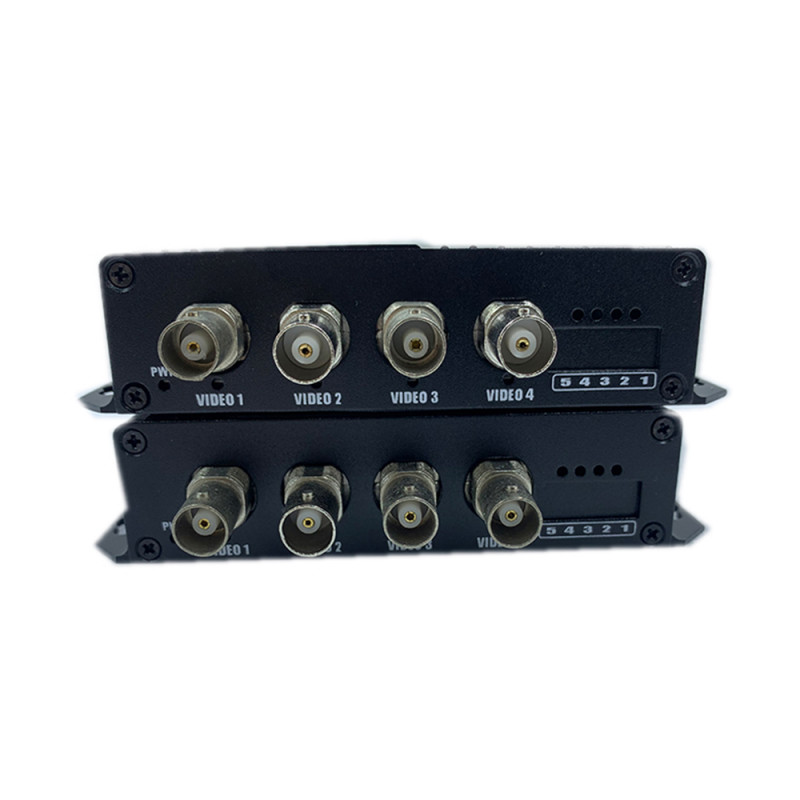

4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V 0



Ordering information



Below are some frequently ordered device descriptions.



OM615-4V↑WT/R-FC20 4ch video Tx, singlemode, single fiber, 20Km, FC connector
OM615-4V↑MT/R-FC5 4ch video Tx, multi-mode, single fiber, 0.5Km, FC connector



Our Advantages



  1. Fast dispatch, it usually takes 2~4 working days to release out the order by DHL/FedEx/UPS.
  2. Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
  3. In stock: We got our own warehouse, for popular models, we have many in stock for fast delivery.
  4. Real-time demonstration: We will send actual product photos and testing videos to clients, our production lines contribute to good in-sales and after-sales services.
Products Category Warranty Period
Fiber media converter 1 year
Optical Video Converter 1 year
Fiber Switch 1 year
Ethernet Extender 1 year
Fiber Modem 1 year
PDH Multiplexer 1 year
Industrial switch 3 years



Product Images

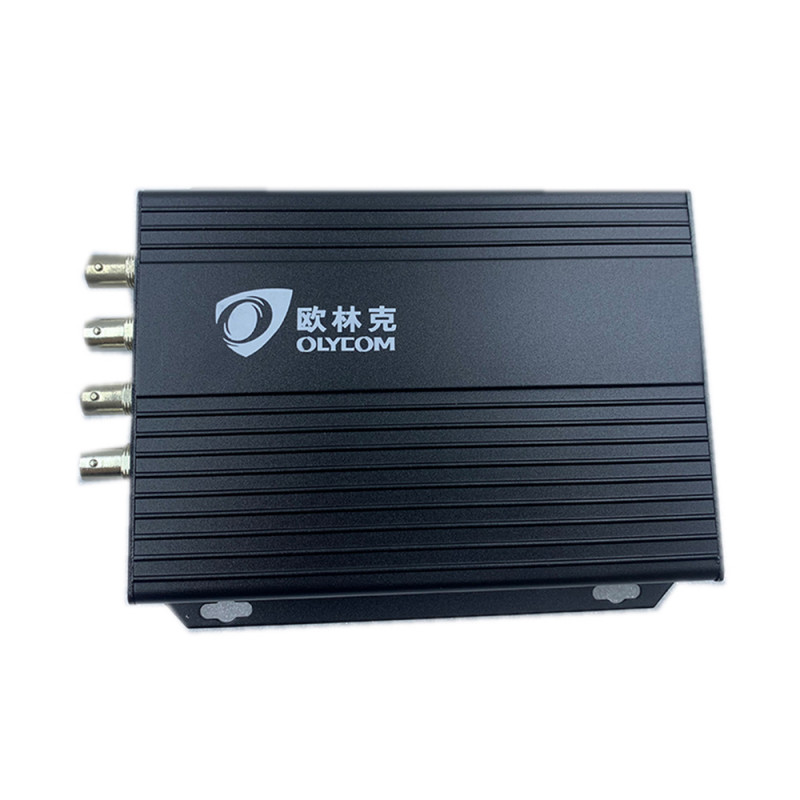

4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V 1

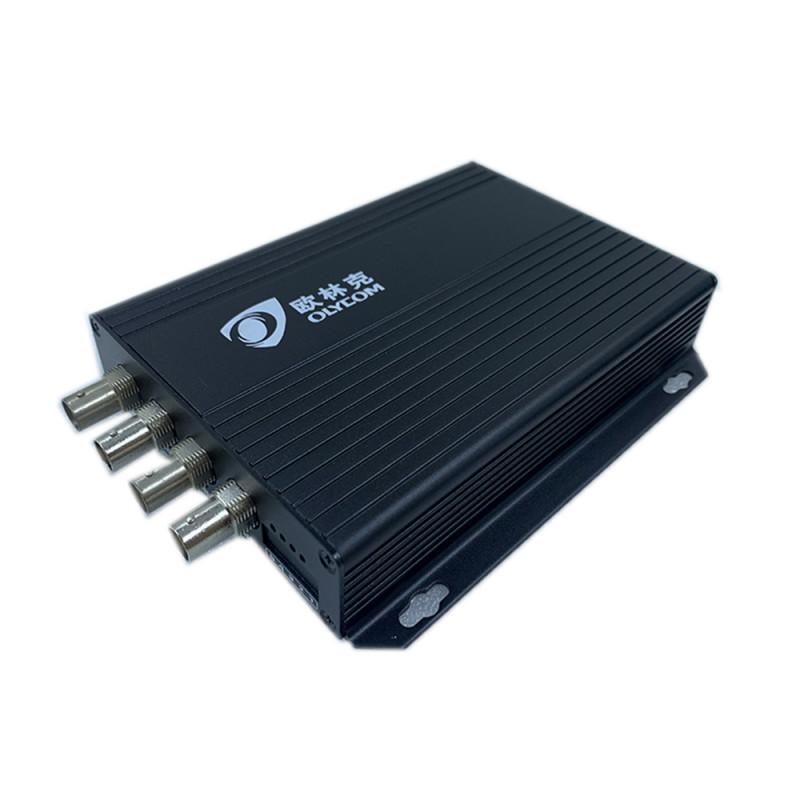

4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V 2

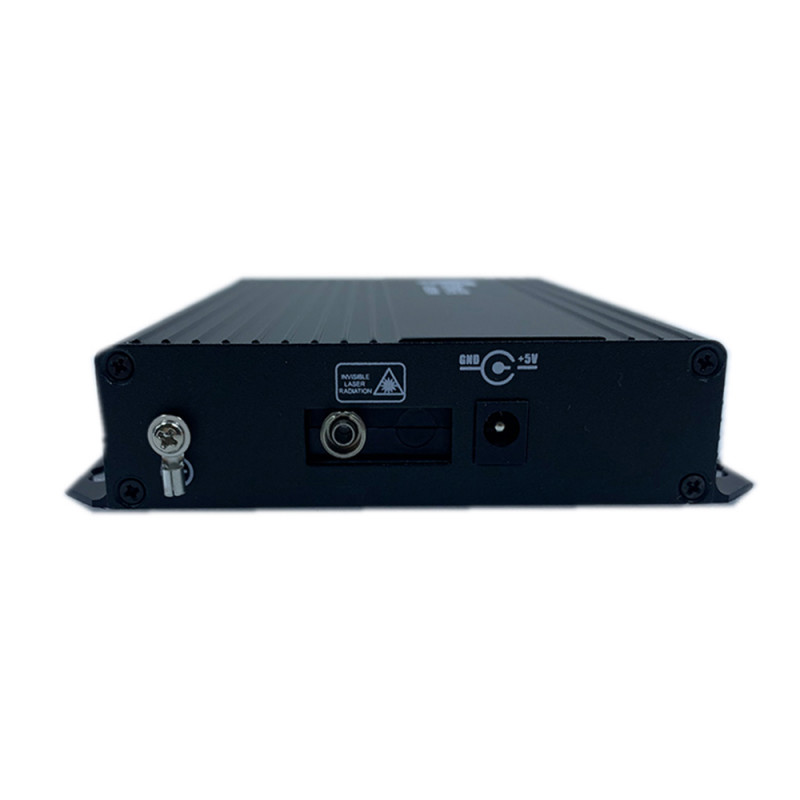

4 Port 1080P Video Over Ethernet Converter Coax Multimode Fiber Converter 12V 3
