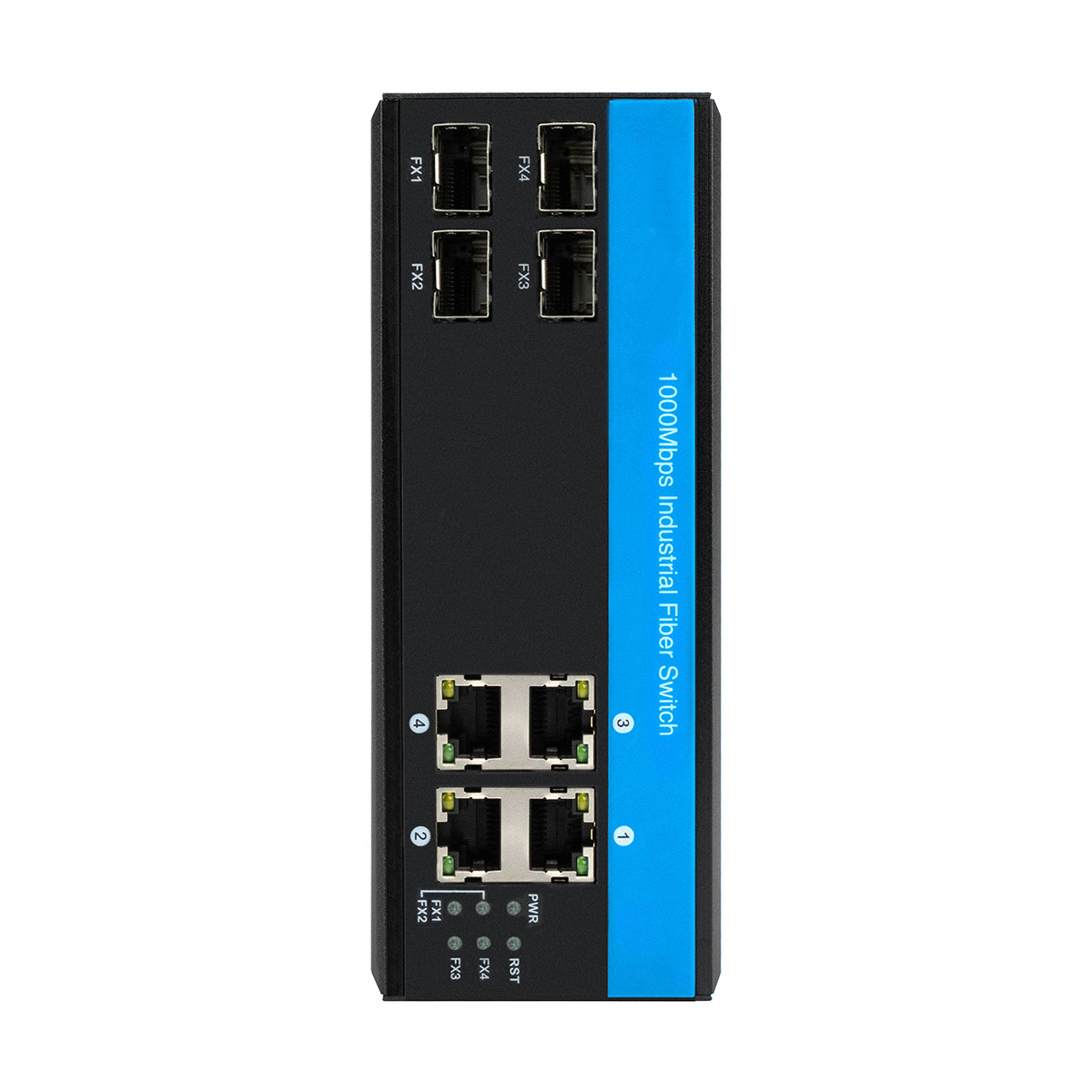

RoHS 4 Port Gigabit Ethernet Switch , Standard Poe Switch Auto MDI/MDIX
1
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-PS444GE
High Light:

RoHS 4 Port Gigabit Ethernet Switch

,

standard poe switch Auto MDI

,

RoHS standard poe switch

Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 6000 per month
Specifications
Product Name: 4 Port Poe Switch
RJ45 Ports: 4
SFP Ports: 4
Mounting Method: Din Rail
Dimension: 158 X 114.8 X 60mm
Reverse Connection: Support
Product Description

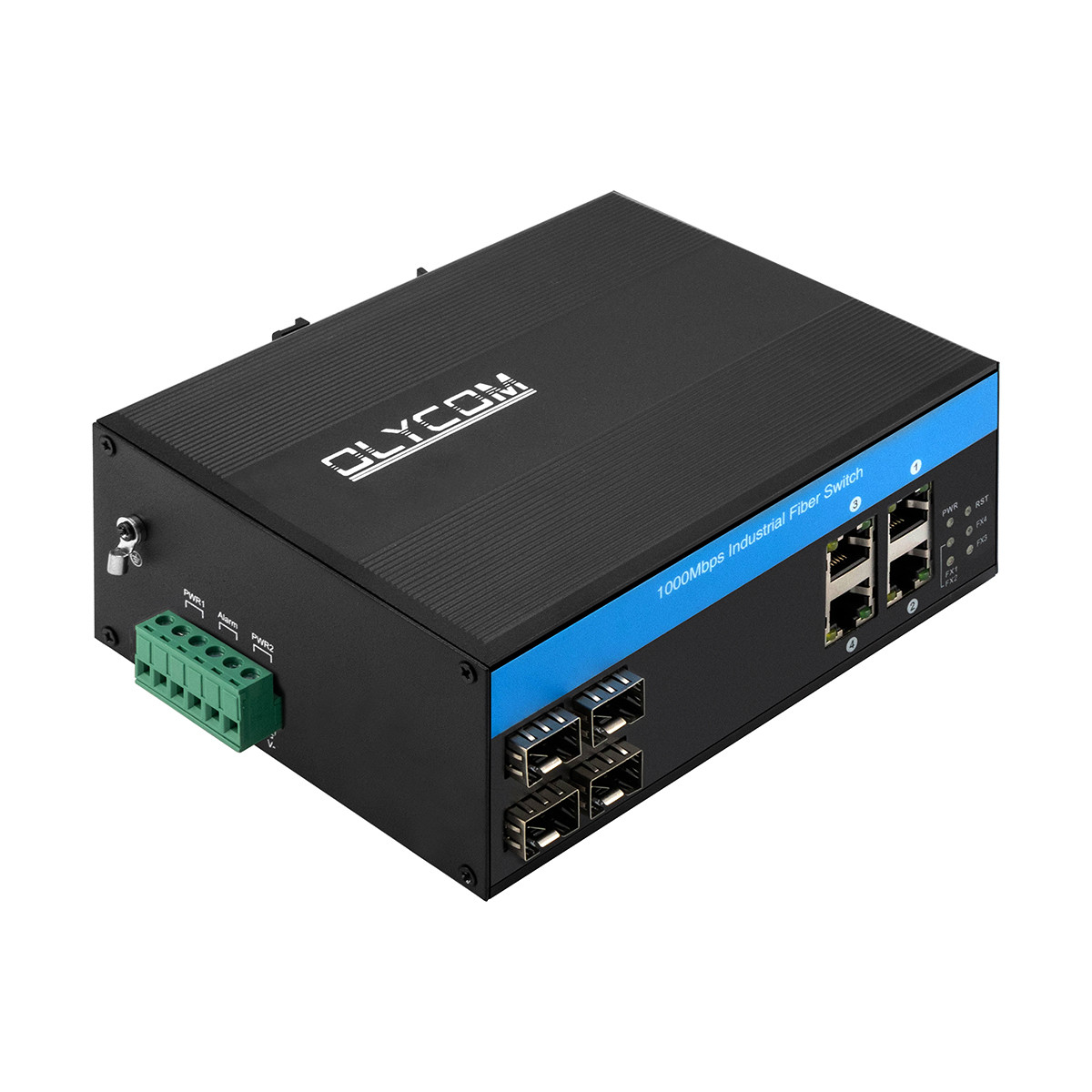

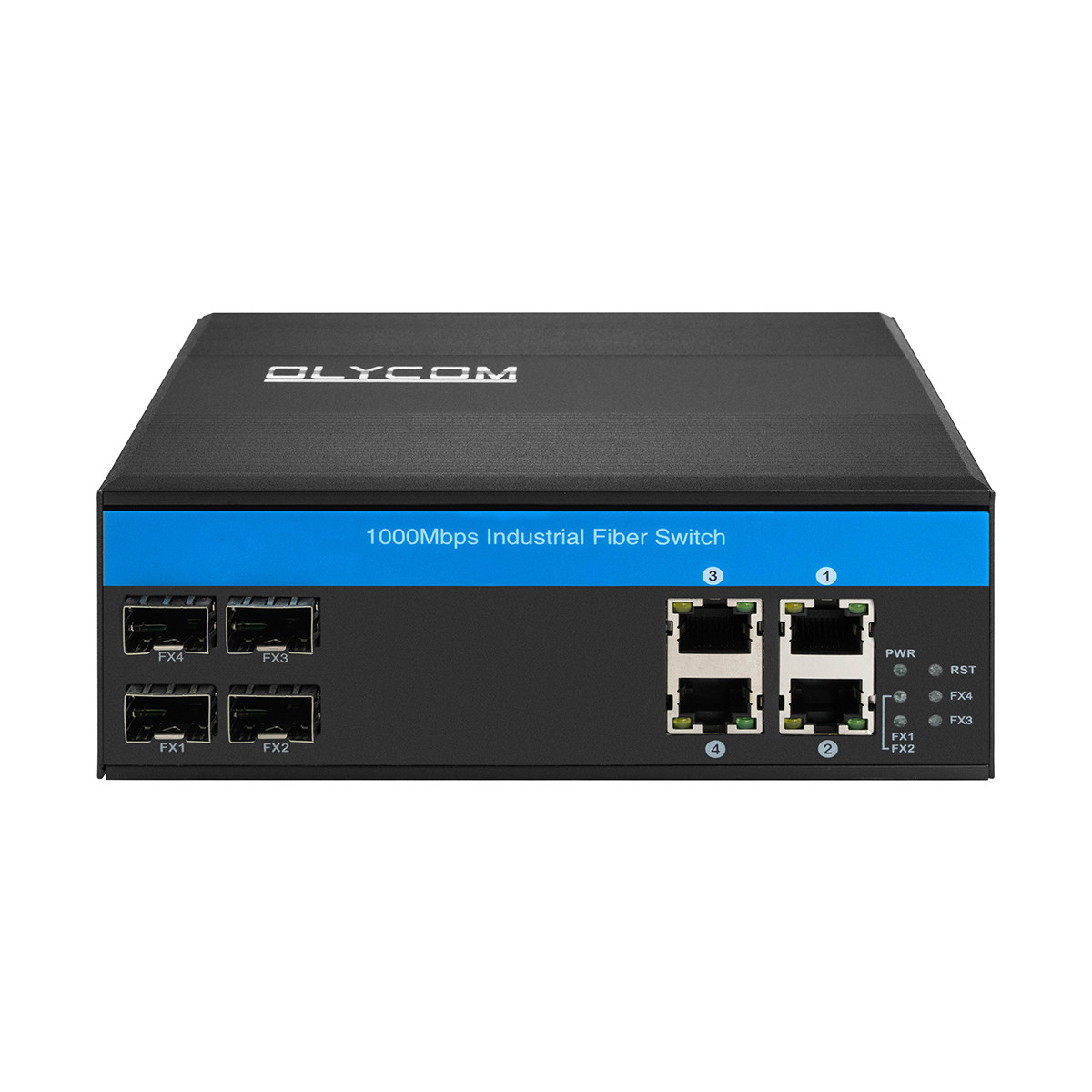

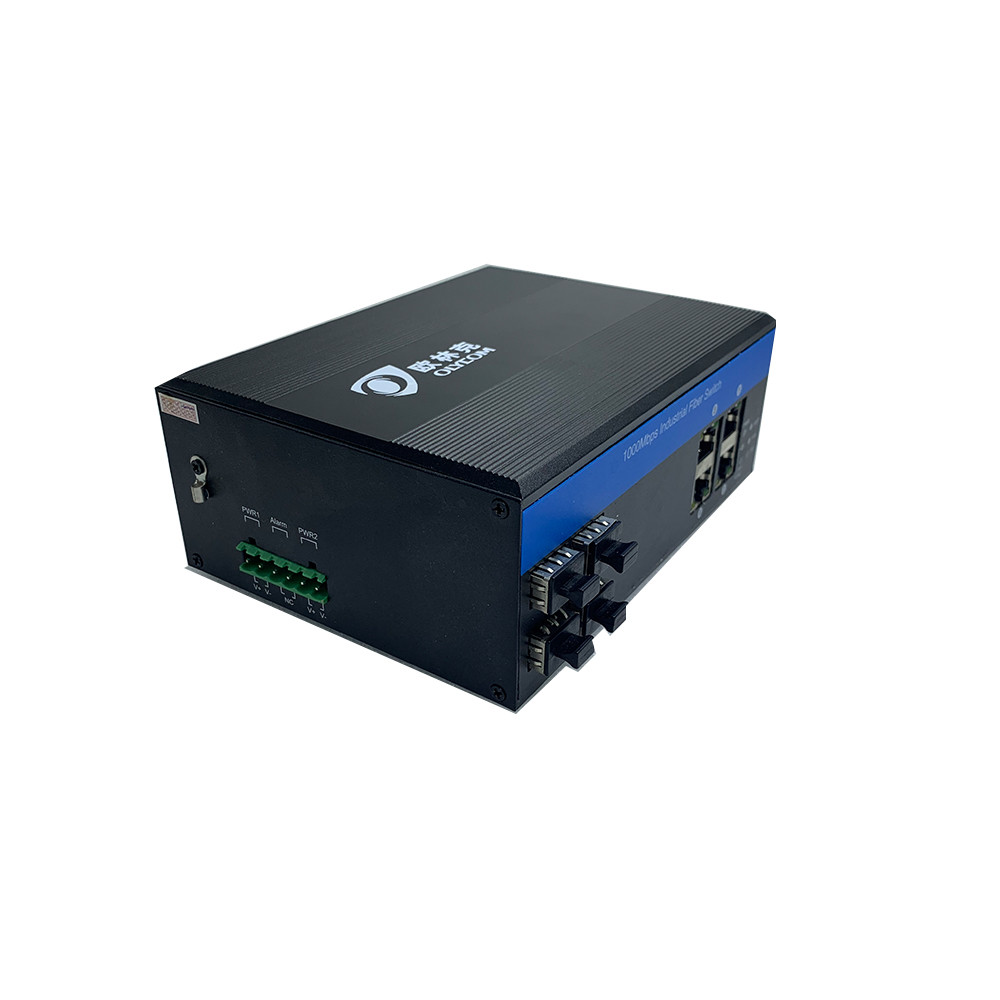

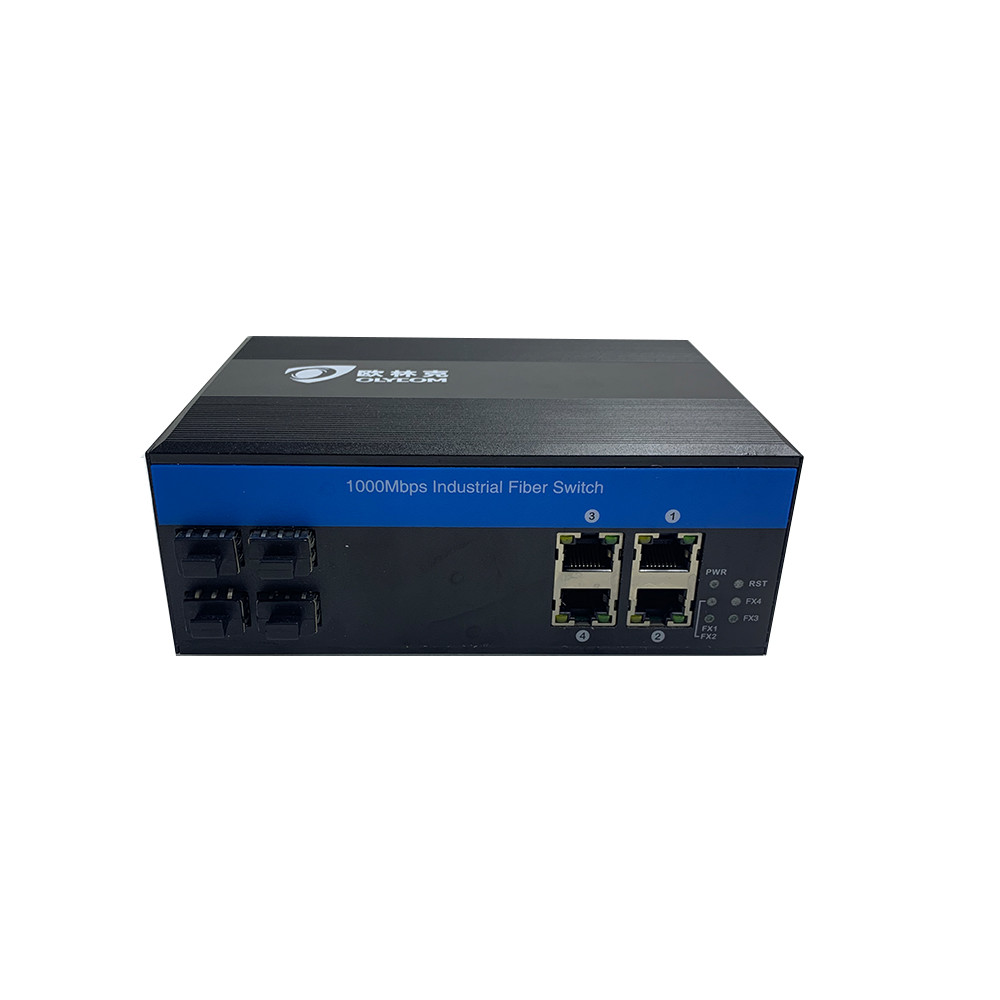

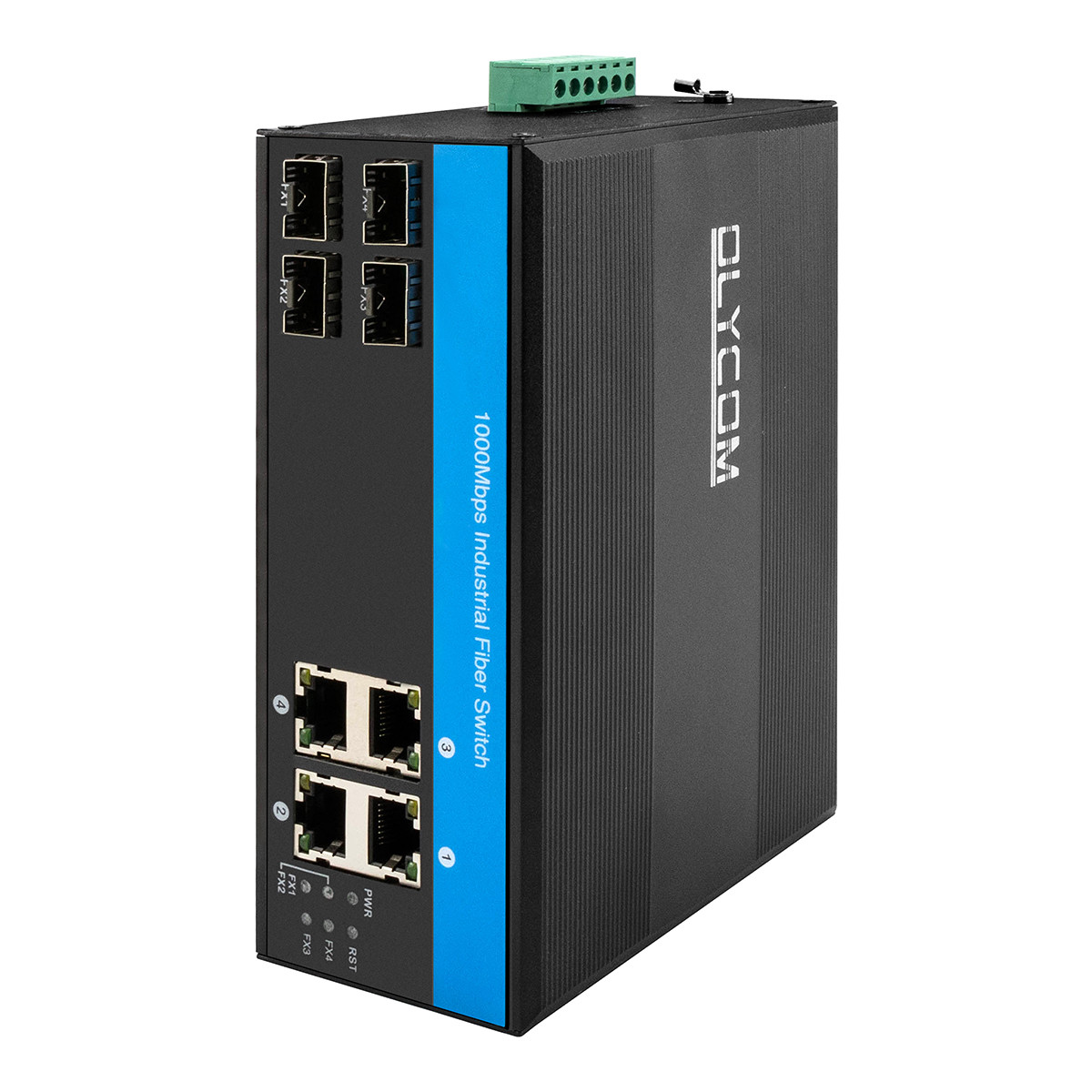

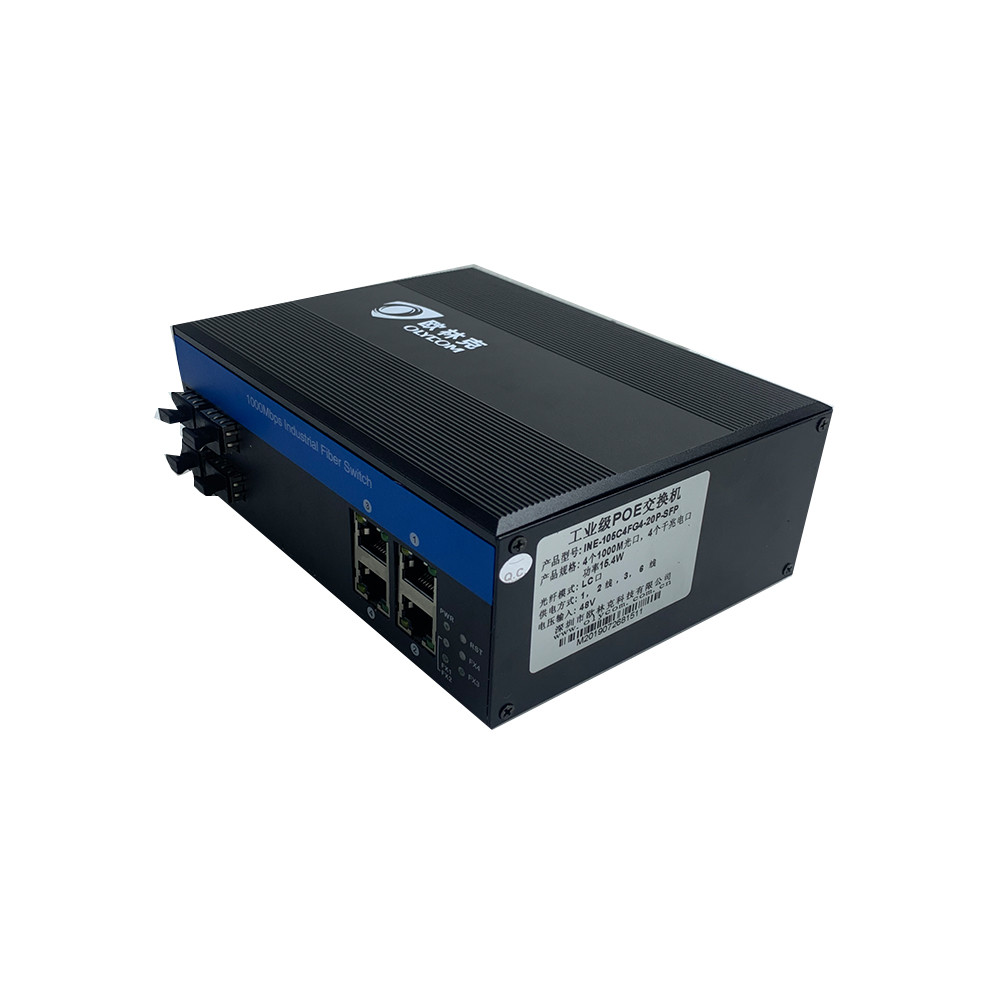

4 Port Poe Switch Industrial Gigabit Network Switch Auto MDI/MDIX

Introduction

IM-PS444GE is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 85 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af power on to 1 ~ 4 RJ45 ports
  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 4 x 1000Mbps SFP fiber port
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c


Specification

Product Name 4 Port Poe Switch
Model No. IM-PS444GE
Port

4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
4 x10/100/1000M UTP RJ45 WITH PoE

4 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

Switching features

Transmission mode: storage and forward
System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W (port 1~6)
(802.3at standards required special instructions)

Environment

Working temperature:-40°~ 85°C
Storage temperature:-40°~ 85°C
Working humidity:10%~90%,non-condensing
Storage humidity:10%~95%,non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4

Safety

CE Mark, commercial
CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell
Safety class: IP44
Dimension:158 x 114.8 x 60mm

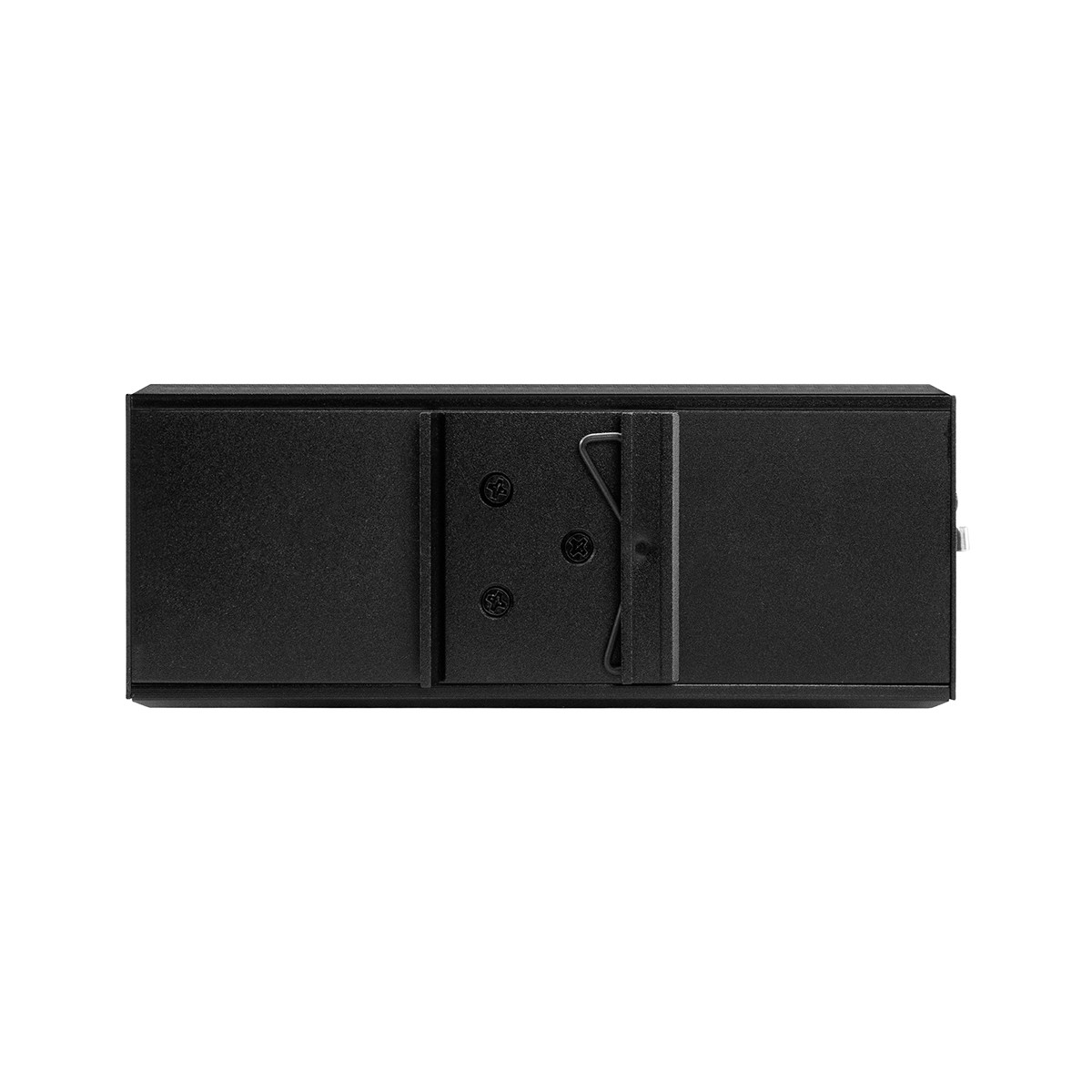

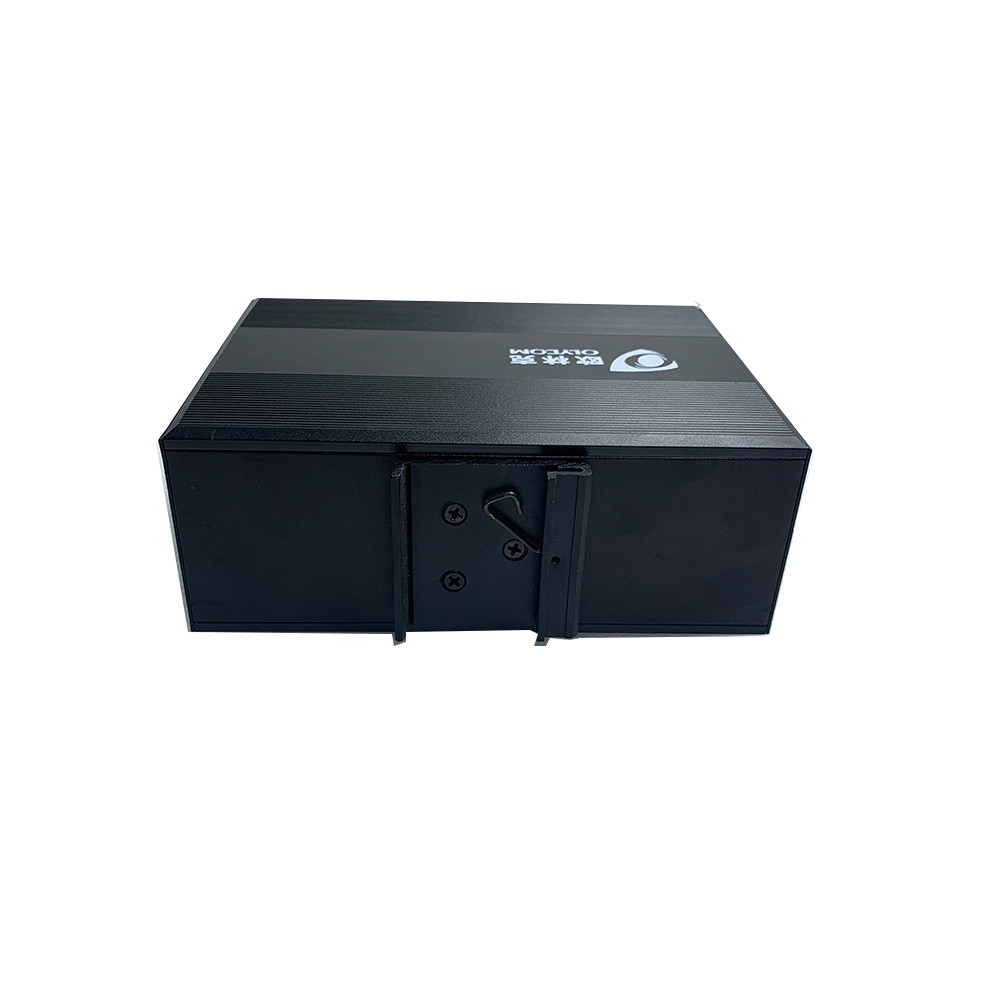

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 5 years repairing



FAQ

Q: What can you buy from us?

A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver



Q: How can I place an order?

A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email/phone, in case of any delays.



Q: How long is the lead time?

A: Usually 3-5days, but it depends on the quantity.



After-sales service

5 years Manufacturer Warranty (Excluding contrived damage or misusage). If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.



Application

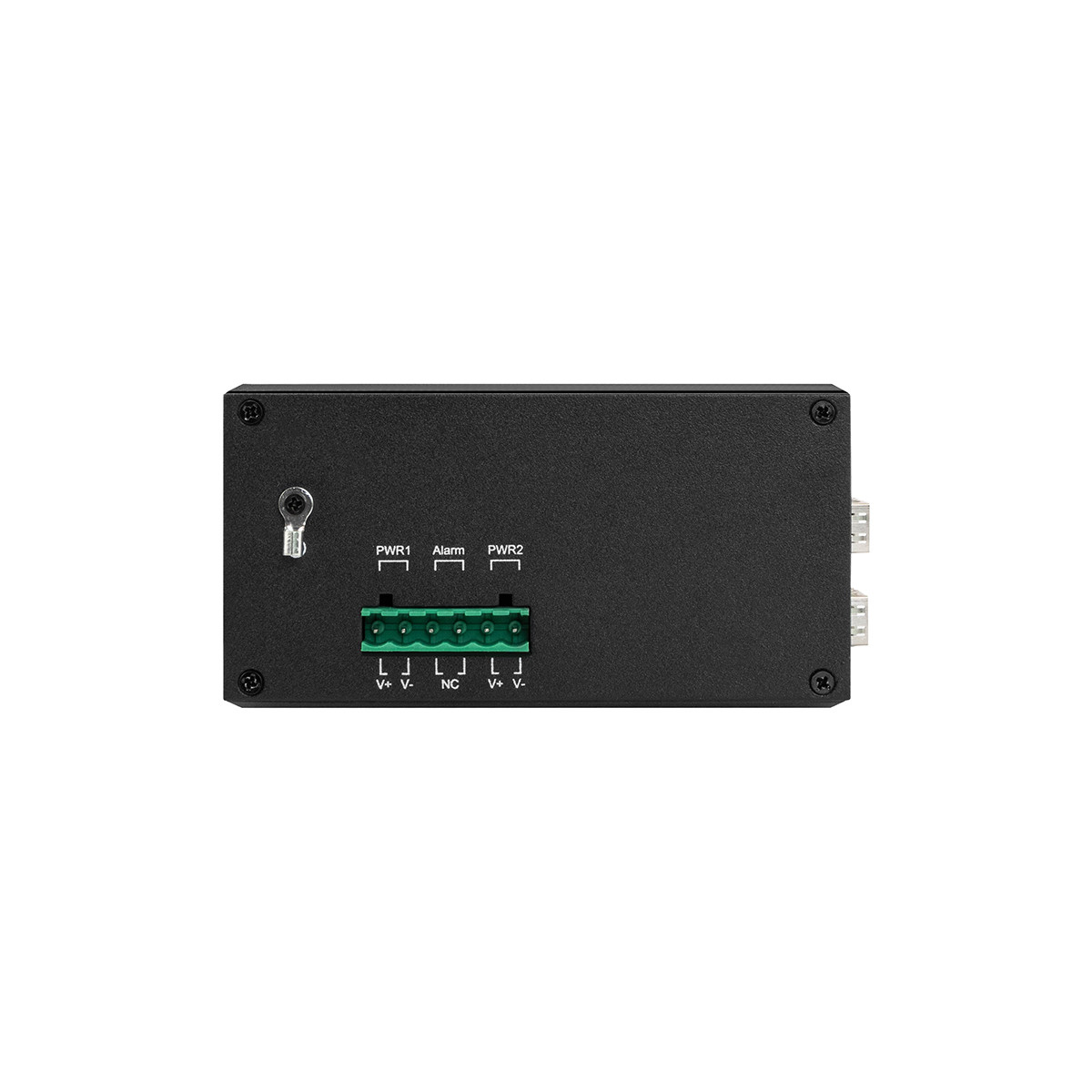

RoHS 4 Port Gigabit Ethernet Switch , Standard Poe Switch Auto MDI/MDIX 0


RoHS 4 Port Gigabit Ethernet Switch , Standard Poe Switch Auto MDI/MDIX 1
