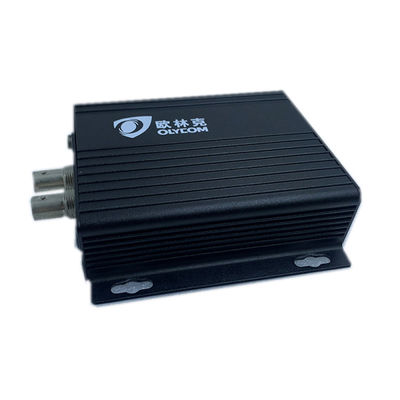

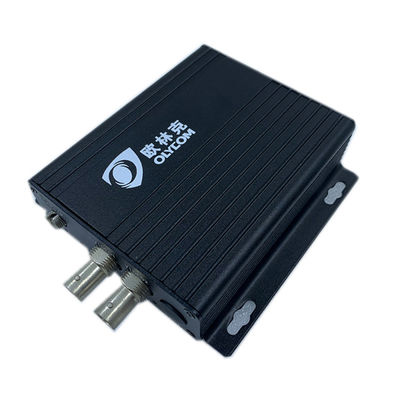

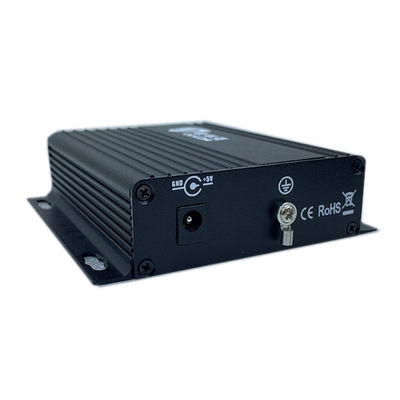

1080P AHD CVI TVI BNC Video Fiber Extender
Product Overview
OM615-2V↑WT/R AHD/TVI/CVI video digital optical converter transmits AHD/HDTVI/HDCVI video on fiber for long distances.
It is auto-adaptive for 720P, 960P, 1080P. Max 2MP
With high reliability, it achieves high-definition video transmission without delay and compression,
It also supports data, audio, contact closure, Ethernet and phone signals.
Features
Bi-di transmission on 1 fiber with WDM, support single mode or multimode fiber
Available as standalone unit and in 3U rack.
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 2ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
Application
Ordering Details
| Item Number Code | |
| OM600 |
OM600-Video Optical Transmitter / Receiver, 615-desk-top standalone, 625-card style 613-mini series, 610-analog series |
| V | Video |
| A | Audio |
| D | Data |
| K | Alarm (I/O, contact closure) |
| P | Telephone |
| E | Ethernet |
| M,W | M-Multi-mode, W-Single mode |
| S,U | S-1310nm, U-1550nm |
| T,R | T -Transmitter, R-Receiver |
| FC,ST,SC,LC | Fiber connector type |
| ↑,↓, ↑↓ | ↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional |
| 1,2,3,… | Digits ahead of signal-quantity of required channel |
| 05, 20, 40… | Digits next to fiber connector-working distance |
| OM615-2V↑WT/R-FC20 | 2ch video Tx, singlemode, single fiber, 20Km, FC connector |
| OM615-2V↑MT/R-FC5 | 2ch video Tx, multi-mode, single fiber, 0.5Km, FC connector |
