Introduction to Gigabit PoE Switch
IM-FP488GE is the 10/100/1000 Mbps industrial POE fiber switch with below features
- comply with IEEE802.3af/at
- power on POE IP cameras through the Ethernet cable
- simple construction
- power range up to 100 meters
- DIN rail installation
- pass through dangerous environmental certification
- comply with FCC and CE standard
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af power on to 1 ~ 8RJ45 ports
- 8x 10/100/1000Mbps Auto-sensing RJ45 ports
- 4x 1000Mbps SFP fiber ports
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Industrial Fiber Switch
| Product Name |
10/100/1000Mbps Industrial PoE Fiber Switch(4F+8TP) |
| Model No. |
IM-FP488GE |
| Port |
4x1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 24Gbps (non-traffic jam)
Forwarding rate: 17.856Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1, FX2, FX3, FX4
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On:PoE is working
Off:PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On:transmission speed is 1000Mbps
Blinking: in transmission
Off:Disconnected or working speed is 10/100Mbps
|

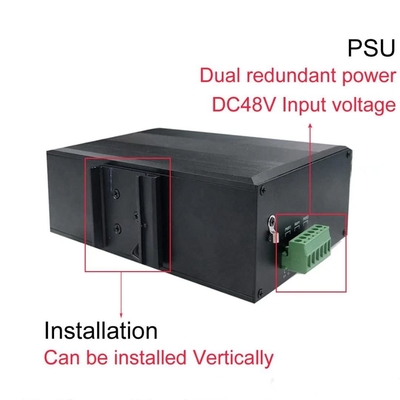

| Power Supply |
PoE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W
PoE output voltage: 48V
Reverse connection: support
|
| PoE Wiring |
1/2 (V+), 3/6 (V-) |
| Environment |

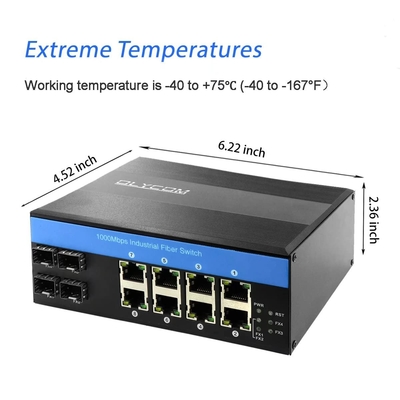

Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Packaging Details
1. One product, one user manual, and one warranty card are inside one box.
2. 20pcs boxes are in one carton (67*33*47cm)
