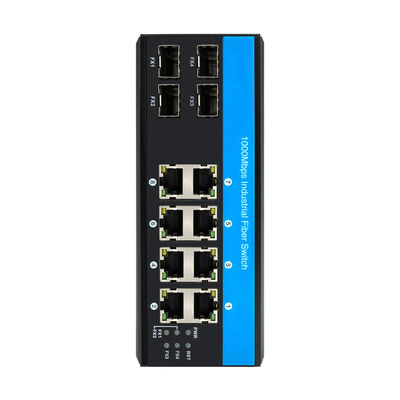

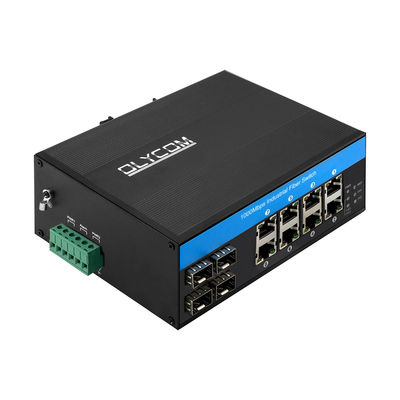

Waterproof 8 Port Network Switch Gigabit Rugged Ethernet Switch With 4 Fiber Ports

1pc
MOQ
Negotiable
Price
Waterproof 8 Port Network Switch Gigabit Rugged Ethernet Switch With 4 Fiber Ports
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 8 Port Industrial Ethernet Switch
Ethernet Ports: 8*10/100/1000M
Fiber Ports: 4*1G SFP Slots
Feature: Unmanaged, Non-PoE
Safety Class: IP40
Working Temperature: -40~75℃
Condition: 100% Original Brand
OEM: Support
Highlight:

Waterproof 8 Port Network Switch 1000mbps

,

Waterproof Rugged Ethernet Switch 4 Fiber Ports

,

Rugged 8 Port Network Switch 1000mbps
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FS480GE
Document: IM-WP054BGE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: T/T, Paypal
Supply Ability: 6000 per month
Product Description

8 Port Gigabit Industrial Ethernet Switch



Introduction to Industrial Network Switch



IM-FS480GE is Olycom 8 Port Gigabit industrial fiber switch with below features

  • operating temperature -40 ℃ to + 75 ℃
  • support wide voltage dual power input
  • meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail installation
  • pass through dangerous environmental certification
  • comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features of 8 Port Ethernet Switch



  1. 4 x 1000Mbps SFP fiber ports
  2. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Auto MDI/MDIX is Supported
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  7. A store-and-forward switching mechanism
  8. Operating environment temperature: -40 ° ~75 ° c



Specification of Industrial unmanaged switch



Port

4 x 1000M SFP ports

SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500m

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z

IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x

IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Switching features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 24Gbps (non-traffic jam)

Forwarding rate: 17.856Mmps
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs

Power, network, fiber

PWR: Power

FX: Fiber port(1/2/3/4)

Orange: Link/ACT

Green: 1000M Network Speed(off when it is 100Mb/s)
Power supply

Redundant input voltage: DC12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail/Wall mounting

Net weight/Gross weight: 0.75Kg/0.9Kg
Warranty Replacement within 1 year; 3 years repairing



Quality Assurance



  1. We absolutely never use old and refurbished materials.
  2. Always a pre-production sample before mass production;
  3. Have professional engineers check the quality.
  4. All products have passed CE, FCC, ROHS, and other certifications
  5. Always final Inspection before shipment;



Packing List



  • User Manual *1 pc
  • 8 Port Industrial Ethernet Switch *1 pc
  • Warranty Card *1 pc



Application


Waterproof 8 Port Network Switch Gigabit Rugged Ethernet Switch With 4 Fiber Ports 0




Waterproof 8 Port Network Switch Gigabit Rugged Ethernet Switch With 4 Fiber Ports 1

Waterproof 8 Port Network Switch Gigabit Rugged Ethernet Switch With 4 Fiber Ports 2
