Single Fiber WDM Gigabit Ethernet Media Converter
Introduction to Unmanaged Ethernet Converter
This 1010/100/1000 auto-sensing Gigabit single mode single fiber media converter features
flexible swap-ability, same card for standalone units and 19 Inch 2U rack
utilize 1-core optical fiber to extend the physical distance range of typical Ethernet links
10K super data packet transmission
Key Features of Gigabit Media Converter
Same swappable cards for standalone units and 19 inch 2U chassis
Specification of Fiber Optic Converter
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet) IEE802.3z 1000BASE -SX/LX(Gigabit-Ethernet) IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS IEEE802.1d Spanning Tree, IEEE1588V2, IEEE802.3az |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
50/125um fiber cable (5km), 62.5/125um multimode fiber cable (2km) 9/125um singlemode fiber cable (20/40/60/80/100km) |
|
Conversion Mode Delay Time |
Store-and-Forward<10us straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310/1550nm |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 4K |
| Buffer Size | 1.75M |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions | 117mm(W) x 90mm(D) x 28mm(H) |
| Weight | Net weight : 0.18kg, Gross weight : 0.44kg |
Ordering Details of Copper to Fiber Converter
| TA541/2-GE/SC-SX | 10/100/1000M, MM, Single fiber, 5km, SC, 1310/1550nm, standalone, premium casing, external PSU |
| TA541/2-GE/SC-20 | 10/100/1000M, SM, Single fiber, 20km, SC, 1310/1550nm, standalone, premium casing, external PSU |
| TA541/2-GE/SC-40 | 10/100/1000M, SM, Single fiber, 40km, SC, 1310/1550nm, standalone, premium casing, external PSU |
| TA541/2-GE/SC-60 | 10/100/1000M, SM, Single fiber, 60km, SC, 1310/1550nm, standalone, premium casing, external PSU |
| TA541/2-GE/SC-80 | 10/100/1000M, SM, Single fiber, 80km, SC, 1310/1550nm, standalone, premium casing, external PSU |
| TA541/2-GE/SC-100 | 10/100/1000M, SM, Single fiber, 100km, SC, 1310/1550nm, standalone, premium casing, external PSU |

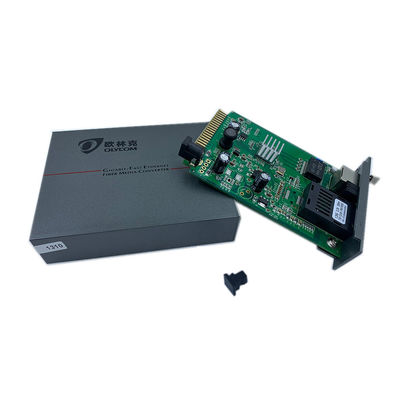

Product Photos of Commercial Media Converter
What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.
Can I visit your factory?
Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.
Please let us know if you have a plan.
What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.
Do you do reselling or distribution?
Yes. Olycom has been in the telecommunication field for about 20 years and gained good reputation in domestic market.
We are actively seeking overseas agents/reseller/distributors to promote our brand and products.
Necessary technical and pricing support will be provided.
