SFP Fiber Optic Ethernet Media Converter Megabit Rack Mountable Unmanaged LFPT DC5V

1 Pcs
MOQ
Negotiable
Price
SFP Fiber Optic Ethernet Media Converter Megabit Rack Mountable Unmanaged LFPT DC5V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fiber To Ethernet Media Converter
Fiber: SFP Slot For SM MM Modules
Voltage: DC Input 5V
Dimension: 11.7cm*9cm*2.8cm
Net Weight: 0.18kg
Buffer Size: 128K
Highlight:

DC5V1A Fiber Optic Ethernet Media Converter

,

128K Unmanaged Fiber Optic Ethernet Media Converter

,

128K Unmanaged black box media converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: TA243-FE
Payment & Shipping Terms
Packaging Details: 1 piece in 1 carton. 0.44KG/pcs
Delivery Time: 3~7 working days
Payment Terms: T/T, Paypal
Supply Ability: 2000Pcs/week
Product Description
10/100Mbps SFP Fiber Ethernet Optic Converter

Overview



  1. Olycom TA243-FE series Megabit Ethernet SFP fiber media converters bridge the gap between copper and fiber infrastructures.
  2. The SFP fiber media converters are designed for maximum convenience for fiber to copper Ethernet conversion applications which require flexibility in transmission rates, working distances, and fiber network types which can be realized by simply changing the hot-plug-and-play SFPs.


Key Features


  • High flexibility with hot plug-and-play SFP
  • 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
  • Unique premium aluminum compact closure
  • Same swappable card for standalone units and 19” 2U systems


Parameters


StandardIEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree
10/100BASE-TSTP or UTP Category 5/5e/6 cable (Max. 100m)
SFPSX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available

Conversion Mode
Delay Time

Store-and-Forward<10us
straight-through<0.9us

Flow controlFull duplex-flow control, Half duplex-back pressure
RJ-45 Port Auto-MDI/MDIX
Fiber ConnectorLC (duplex), LC/SC(simplex)
Wavelength1310/1550nm
Input VoltageDC 5V1A with External power adapter
Power Consumption<2.5W
MTBF50,000 hours
BER<1/1000000000
MAC Address Table1K
Buffer Size128K
Operating Temperature 0℃~50℃
Storage Temperature-40℃~70℃
Storage Humidity5%~90% non-condescending
Dimensions117mm(W) x 90mm(D) x 28mm(H)
WeightNet weight : 0.18kg, Gross weight : 0.44kg


Other similar products


TA243-FE/LXX10/100M, Standalone, fiber media converter, with SFP slot but without SFP, external power supply
TA243-FE/LC-A210/100M, Standalone, fiber media converter, with SFP , multi mode, LC, 2km, external power supply
TA243-FE/LC-2010/100M, Standalone, fiber media converter, with SFP , single mode, LC, 20km, external power supply
TA243-FE/LC-4010/100M, Standalone, fiber media converter, with SFP , single mode, LC, 40km, external power supply
TA243-FE/LC-6010/100M, Standalone, fiber media converter, with SFP , single mode, LC, 60km, external power supply
TA243-FE/LC-8010/100M, Standalone, fiber media converter, with SFP , single mode, LC, 80km, external power supply


FAQ

Do you have any certification?
Yes, our company is ISO9001 certified.
We have CE/FCC/RoHS/E-mark/CCC certificates for our models.

What does the label look like?
There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.
It is available in different languages and contents, so you can add your logo or model name in it.

Do you support OEM&ODM?
Yes, this is our competitive advantage.
There is a detailed introduction in the below link.
https://www.industrialnetworkswitch.com/factory.html

What incoterms do you support?
We are an EXW factory, EXW term is our focus.
Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.

Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please let us know if you need to check.

Can I visit your factory?
Sure. Each year there will be some important clients visiting us for new models and enhancing our business relationship.
Please let us know if you have a plan.

What is your payment term?
For sample orders, full payment before production.
For bulk orders, we could do 30% deposit and balance payment before we ship your order.
The principle rule is full payment before shipment.

Product Photos

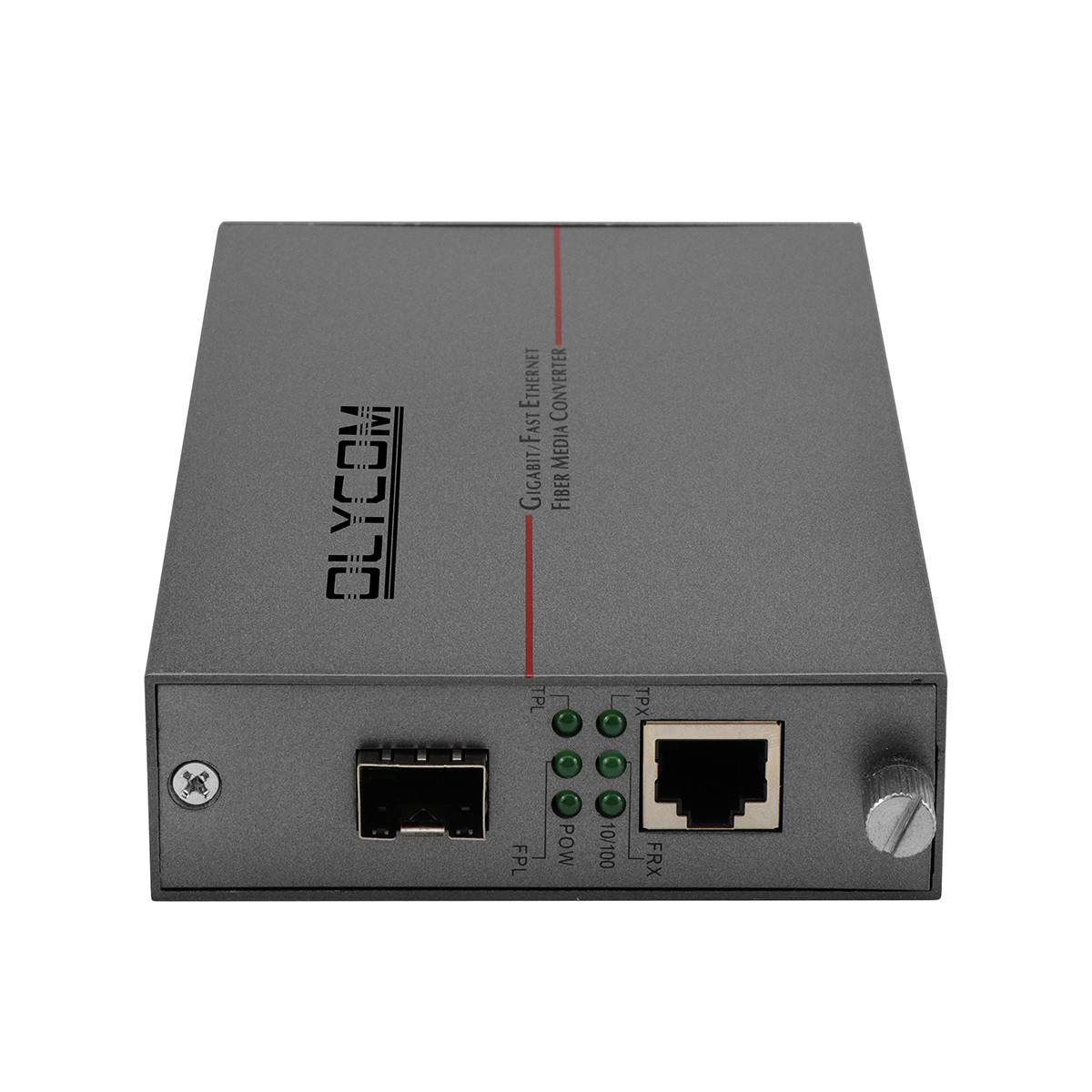

SFP Fiber Optic Ethernet Media Converter Megabit Rack Mountable Unmanaged LFPT DC5V 0

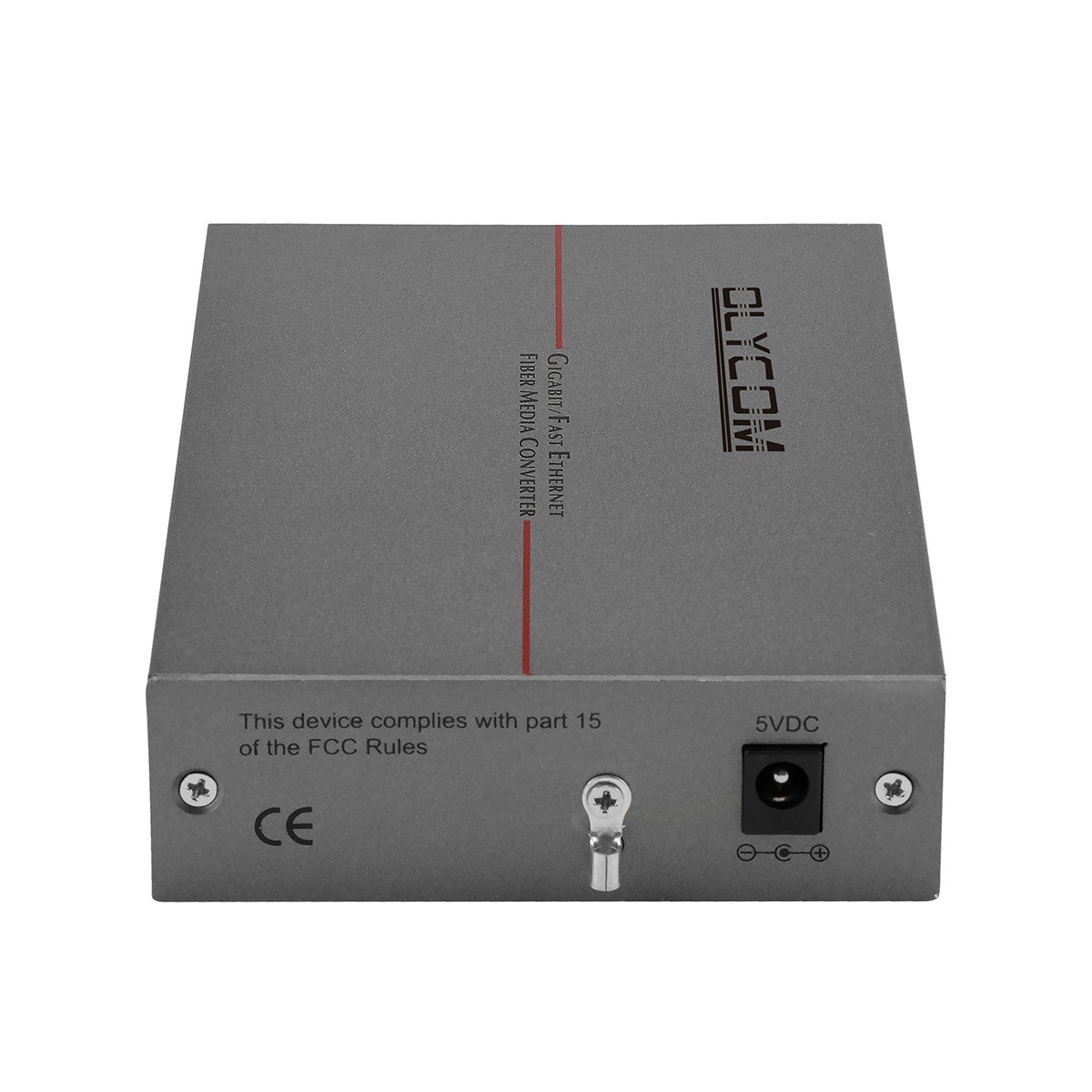

SFP Fiber Optic Ethernet Media Converter Megabit Rack Mountable Unmanaged LFPT DC5V 1

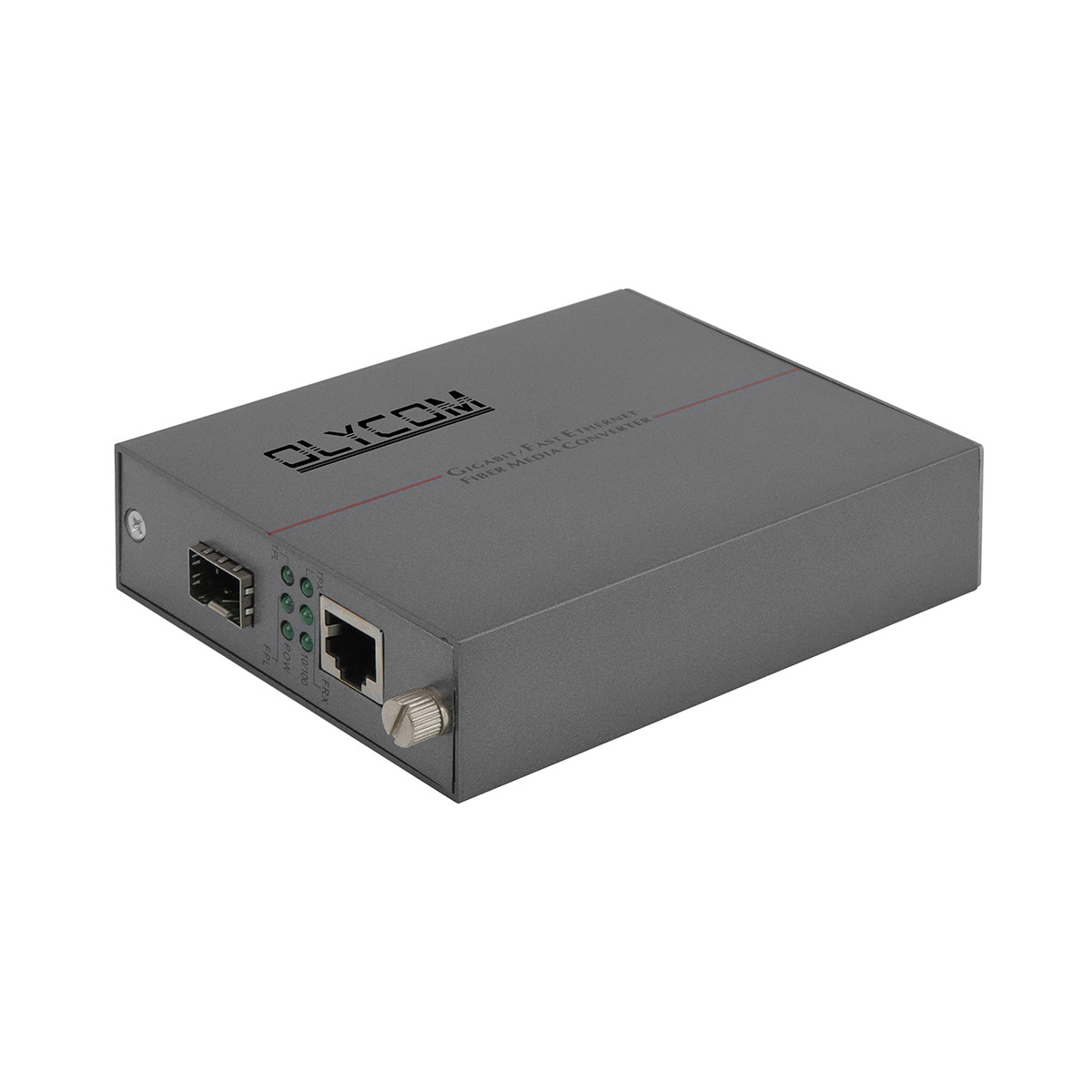

SFP Fiber Optic Ethernet Media Converter Megabit Rack Mountable Unmanaged LFPT DC5V 2
