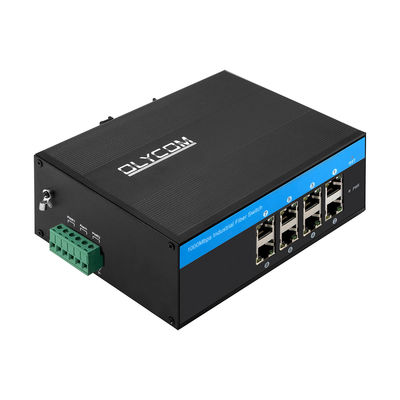

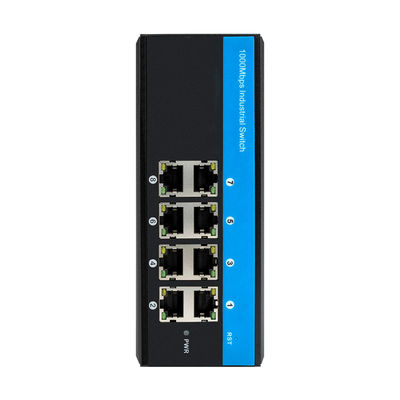

E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged

1pc
MOQ
Negotiable
Price
E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Ethernet Ports: 8
Product Name: Gigabit E-mark Industrial Network Switch
Reverse Connection: Support
System Bandwidth: 16Gbps (non-traffic Jam)
Working Temperature: -40~75℃
Mounting Method: Din-rail Mounting
Highlight:

Unmanaged Gigabit 8 Port Industrial Network Switch

,

8 ports industrial network switch

,

Unmanaged Gigabit industrial switch 8 port
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-WS080GE
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: T/T, PayPal
Supply Ability: 6000 per month
Product Description

E-mark Compliant 8 Port Industrial Network Switch



Key Features of E-mark LAN Switch



  • 8x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C～75°C



Specification of Gigabit Ethernet Switch



Product Name 10/100/1000Mbps Industrial Ethernet Switch(8TP)
Model No. IM-WS080GE
Port 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode: storage and forward

System bandwidth: 16Gbps (non-traffic jam)

Forwarding rate: 23.8Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs Power, network
Power supply

Input voltage: DC 12-52V

No-load power: 5W

Reverse connection: support
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014

E-57 E-mark Compliant
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail/Wall mounting

Net weight/Gross weight: 0.75Kg/0.9Kg
Warranty Replacement within 1 year; 3 years repairing



Application of E-mark Unmanaged Switch



E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 0



Dimension of Industrial LAN Switch



E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 1



Certification



E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 2



FAQ



  • What is the power input?

It supports dual input, typically DC12V or DC24V.



  • Does it have PoE or management function?

No. It's just simple plug-and-play.

But we have PoE model(IM-WP088GE) or Managed model(IM-WP088GW).



  • Can I customize it?

Yes. We support OEM like logo, model name, label, PVC mask and product parts.



  • Where is it most applicable?

Industrial automation, in-vehicle communication.



  • Can I connect it with 10/100M devices?

Yes. Those 8 ports are 10/100/1000M auto-sensing.



E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 3

E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 4

E-Mark Ethernet Switch 8 Port 100/1000M Auto Sensing Industrial Grade Unmanaged 5
