Home /Products/Industrial Network Switch/E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based

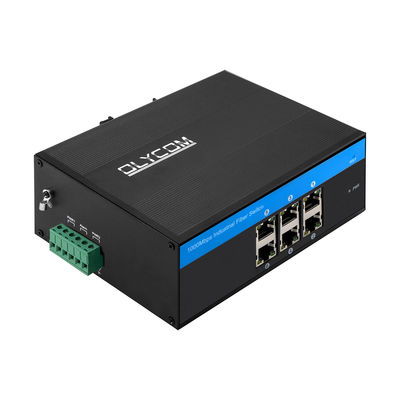

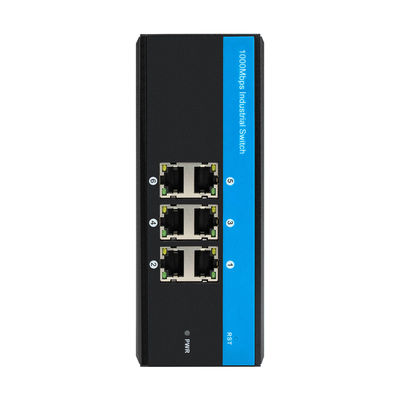

E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based

1pc
MOQ
Negotiable
Price
E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: 6 Port Unmanaged Industrial Ethernet Switch
Port: 6*10/100Mbps RJ45
Feature: Unmanaged, Non-PoE
Certification: E-mark, CE, FCC, ISO9001
Highlight:

Industrial Unmanaged Switch Fiber Optic 6 Port

,

Auto MDIX Industrial Unmanaged Switch

,

Auto MDIX Switch Fiber Optic 6 Port
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-WS060FE
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000 pieces per month
Product Description

6 Port Unmanaged Industrial Ethernet Switch



Introduction to E-mark Ethernet Switch



Olycom 6 Port Unmanaged Ethernet Switch is the 10/100 Mbps industrial switch with below features



  1. 6 x 10/100Mbps Auto-sensing RJ45 ports
  2. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  3. Support Auto MDI/MDIX
  4. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  5. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  6. A store-and-forward switching mechanism
  7. Operating temperature:-40 ° ~75 ° c
  8. Storage temperature: -40°～ 85°C
  9. Input voltage: DC 12-52V



The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Specification of Industrial Network Switch



Product Name 10/100Mbps Industrial Ethernet Switch(6TP)
Model No. IM-WS060FE
Port 6*10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)
Switching Features

Transmission mode: storage and forward

System bandwidth: 1.2Gbps (non-traffic jam)

Forwarding rate: 0.8928Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Network

PWR: Power



Copper orange: Speed indicator

On:Working speed is 1000Mbps

Off:Disconnected or working speed is 10/100Mbps



Copper green: Link/Act indicator

On:transmission is normal

Blinking: in transmission

Off:transmission is NOT normal
Power Supply

Input voltage: DC12-52V

No-load power: 5W

Reverse connection: support
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 158*115*60mm

Mounting method: Din-rail/Wall mounting

Weight: 0.75Kg/0.9Kg(Net/Gross)
Warranty 3 years, lifetime technical support



E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based 0


Application of Vehicle LAN Switch



E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based 1



FAQ



1, What chip is it based?

Olycom: Realtek



2, Can I customize it?

Olycom: Yes. We support OEM services like logo, model name, label, PVC mask and product parts(mounting kit, power terminal block etc.)



3. What is the packing list?

A: There is a device, protective foam, a user manual and a warranty card in the box.



4. How can I get a sample unit for testing?

A: We have many Amazon stores. Please search our brand Olycom or the model names if you know.

You are also welcome to talk with us for a standard purchase.



5. Is it an option to just have PCBs from us?

A: Yes, as a source factory, we have many PCBs in stock, it is fine to supply boards with enclosure.



E-Mark Network Switch 6 Port Unmanaged Industrial Din Rail Megabit Based 2
