3 Years Warranty Industrial Unmanaged POE Switch 2 Fiber SFP To 8 UTP Port

 Gigabit Poe Switch 2 Fiber SFP To 8 UTP Port Industrial Fiber Poe Switch Din Rail

Introduction of Industrial Fiber Poe Switch

IM-FP288GE is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Industrial Fiber Poe Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 8RJ45 ports
3. 8x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 2x 1000Mbps SFP fiber ports
5. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Operating temperature:-40 ° ~75 ° c

13. Storage temperature:-40°～ 85°C

14. Working humidity:10%～90%,non-condensing

15. Storage humidity:10%～95%,non-condensing

16. 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

17. 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

18. Transmission distance: 20Km,40Km,60Km,80Km,100Km

19. Transmission mode: storage and forward

20. System bandwidth:40Gbps (non-traffic jam)

21. LEDs: Power, network, fiber

22. Safety: CE Mark, commercial CE/LVD EN60950

Industry Standards of Industrial Fiber Poe Switch

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4

Mechanical information of Industrial Fiber Poe Switch

Shell: Corrugated metal shell

Safety class: IP44

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Specification of Industrial Fiber Poe Switch

Packaging And Delivery of Industrial Fiber Poe Switch

One 26*19.5*8cm box includes one Gigabit Ethernet Switch, one user manual, and one warranty card.

Lead Time: usually three to five days, it depends on the quantity.

After-sales Service of Industrial Fiber Poe Switch

1. 36 Months Manufacturer Warranty (Excluding contrived damage or misusage). We promise that all the products have been passed the functional test and aging test before delivery.
2. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.

FAQ of Industrial Fiber Poe Switch

Q: What is the MOQ?

A: We do not have MOQ, 1 sample is available.

Q: How long is the lead time?

A: Usually 3-5days. But need to check when you process orders.

Q: Do you have CE, FCC, ROHS?

A: Yes.

Application of Industrial Fiber Poe Switch

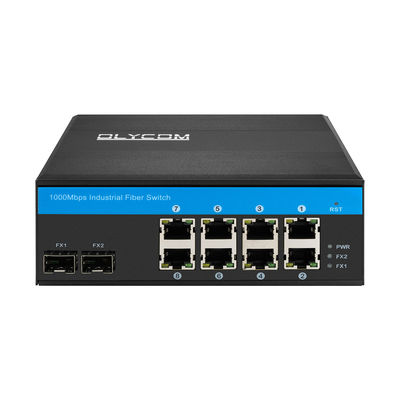

Photo of Industrial Fiber Poe Switch
