10 Port Gigabit Industrial Network Switch SFP Fiber Uplink Din Rail Unmanaged

10 Port Industrial Ethernet Switch

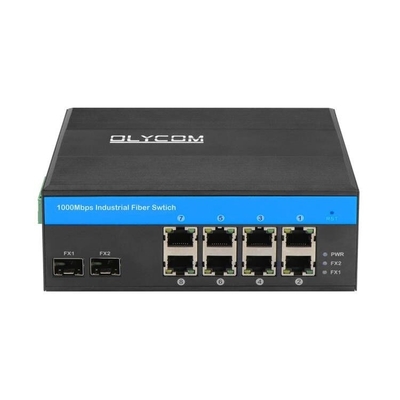

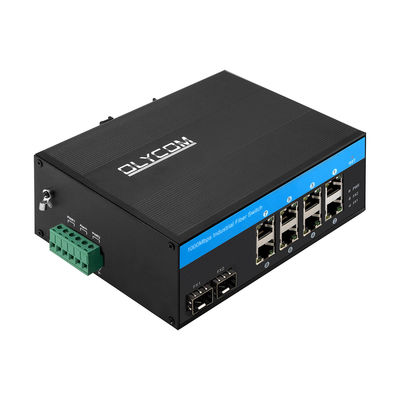

Introduction to Gigabit Fiber Switch

IM-FS280GE is the 10/100/1000 Mbps industrial fiber switch with below key features


1. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
2. 2 x 1000Mbps SFP fiber ports
3. 6kV Ethernet surge protection, adapt to a harsh outdoor environment
4. Support Auto MDI/MDIX
5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Backpressure standard
6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
7. A store-and-forward switching mechanism
8. Operating environment temperature:-40 ° ~75 ° c


Specification



FAQ

Q: Who are we?
A: We are based in Guangdong, China, start from 2003, sell to Western Europe(15.00%),Eastern Europe(15.00%), Southern Europe(10.00%), South America(10.00%), Africa(10.00%), Southeast Asia(10.00%), North America(10.00%), Northern Europe(5.00%), Mid East(5.00%), Oceania(5.00%), Eastern Asia(5.00%). There are total about 101-200 people in our office.

Q: What can you buy from us?
A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver

Q: How can we guarantee the quality?
A: Always a pre-production sample before mass production; Always final Inspection before shipment; We absolutely never use old and refurbished materials.

Industry Standards


• EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
• Traffic Control: NEMA-TS2
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Rail Traffic: EN 50121-4


Mechanical Information

Shell: Corrugated metal shell
Safety class: IP40
Dimension:158 x 114.8 x 60mm
Mounting method: Din-rail mounting



Application
