Black Gigabit Network POE Unmanaged Switch 20Km Transmission Distance

Poe Unmanaged Switch 8 Port Poe Switch With 1 Gigabit SFP Fiber Port

Introduction of Poe Unmanaged Switch

IM-FP188GE is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Poe Unmanaged Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af /at power on to 1 ~ 8RJ45 ports
3. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 1 x 1000Mbps SFP fiber port
5. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard, 30W under at standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Operating temperature:-40 ° ~75 ° c

13. Storage temperature:-40°～ 85°C

14. Working humidity:10%～90%,non-condensing

15. Storage humidity:10%～95%,non-condensing

16. Transmission mode: storage and forward

17. System bandwidth:40Gbps (non-traffic jam)

18. 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

19. 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

Specification of Poe Unmanaged Switch

Industry Standards of Poe Unmanaged Switch

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4

Packing of Poe Unmanaged Switch

1. One product, one user manual, and one warranty card are in one box.

2. 20pcs boxes are in one carton. (67*33*47cm)

Lead Time of Poe Unmanaged Switch

Application of Poe Unmanaged Switch

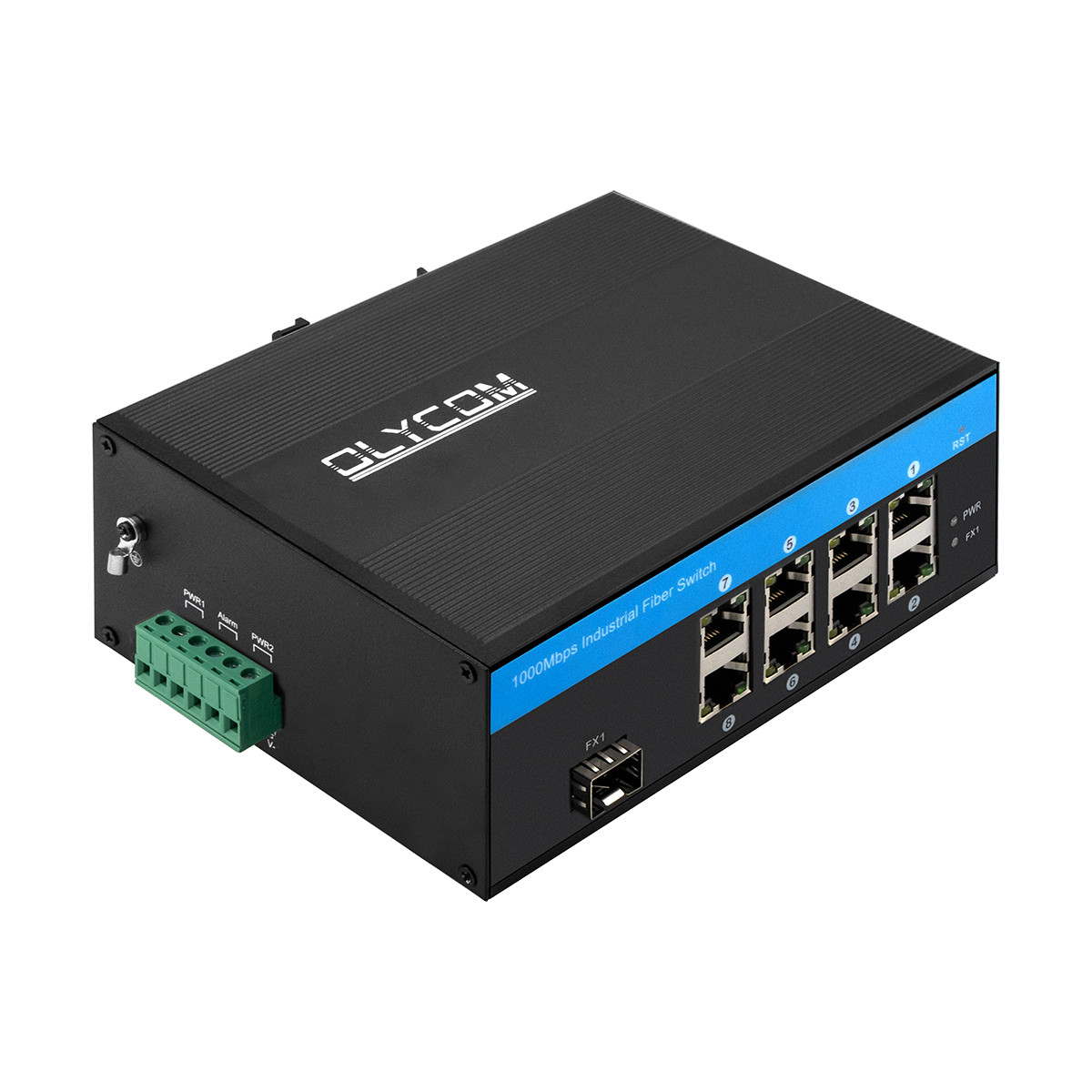

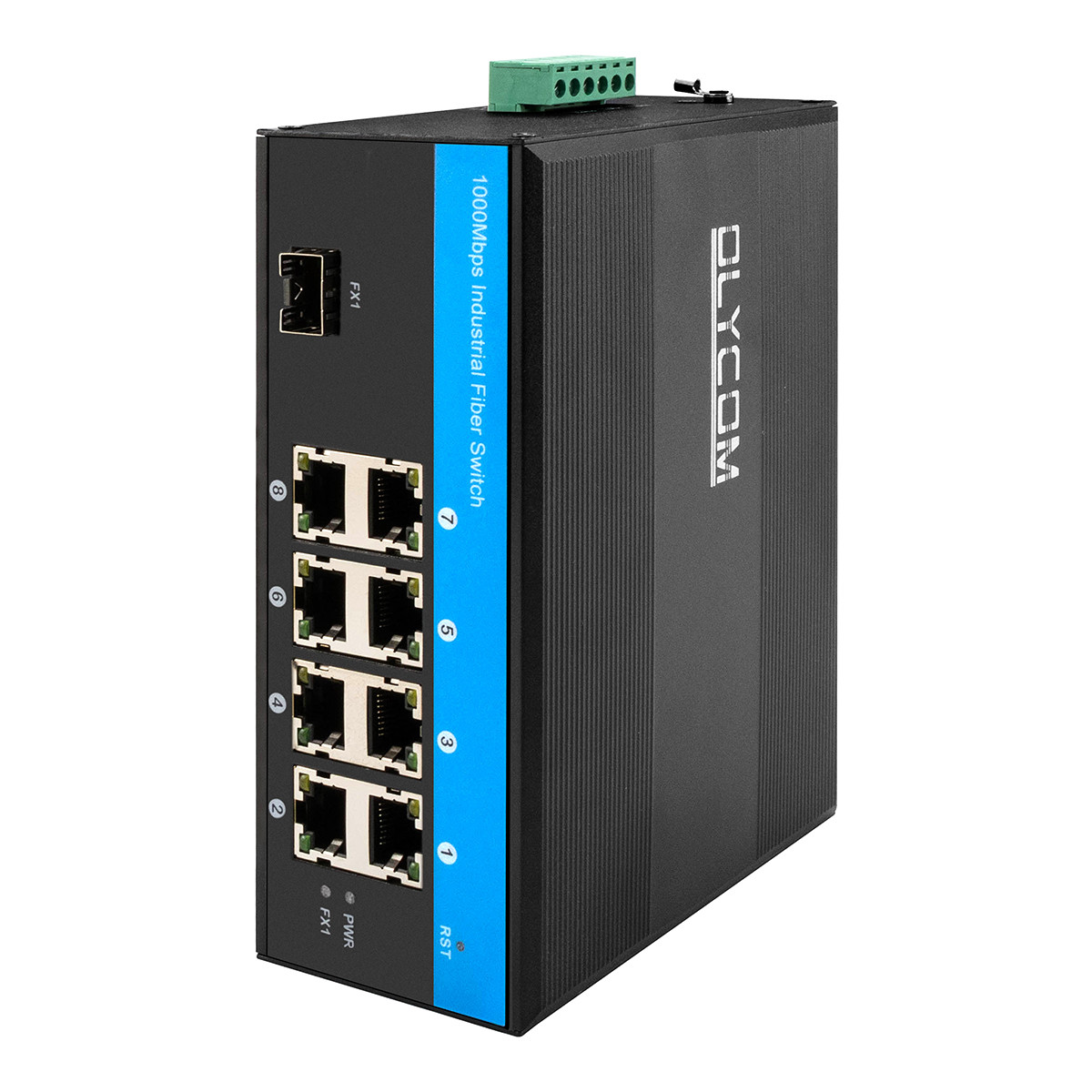

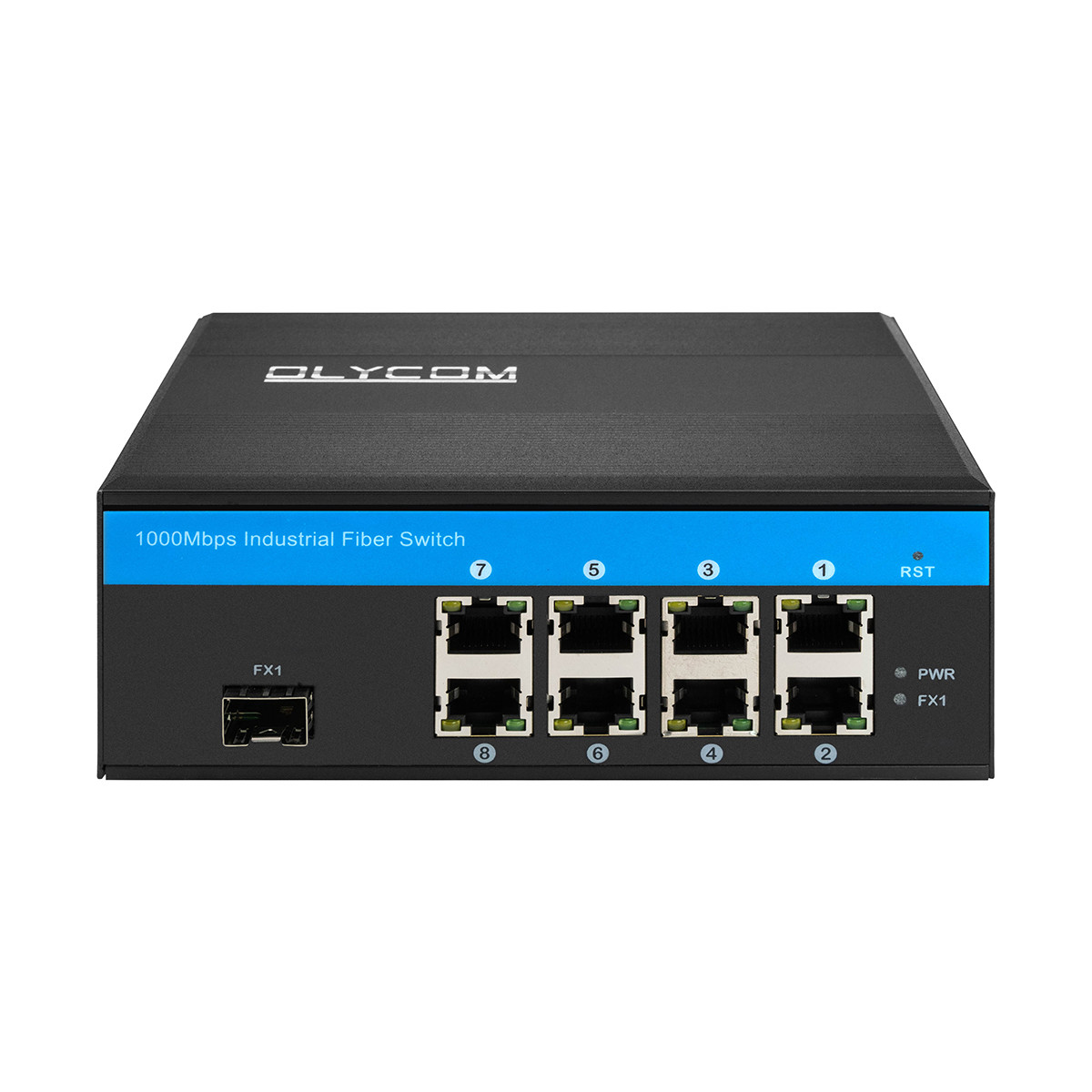

Photo of Poe Unmanaged Switch
