Home /Products/Industrial Network Switch/8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE

8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE

1pc
MOQ
Negotiable
Price
8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port Unmanaged Network Switch
Fiber: 2*100M SFP Slots
Ethernet: 6*10/100Mbps
Feature: Non-PoE, Unmanaged
Certification: CE RoHS FCC
Mounting: DIn Rail Or Wall Mounted
Condition: 100% Original Brand
Products Status: Stock
Highlight:

2 SFP Port Din Rail Mount Ethernet Switch

,

Industrial Grade Din Rail Mount Ethernet Switch

,

Outdoor Industrial Grade switch 2 SFP Port
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FS260FE
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 4000pcs per month
Product Description

8 Port Industrial Network Switch 10/100 Mbps

Introduction to 8 Port Ethernet Switch


  • 2x100M SFP fiber ports
  • 6x10/100Mbps Auto-sensing RJ45
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • DIN rail or Wall installation
  • Comply with FCC and CE standards
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C～75°C


Specification of Industrial Fiber Switch


Model No.IM-FS260FE
Port

2 x 100Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm,40~120Km
MM: 1310nm, 2Km
6x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward
System bandwidth: 1.6Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDsPower, network, fiber
Power supply

Input voltage: DC12-52V, typically DC12V/DC24V/DC48V
No-load power: 5W
Reverse connection: support

Environment

Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing

Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014

Mechanical information

Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)

Warranty

3 years, lifetime technical support


Packaging Details of 8 Port LAN switch

1. One product, one user manual, and one warranty card are inside one box.
2. 20pcs boxes are in one carton (67*33*47cm)

FAQ of Rugged Ethernet Switch

Q: Are you the real factory?
A: Yes, we are the real factory with 20 years of history.

Q: How long is the lead time?
A: Usually 3-5 working days, but it depends on the quantity.

Q: What is the warranty time?
A: 3 years for this product.

Application of Fiber Optic Switch
8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE 0

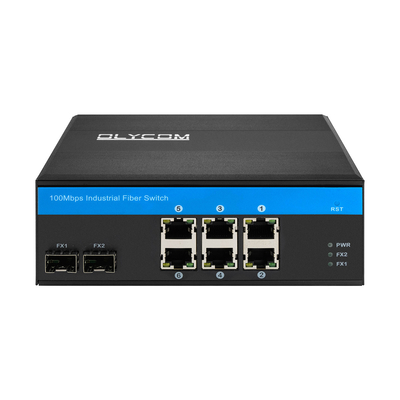

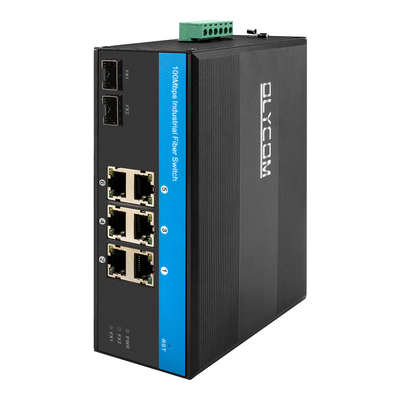

Photo of Unmanaged Switch 8 Port
8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE 1
8 Port Fast Ethernet Industrial Network Switch Unmanaged SFP Fiber Din Rail Mounted CE 2
