IP40 POE Network Switch Gigabit Ethernet For Harsh Outdoor Environment

IP40 POE Network Switch Gigabit Ethernet For Harsh Outdoor Environment
Features Gallery Product Description Request A Quote
Product Name: POE Switch Gigabit Ethernet 6 Port Switch
POE Port: 1~6 Port
Fiber Port: 1 * SFP Port
Function: POE AT / AF
Warranty: 3 Years
Weight: 0.78kg
High Light:

IP44 POE Network Switch


Harsh Outdoor Environment POE Network Switch


IP44 gigabit ethernet switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP166GE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability: 600 per month
Product Description

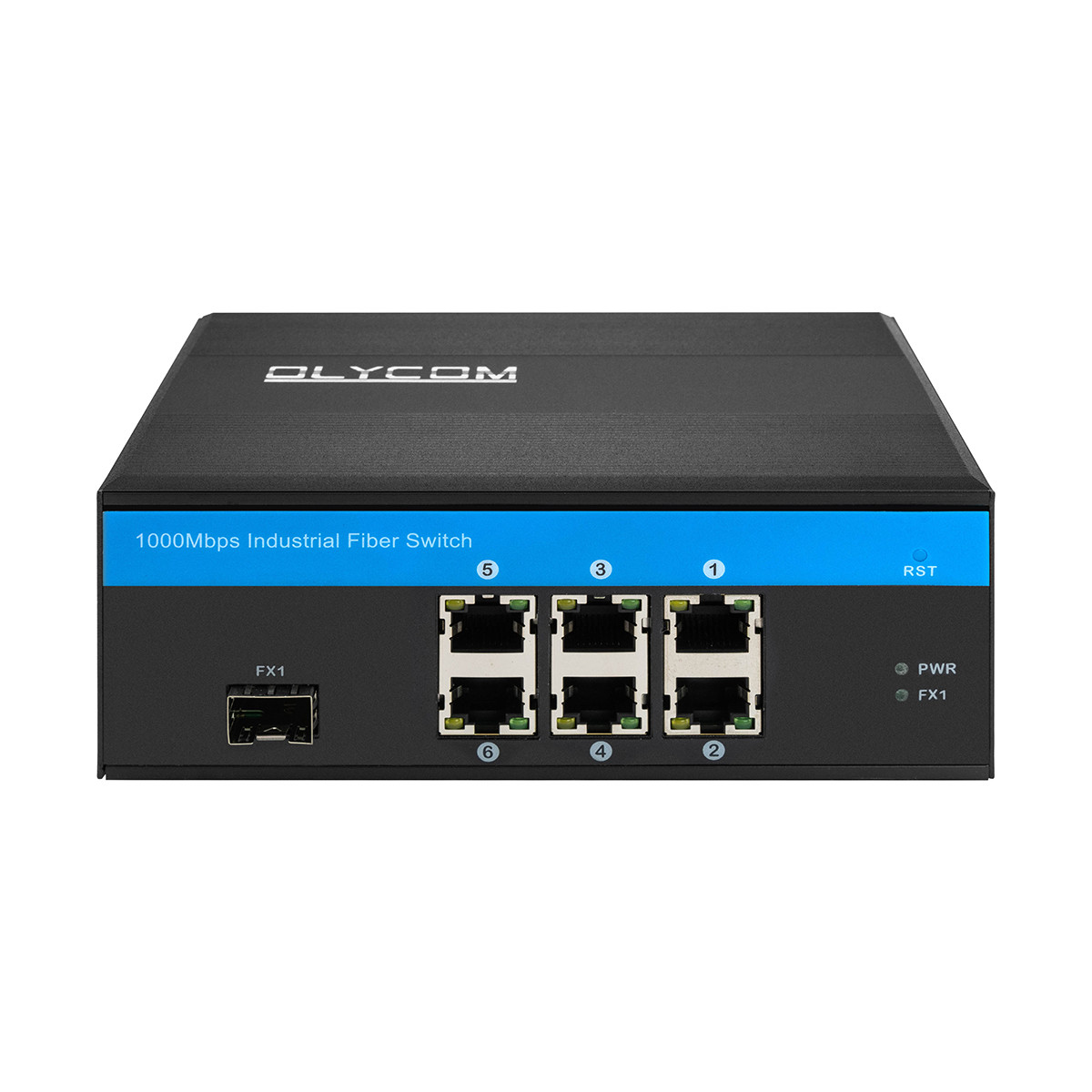

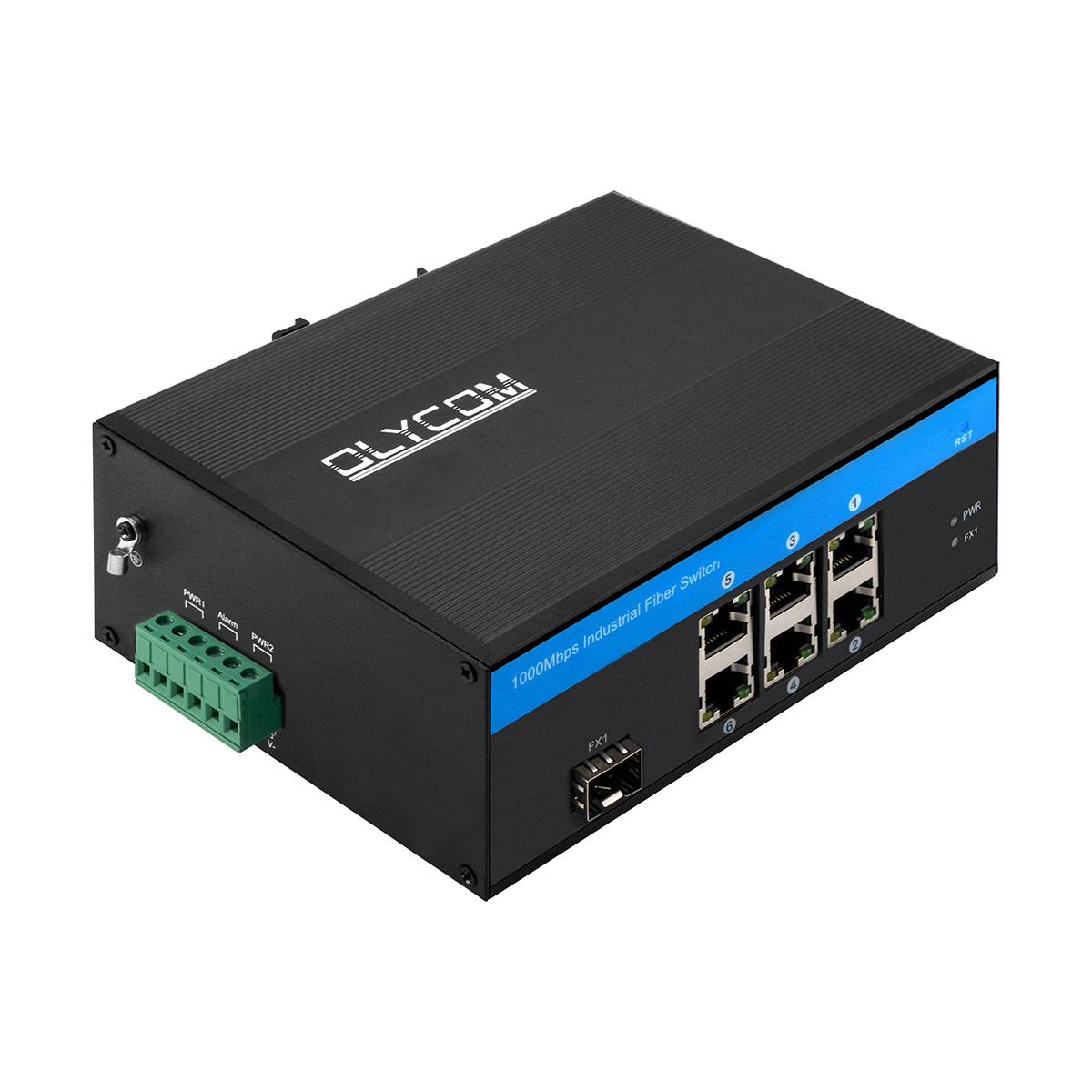

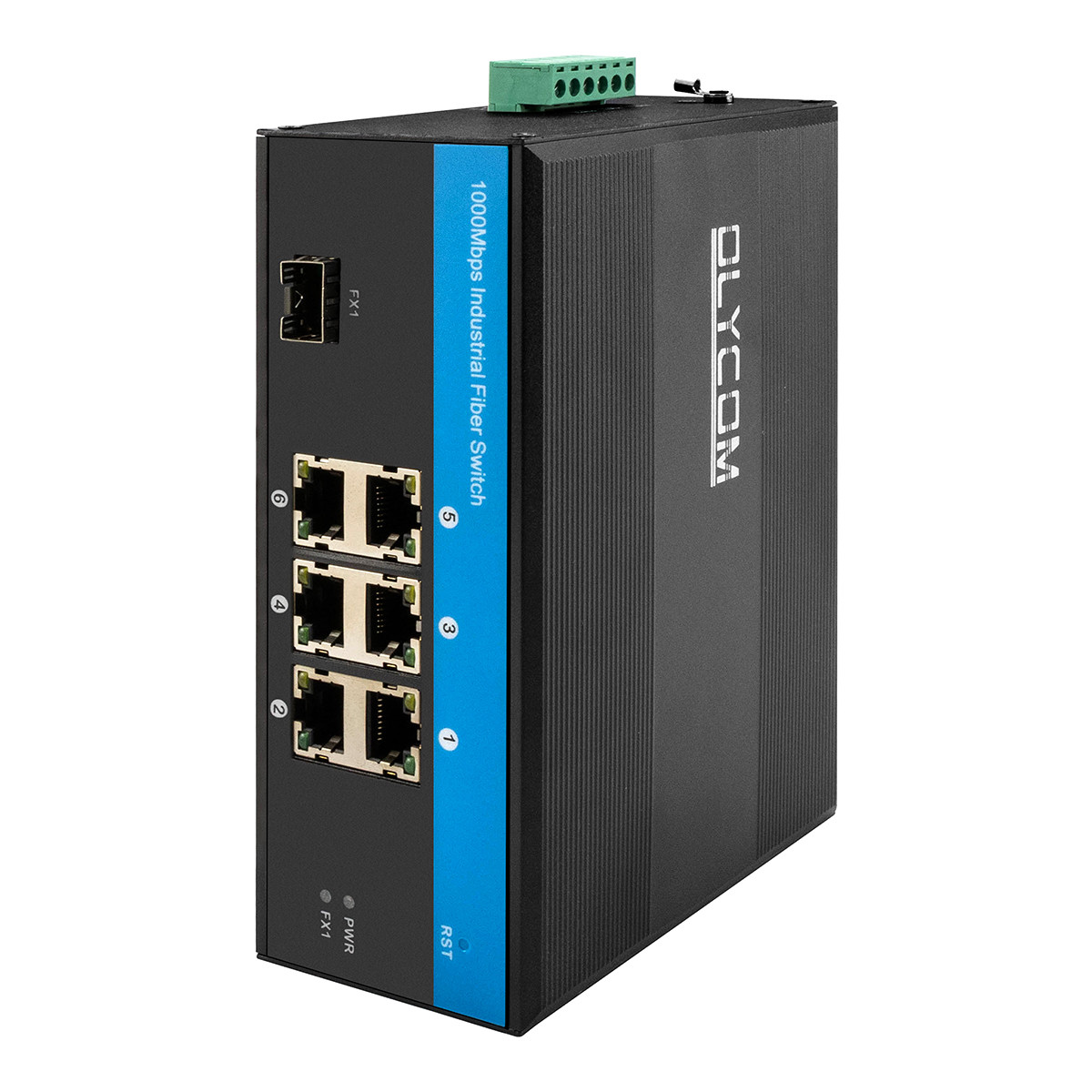

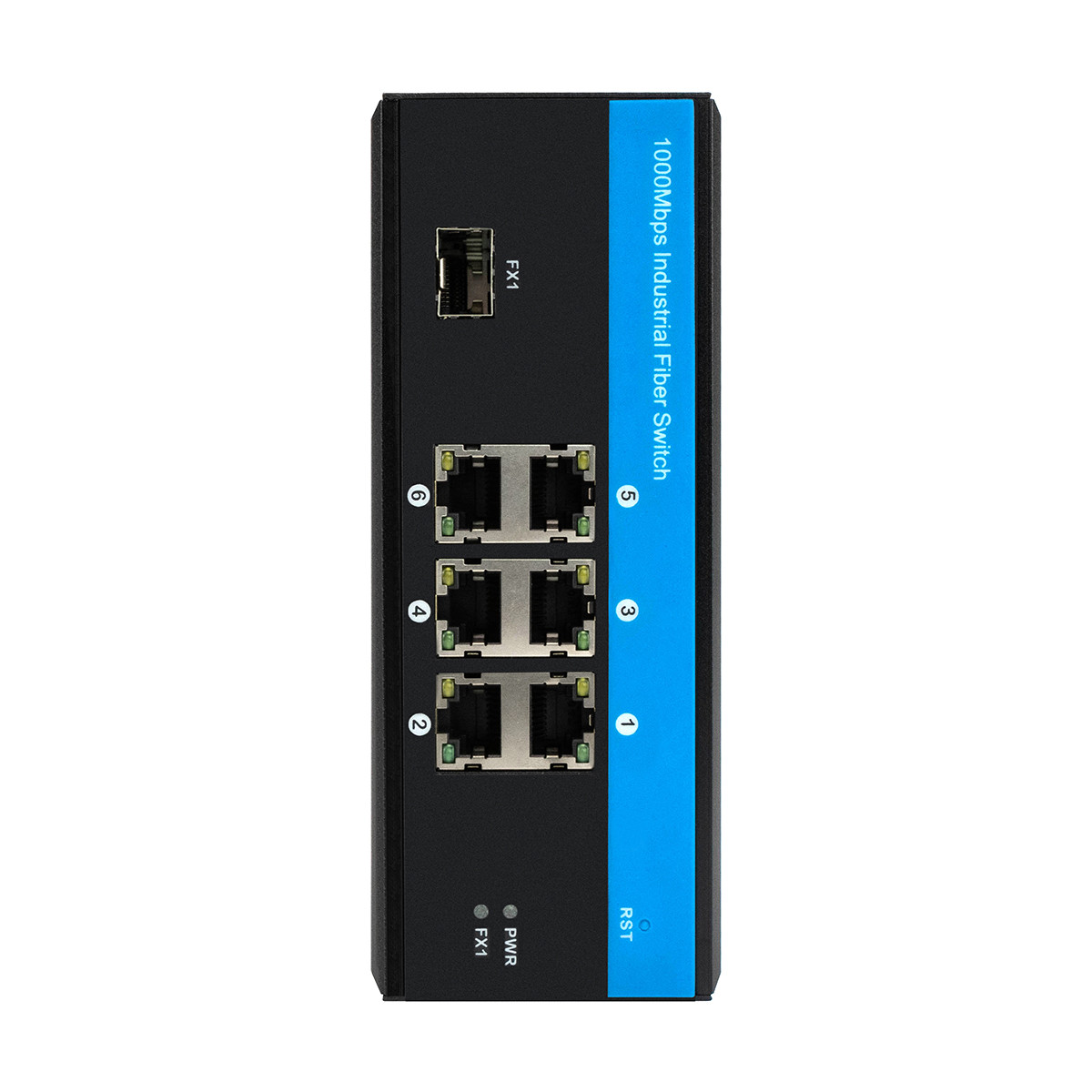

POE Switch Gigabit Ethernet 6 Port Switch For Harsh Outdoor Environment


IM-FP166GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Product Name 10/100/1000Mbps POE Switch Industrial Ethernet Switch (1F+6TP)
Model No. IM-FP166GE

1 x 100Mpbs SFP port




6x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~6)

(802.3at standards required special instructions)


Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing


CE Mark, commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension:158 x 114.8 x 60mm

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 5 years repairing


Key Features

  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af power on to 1 ~ 6 RJ45 ports
  3. 4KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 100Base-T and IEEE 802.3u 1000Base-TX compliant
  7. Max power to15.4W under af standard, 30W under at standard to each PoE port
  8. Detect the PoE models of electrical equipments.
  9. A store-and-forward switching mechanism


Industry Standards

  • EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
  • EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
  • Traffic Control: NEMA-TS2
  • Vibration:IEC 60068-2-6
  • Freefall:IEC 60068-2-32
  • Shock:IEC 60068-2-27
  • Rail Traffic: EN 50121-4



Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production;
Always final Inspection before shipment.


Q: Why should you buy from us, not from other suppliers?

A: Shenzhen Olycom Technology Co., Ltd. is a manufacturer of fiber optic since 2003. We have passed the HIGH-TECH and ISO9001. There are many domestic and abroad agents which help us to have a good market share.


Q: What services can we provide?

A: Accepted Delivery Terms: EXW;
Accepted Payment Currency:USD,EUR,JPY,CAD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Russian.
