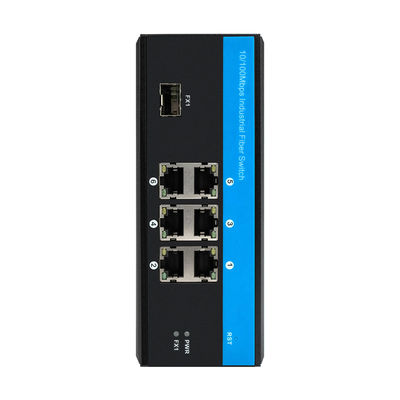

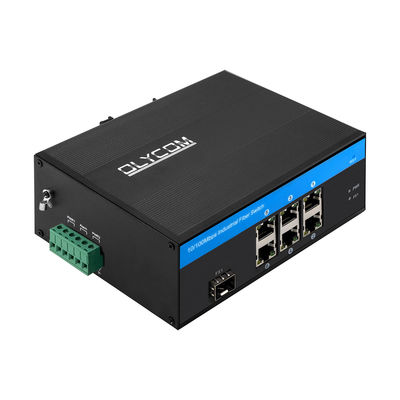

6 Port Industrial Unmanaged Ethernet Switch 10/100Mbps
Introduction of 6 Port Network Switch
IM-FS160FE is the 10/100 Mbps industrial fiber switch, operating temperature -40 ℃ to + 75 ℃ featuring
- support wide voltage dual power input
- meet IP40 protection degree and EMC industrial grade requirements
- DIN rail installation
- pass through dangerous environmental certification and comply with FCC and CE standards
The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Fast Ethernet Switch
- 6 x 10/100Mbps Auto-sensing RJ45 ports
- 1 x 100Mbps fixed fiber port
- LEDs: Power, network, fiber
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- A store-and-forward switching mechanism
Specification of Unmanaged Fiber Switch
| Product Name |
10/100Mbps Industrial Fiber Switch (1F+6TP) |
| Model No. |
IM-FS160FE |
| Port |
1x 100Mpbs SFP port
SM: 1310nm/1550nm, 20Km
1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500m
6x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth: 1.4Gbps (non-traffic jam)
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
Input voltage: DC 12-52V
No-load power: 5W
Reverse connection: support
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm
Mounting method: Din-rail/Wall mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Packaging Details of Industrial Fiber Switch
1. One product, one user manual, and one warranty card are inside one box.
2. 20pcs boxes are in one carton (67*33*47cm)
Application
Q&A of Industrial Unmanaged Switch
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~57V.
All the models support redundant input.
2. What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.
3. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
4. Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
