FCC Fiber Optic Poe Switch 6 Ports , Durable Metal Shell Din Rail Mount Network Switch

10/100Mbps 6 POE Port Fiber Optic Poe Switch Din Rail Mounting Durable Metal Case

Introduction of Fiber Optic Poe Switch

IM-FP166FE is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 75 ℃, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Fiber Optic Poe Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af power on to 1 ~ 6 RJ45 ports
3. 6 x 10/100Mbps Auto-sensing RJ45 ports
4. 1 x 100Mbps SFP fiber port
5. 6KV Ethernet surge protection, ad
6. apt to a harsh outdoor environment
7. Support Auto MDI/MDIX
8. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
9. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
10. Max power to15.4W under af standard, 30W under at standard to each PoE port
11. Detect the PoE models of electrical equipments.
12. A store-and-forward switching mechanism
13. Operating environment temperature:-40 ° ~75 ° c

14. Storage temperature:-40°～ 85°C

15. Working humidity:10%～90%,non-condensing

16. Storage humidity:10%～95%,non-condensing

17. Transmission mode: storage and forward

18. System bandwidth:40Gbps (non-traffic jam)

19. 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

20. 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

21. Transmission distance: 20Km,40Km,60Km,80Km,100Km

22. LEDs: Power, network, fiber

Specification of Fiber Optic Poe Switch

Packaging Details of Fiber Optic Poe Switch

Shipping Dimension for 1pc: 26*19.5*8cm;
One unit device and one user manual are inside one box, sealed and well protected.

44pcs /carton, the carton dimension is 67*33*47cm

Application of Fiber Optic Poe Switch

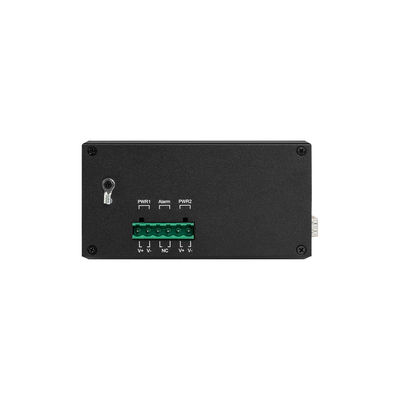

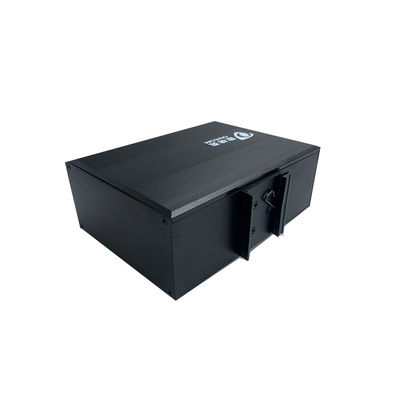

Photo of Fiber Optic Poe Switch
