Rugged Media Converter Poe 15.4W 30W 10/100m Fast Ethernet Unmanaged Ce Din Rail

1 x 100Mpbs fiber port

SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km

1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

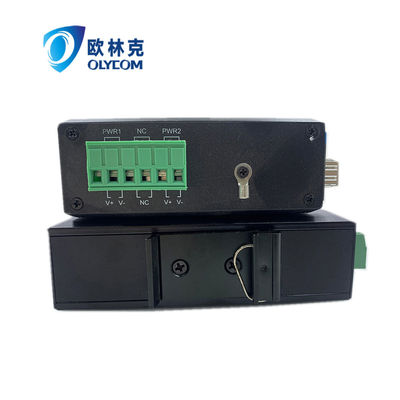

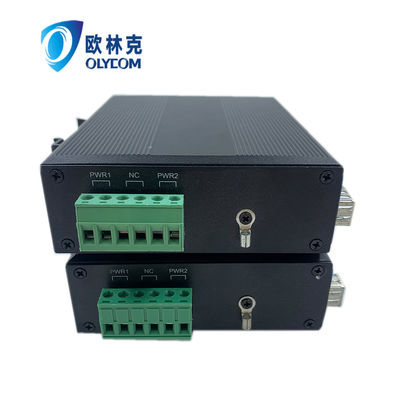

1x6-PIN Power Terminal Block

Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 0.4Gbps (non-traffic jam)

MAC: 4K

Packet buffer size: 1.75Mb

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

Fiber port transmission distance: 20Km,40Km,60Km,80Km,100Km

Power, Fiber, Network, PoE

PWR: Power

Fiber: FX1, FX2

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)

Copper orange: PoE indicator

On:PoE is working

Off:PoE is not working or this is Non-PoE device

Copper green: Speed indicator

On:transmission speed is 1000Mbps

Blinking: in transmission

Off:Disconnected or working speed is 10/100Mbps

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W
Total budget: 30W

PoE output voltage: 48V

Reverse connection: support

1/2 (V+), 3/6 (V-) PoE Wiring

Working temperature:-40°～ 75°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%, non-condensing

Storage humidity:10%～95%, non-condensing

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4

CE Mark, commercial

CE/LVD EN60950

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 114 x 93 x 35mm

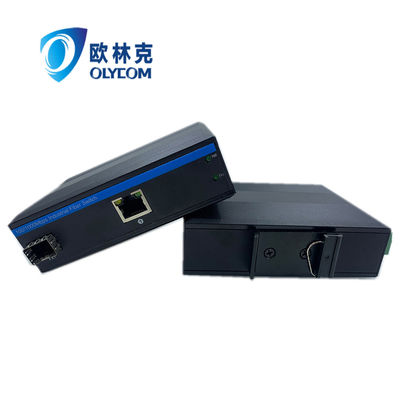

Mounting method: Din-rail mounting
