10/100Mbps Fast Ethernet PoE Fiber Optic Media Converter.
Key Features of 100Mbps Media Converter
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 RJ45 port
- 1 x 10/100Mbps Auto-sensing RJ45 port
- 1 x 100Mbps SFP fiber port
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating temperature: -40 ° ~75 ° c
Specification of Fast Ethernet Media Converter
| Product Name |
10/100Mbps Industrial PoE Fiber Media Converter (1F+1TP) |
| Model No. |
IM-PC111FE |
| Port |
1 x 100Mpbs SFP port
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km
1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)
1x6-PIN Power Terminal Block
|
|
Protocol
|
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth: 0.4Gbps (non-traffic jam)
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1, FX2
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power supply |
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 15.4W/30W (port 1)
|
| Environment |
Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Safety |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support
|
Application of Unmanaged PoE Media Converter
Packing List
- 1pc 100Mbps PoE Media Converter
- 1pc User Manual
- 1pc Warranty Card
Remark
Accessories(optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
FAQ
Q: What We Do
A: We manufacture and market fiber optic connectivity devices.
We provide solutions and services of fiber to copper media conversion, Ethernet networking, and CCTV video surveillance.
We serve with precisely engineered equipment and professional dedicated care whether you are in the business of telecom or CCTV, reselling, or project contracting.
Q: What can you buy from us?
A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver
Q: What about the payment terms?
A: We can accept PayPal, Western Union, T/T and etc.
Q: What is your MOQ?
A: 1 piece.

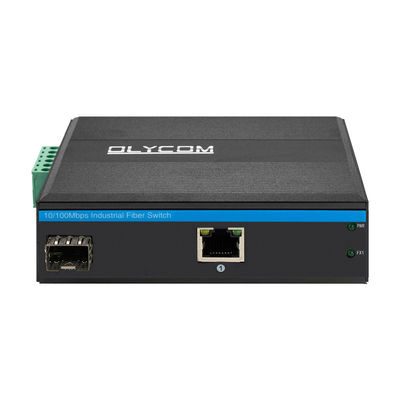

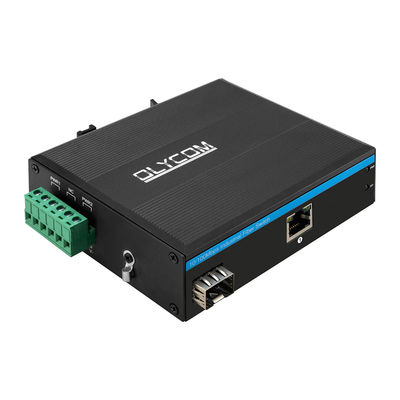

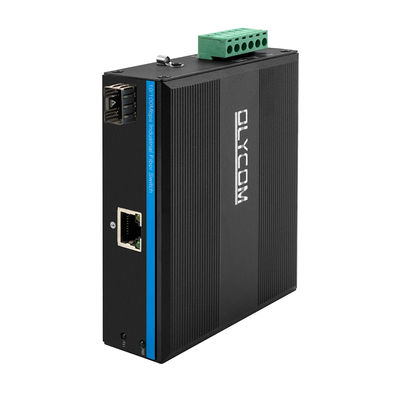

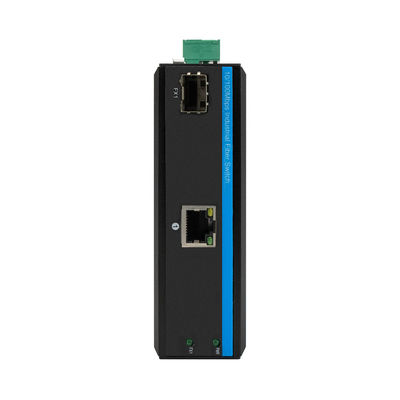

Photos
