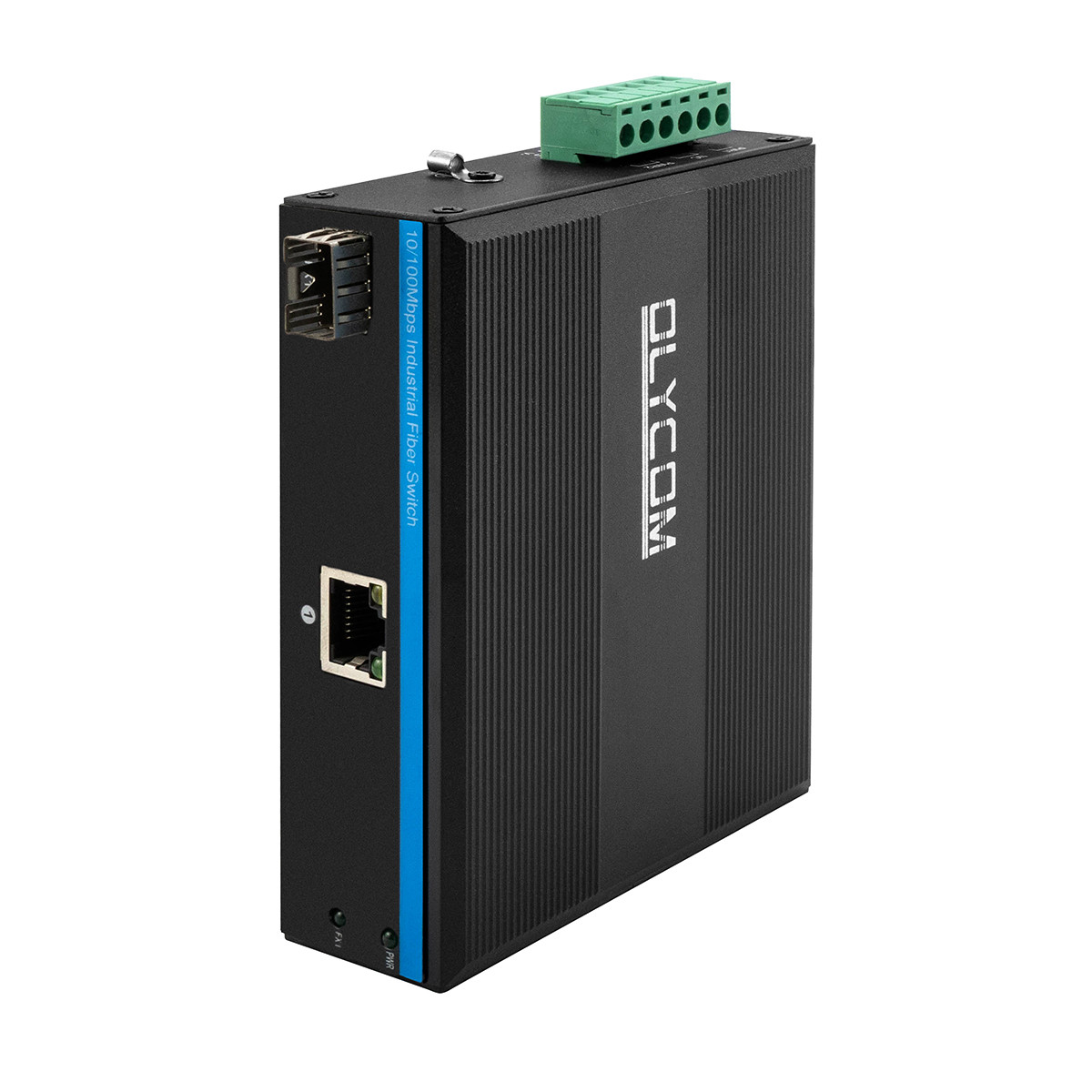

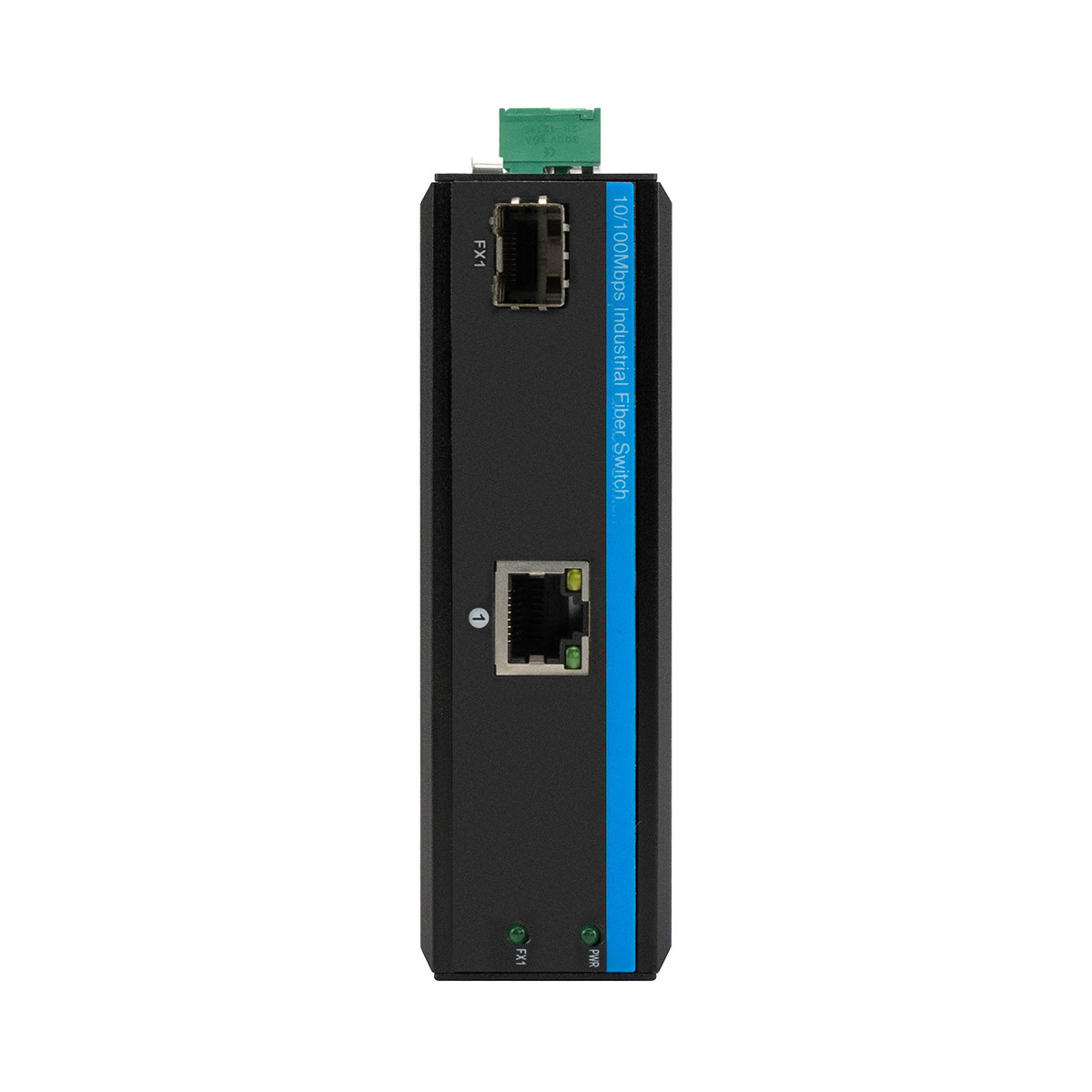

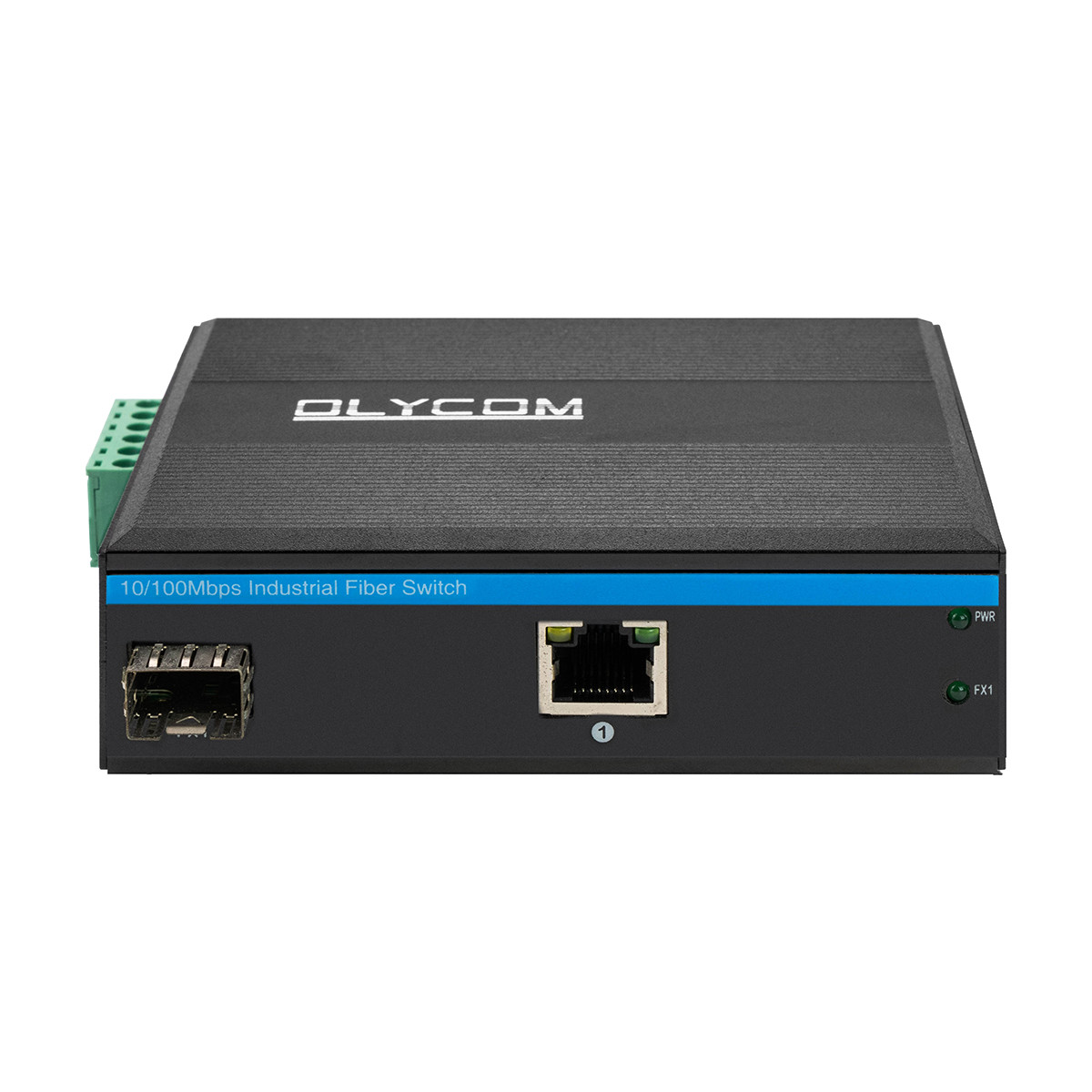

Industrial Ethernet Media Converter SFP Fiber 10/100Mbps Unmanaged Rugged Case

1x100M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)

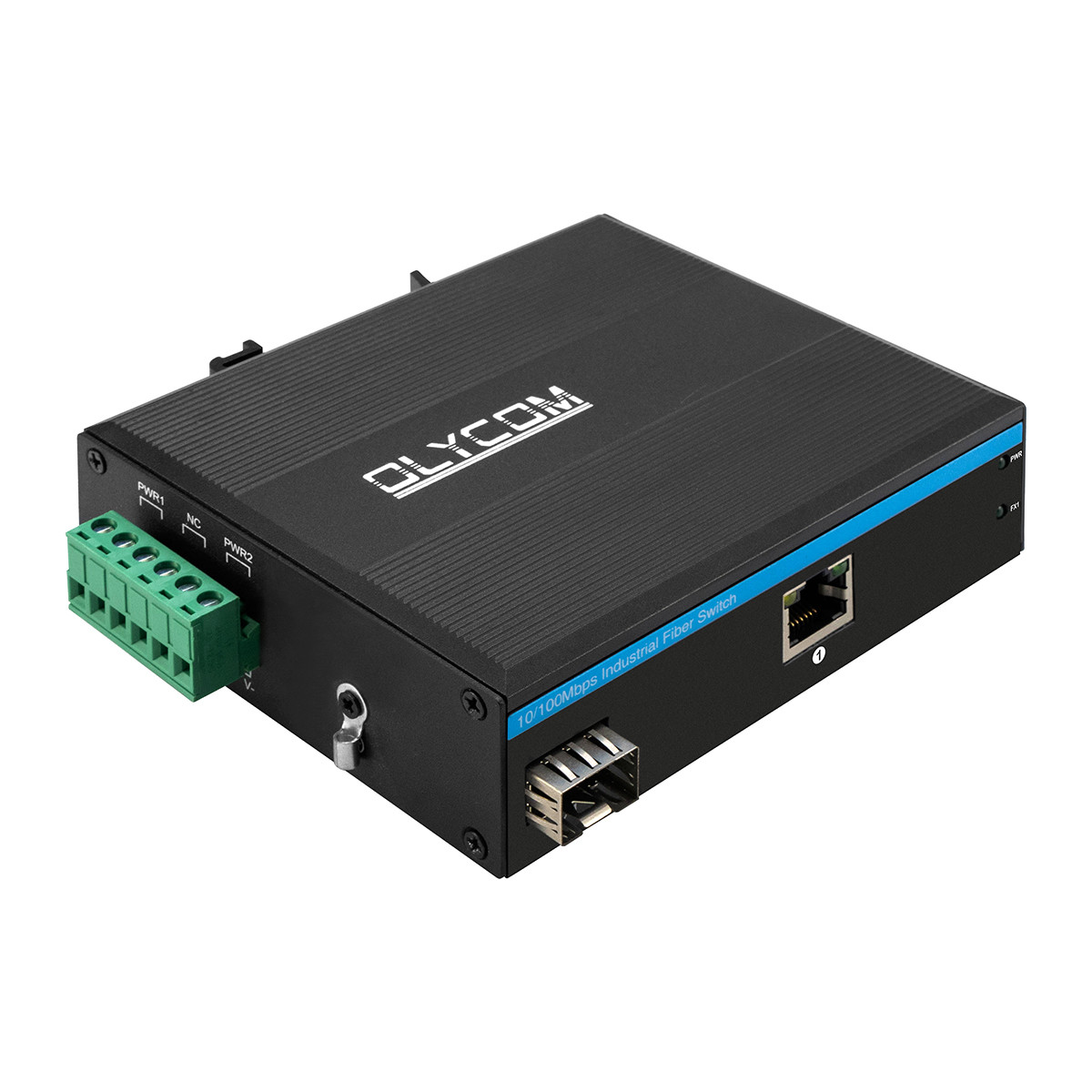

1x6-PIN Power Terminal Block

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 0.4Gbps (non-traffic jam)

MAC: 4K

Packet buffer size: 1.75Mb

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

Power, Fiber, Network

PWR: Power

Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)

Copper orange: PoE indicator

On:PoE is working

Off:PoE is not working or this is Non-PoE device

Copper green: Speed indicator

Blinking: in transmission

Off:Disconnected or working speed is 10/100Mbps

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
