Industrial Unmanaged POE Switch with 2 SFP Ports and 4 UTP for FCC and CE Compliance

10/100Mbps Poe Industrial Switch 2 SFP Ports And 4 UTP Supporting POE AT/AF

Introduction of PoE Industrial Switch

IM-FP244FE is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of PoE Industrial Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
3. 4 x 10/100Mbps Auto-sensing RJ45 ports
4. 2 x 100Mbps SFP fiber ports
5. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard, 30W under at standard to each PoE port
10. Detect the PoE models of electrical equipment.
11. A store-and-forward switching mechanism
12. Operating environment temperature: -40 ° ~75 ° c

Packaging & Delivery of PoE Industrial Switch

• One product, one warranty card, and one user manual are in one box.
• 44pcs boxes are in one carton. (67*33*47cm)
• Port: Shenzhen
• Lead Time: 3-5days and will change according to different quantity

Warranty & Guarantee of PoE Industrial Switch

1. We absolutely never use old and refurbished materials.
2. 3 years Manufacturer Warranty (Excluding contrived damage or misusage). All the products have been passed the functional test and aging test before delivery.
3. If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.

Specification of PoE Industrial Switch


Application of PoE Industrial Switch

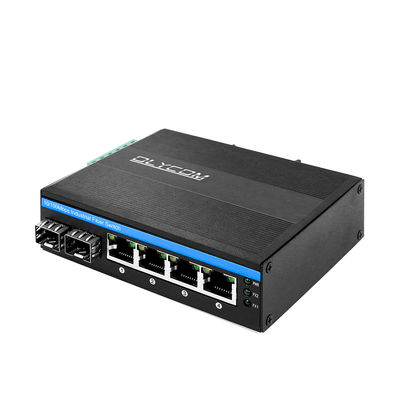

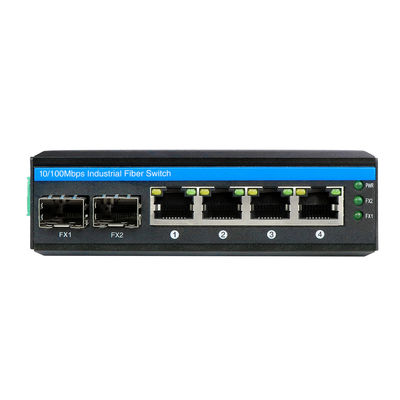

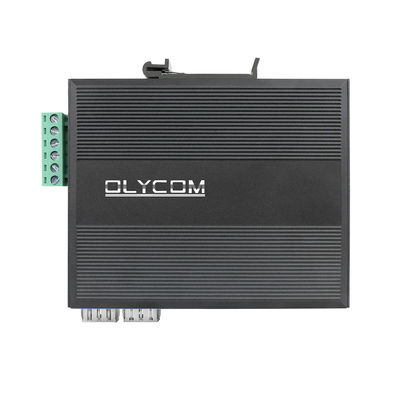

Photo of PoE Industrial Switch
