10/100 Mbps 4 Port Industrial Poe Switch With 2 SFP Slot For Security Camera System
Introduction of Industrial Poe Switch
IM-FP222FE series is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial Poe Switch
Specification of Industrial Poe Switch
| Product Name | 10/100Mbps Industrial POE Fiber Switch (2F+2TP) |
| Model No. | IM-FP222FE |
| Port |
2 x 100Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2 x 10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | 3 years |
Packaging of Industrial Poe Switch
1. One product, one user manual, and one warranty card are inside one box.
2. Twenty pieces of boxes are in one carton.
FAQ of Industrial Poe Switch
Q: What's your MOQ?
A: 1 piece
Q: What is the warranty time?
A: Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.
Q: How long is the lead time?
A: Usually 3-5 days, but need to check when you process orders.
Q: Do you provide OEM service?
A: Yes, we provide OEM service. If you have requirements about a customized product, we also provide it.
Q: What can you buy from us?
A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver
Application of Industrial Poe Switch

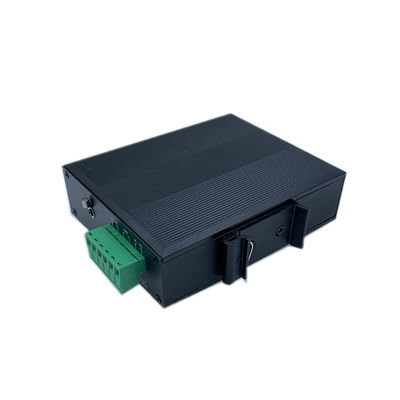

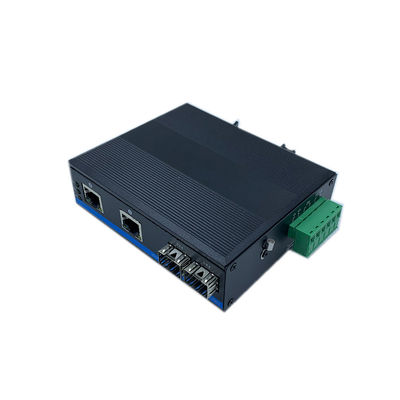

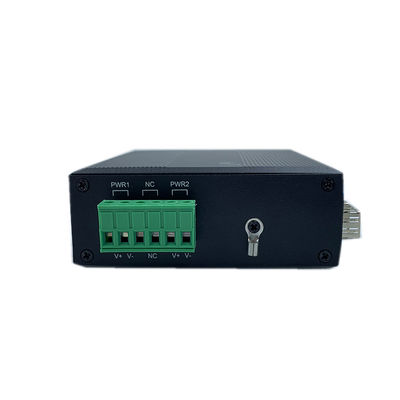

Photo of Industrial Poe Switch
