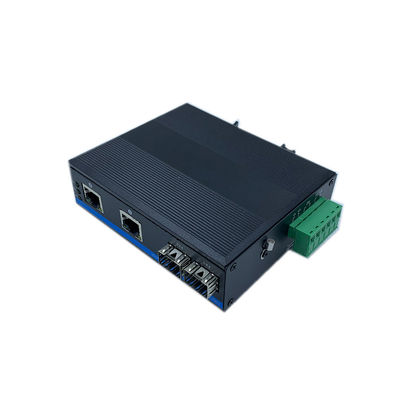

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port

10/100Mbps Industrial Fiber Switch 2 SFP Port And 2 Ethernet Port With CE/FCC/RoHs


Introduction
IM-FS220FE is the 10/100Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Product Details

• 2 x 10/100Mbps Auto-sensing RJ45 ports
• 2x 100Mbps SFP fiber ports
• 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism
• Operating temperature:-40 ° ~85 ° c
• Storage temperature:-40°～ 85°C
• Working humidity:10%～90%,non-condensing
• Storage humidity:10%～95%,non-condensing
• Transmission mode: storage and forward
• System bandwidth:40Gbps (non-traffic jam)
• 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
• 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
• Transmission distance: 20Km,40Km,60Km,80Km,100Km
• LEDs: Power, network, fiber
• Input voltage:DC 9-52V
• No-load power:5W
• Reverse connection: support

Specification

Packaging Details

Shipping Dimension for 1pc : 24*16*6cm;
One unit device and one user manual are inside one box, sealed and well protected.

44pcs /carton, the carton dimension is 67*33*47cm

Application
