Name: CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FS220FE
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Unmanaged, Non-PoE

Product Name: Industrial Unmanaged Fiber Switch

Fiber Speed: 100M, SFP Slot

Ethernet Speed: 10/100Mbps

Chip: Realtek

Certification: CE RoHS FCC

Highlight:

CE 100Mbps Industrial Network Switch

2 SFP Port Industrial Network Switch

CE 100Mbps industrial fiber switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: OLYCOM

Certification: CE, FCC, RoHS

Model Number: IM-FS220FE

Document: OLYCOM Industrial Networkin...24.pdf

Payment & Shipping Terms

Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.

Delivery Time: 3-5 workingdays

Payment Terms: T/T, Paypal

Supply Ability: 3000 pieces per month

Gallery

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged

Product Description

10/100M Industrial SFP Fiber Switch

Product Details of Industrial Fiber Switch

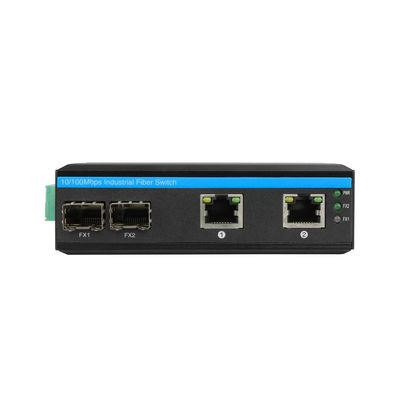

2 x 10/100Mbps Auto-sensing RJ45 ports
2x 100Mbps SFP fiber ports
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism

Specification of 4 Port Network Switch

Product Name	10/100Mbps Industrial Fiber Switch(2F+2TP)
Model No.	IM-FS220FE

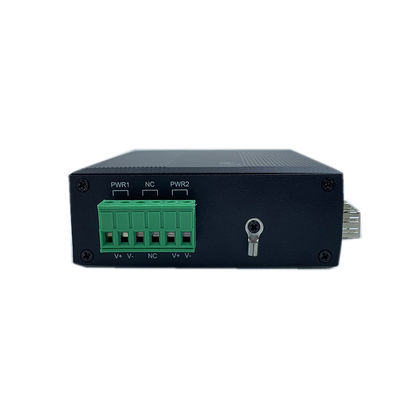

Port	2x100M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 2x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block
Protocol	IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX)
Switching Features	Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 0.8Gbps (non-traffic jam) MAC: 4K Packet buffer size: 1.75Mb
Network Media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs	Power, Fiber, Network, PoE PWR: Power Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected) Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps
Power Supply	Input voltage: DC12V~DC52V dual input, typically DC12V/DC24V/DC48V Reverse connection: support
Environment	Working temperature: -40°C～75°C Storage temperature: -40°C～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing
Industry Standards	ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification	CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information	Shell: Corrugated metal shell, IP40 grade level Dimension: 1149335mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty	3 years, lifetime technical support

Packaging Details

Shipping Dimension for 1pc : 24*16*6cm;
One unit device and one user manual are inside one box, sealed and well protected.

44pcs /carton, the carton dimension is 67*33*47cm

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged 0

Application

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged 1

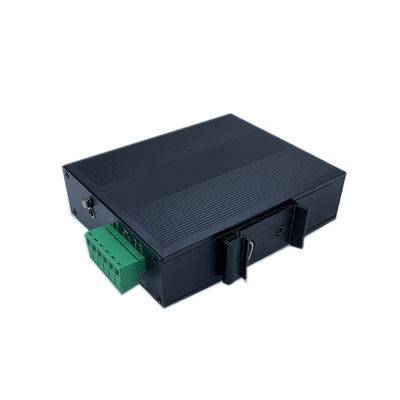

Photos

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged 2

CE 10/100Mbps Industrial Network Switch 2 SFP Port And 2 Ethernet Port Unmanaged 3

FAQ

1. What can you buy from us?
Industrial Fiber Switch, WDM Series ,POE Fiber Switch ,Fiber Media Converter ,SFP Transceiver

2. Why should you buy from us, not from other suppliers?
Shenzhen Olycom Technology Co., Ltd. is a manufacturer of fiber optic since 2003. We have passed the HIGH-TECH and ISO9001. There is many domestic and abroad agents which help us to have a good market share.

3. What services can we provide?
Accepted Delivery Terms: FOB, CIF ,EXW
Accepted Payment Currency :USD ,EUR, CNY
Accepted Payment Type: T/T, PayPal
Language Spoken: English, Chinese ,Spanish, Russian
