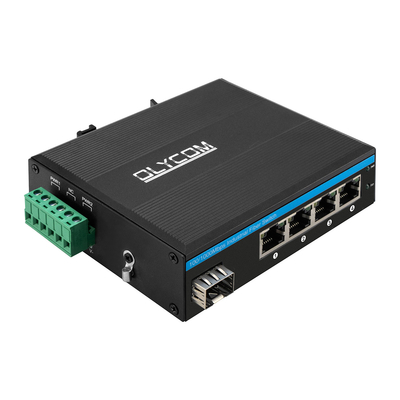

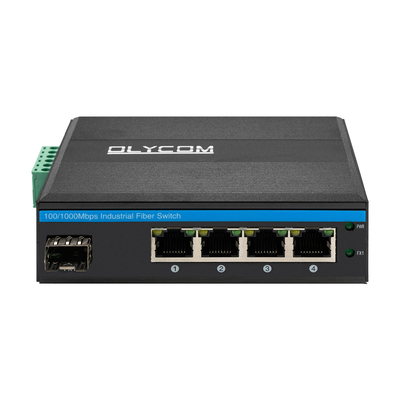

5 Port 100/1000Mbps Industrial Network Switch
Key Features of SFP Fiber Switch
- 1x100/1000Mbps Auto-sensing SFP fiber ports
- 4x10/100/1000Mbps Auto-sensing RJ45
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

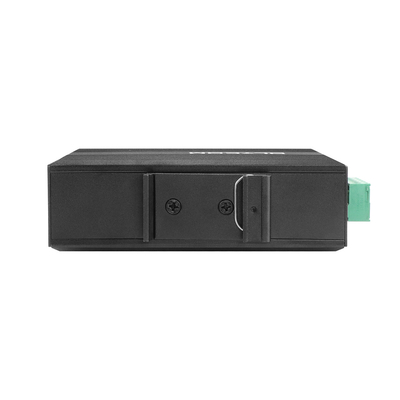

- DIN rail or Wall installation
- Comply with FCC and CE standards
- A store-and-forward switching mechanism
- Operating environment temperature: -40°C～75°C
It is an ideal solution for IP Surveillance, wind, electricity, subway PIS, assembly automation, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other industries
Specification of Gigabit Switch 5 Port
| Product Name |
10/100/1000Mbps Industrial Fiber Switch(2F+4TP) |
| Model No. |
IM-FS140GE |
| Port |
1x100/1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

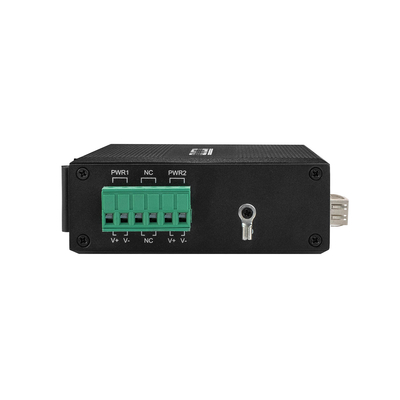

1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 10Gbps (non-traffic jam)
Forwarding rate: 14.88Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
| Power Consumption |
Full loading≤5W |
| Power Supply |
Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V
Reverse connection: support
|
| Environment |
Working temperature: -40°C～75°C
Storage temperature: -40°C～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
|
| Mechanical information |
Shell: Corrugated metal shell, IP40 grade level
Dimension: 114*93*35mm
Mounting method: Din-rail/Wall mounting
Weight: 0.35Kg/0.45Kg(Net/Gross)
|
| Warranty |
3 years, lifetime technical support |
Packing List
- 1pc switch
- 1pc user manual
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Application
Accessories
| Industrial Optical Module |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply |
| IM-DAC220/DC12V1.67A |
AC220V to DC12V1.67A, -30℃～70℃ |
| IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃～70℃ |
