10g SFP Mulitmode Optical Transceiver Module
Product Overview
Features
Application
Optical Parameters
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λt | 840 | 850 | 860 | nm | |
| RMS spectral width | λRMS | 4 | nm | |||
| Average Optical Power | Pavg | -7.3 | -1 | dBm | 1 | |
| Optical Power OMA | Poma | -1.5 | dBm | |||
| Laser Off Power | Poff | -30 | dBm | |||
| Extinction Ratio | ER | 3.5 | dB | |||
| Transmitter Dispersion Penalty | TDP | 3.9 | dB | 2 | ||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||
| Optical Return Loss Tolerance | 20 | dB | ||||
| Receiver Section: | ||||||
| Center Wavelength | λr | 840 | 860 | nm | ||
| Receiver Sensitivity (OMA) | Sen | -11.1 | dBm | 4 | ||
| Stressed Sensitivity (OMA) | SenST | -7.5 | dBm | 4 | ||
| Los Assert | LOSA | -30 | - | dBm | ||
| Los Dessert | LOSD | -12 | dBm | |||
| Los Hysteresis | LOSH | 0.5 | dB | |||
| Overload | Sat | 0 | dBm | 5 | ||
| Receiver Reflectance | Rrx | -12 | dB | |||
1. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
2. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.
3. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
4. What is your warranty period?
For commercial models like fiber Ethernet media converter or fiber optic PoE switch, it is 1 year.
For industrial grade products, it is 3 years.
We do lifetime technical support if the models are from Olycom company.

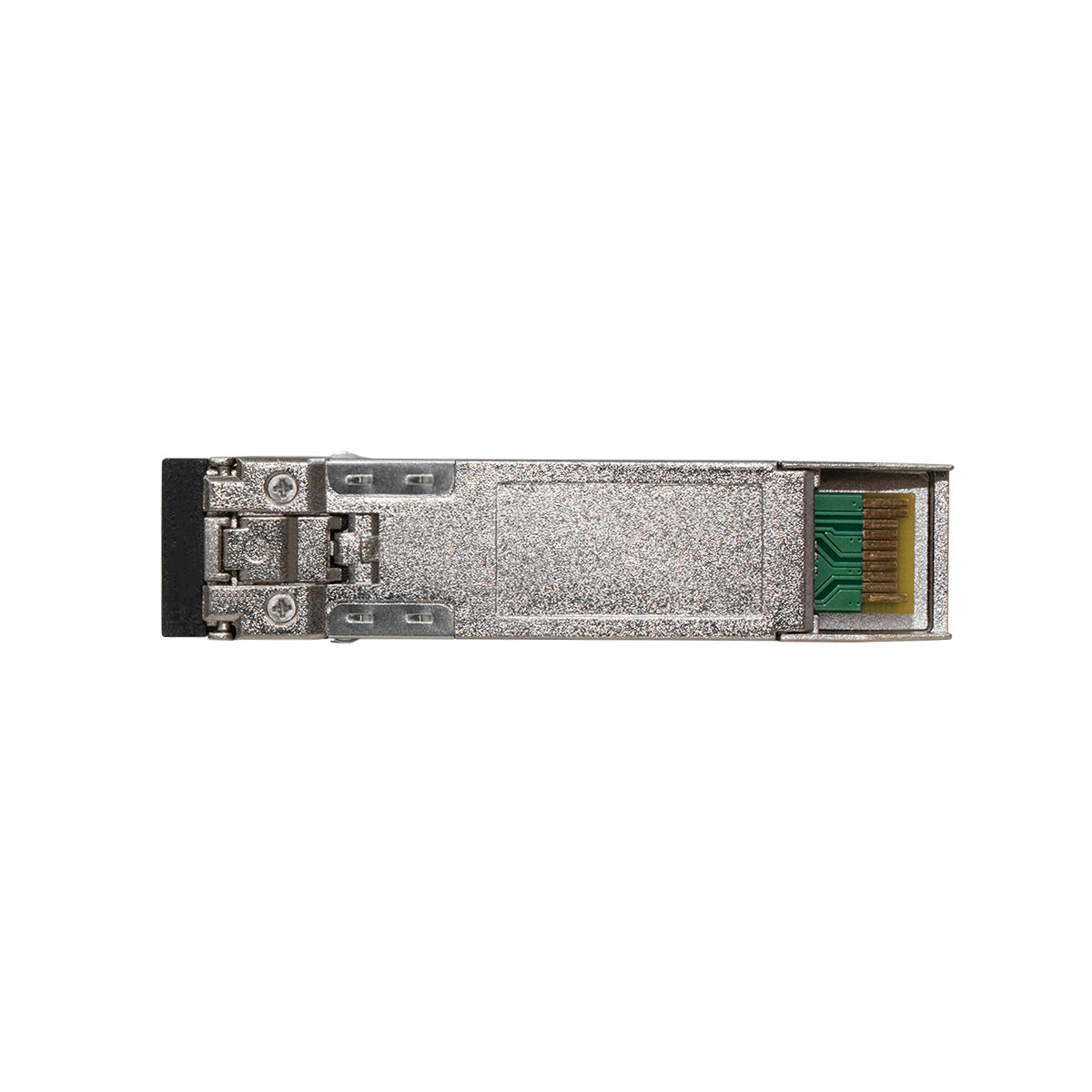

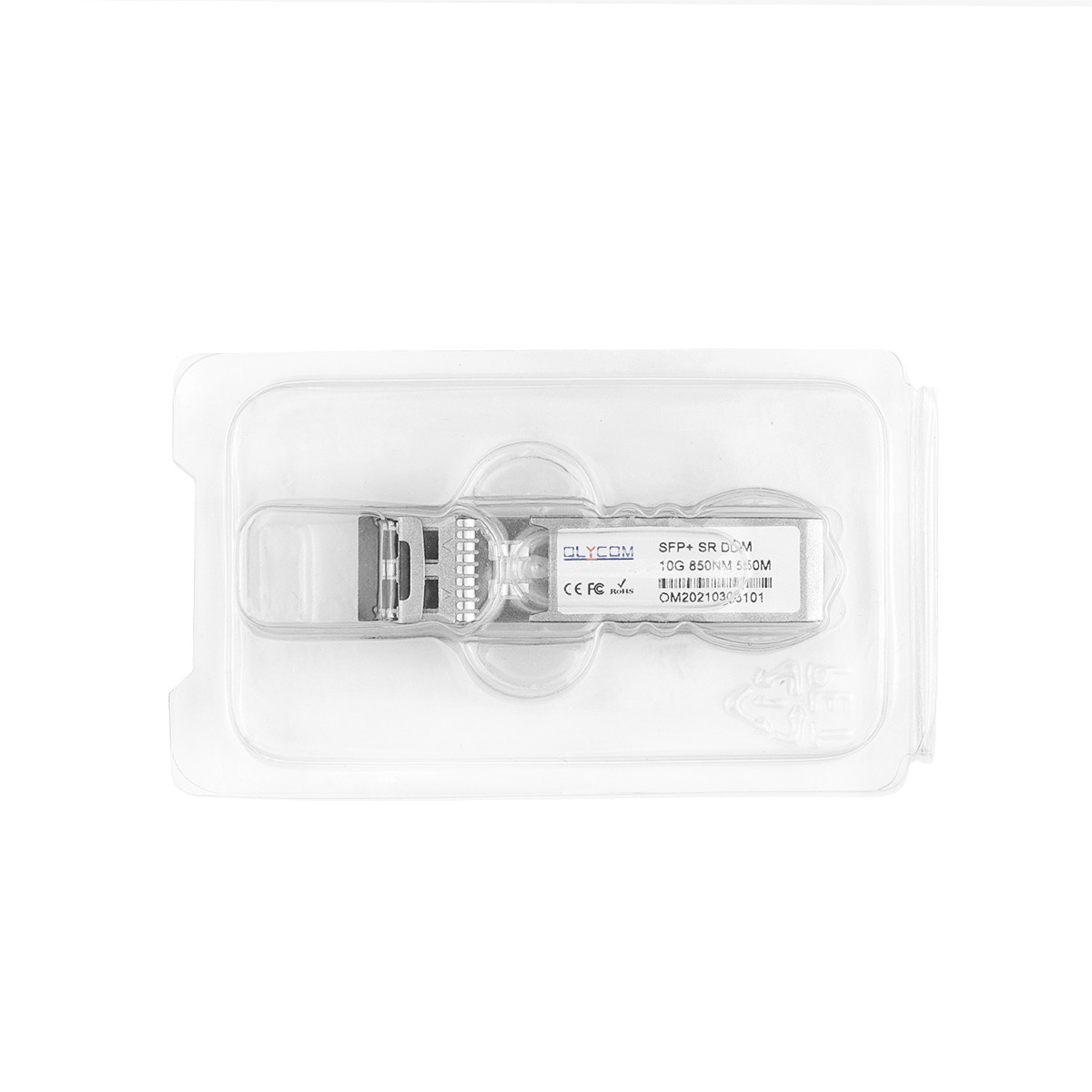

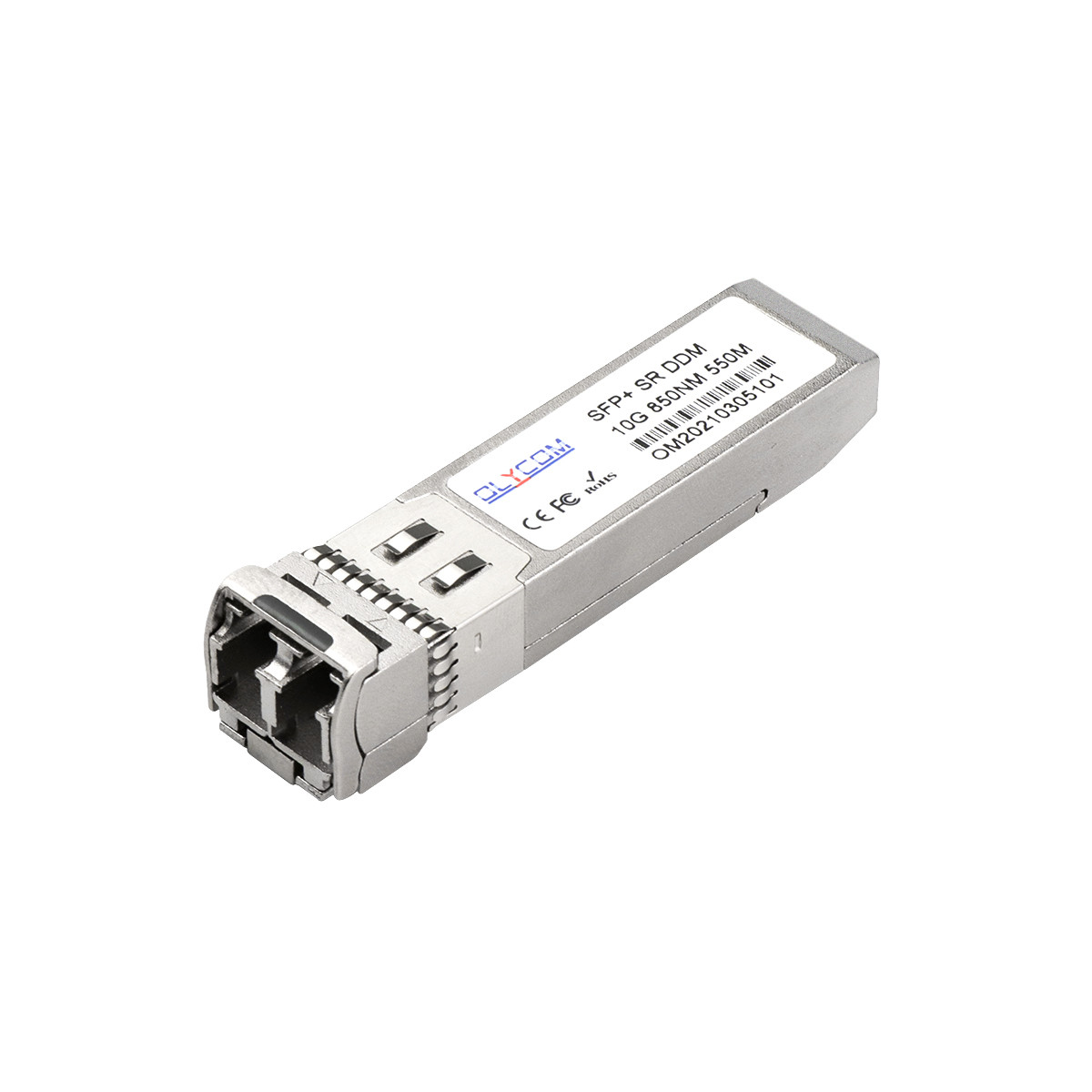

Product Photos
