10/100Mbps Industrial POE Switch 1 SFP Port And 4 RJ45 Ports For Outdoor
Introduction of Industrial POE Switch
IM-FP144FE series is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial POE Switch
Specification of Industrial POE Switch
| Model No. | IM-FP144FE |
| Port |
1 x 100Mpbs SFP port 4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Safety |
CE Mark , commercial CE/LVD EN60950 |
| Warranty | 3 years |
Industry Standards of Industrial POE Switch
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control:NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic:EN 50121-4
Mechanical information of Industrial POE Switch
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting
Packing List of Industrial POE Switch
User Manual *1 pc
5 Port Industrial POE Ethernet Switch *1 pc
Warranty Card *1 pc
Lead Time of Industrial POE Switch
| Quantity(Pieces) | 1-100 | >100 |
| Time(Days) | 3 | To be Negotiated |
FAQ of Industrial POE Switch
Q: What is your MOQ?
A: 1 piece.
Q: Do you have any certificates?
A: Authenticated of CE, RoHS, FCC, ISO9001, and etc.
Q: Can I get a sample?
A: We can provide samples, feel free to contact me to talk about more details.
Q: How do you guarantee the quality?
A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment;
Application of Industrial POE Switch

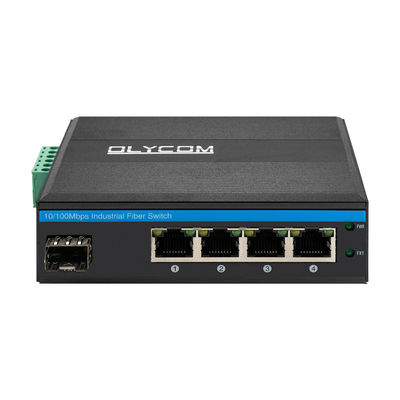

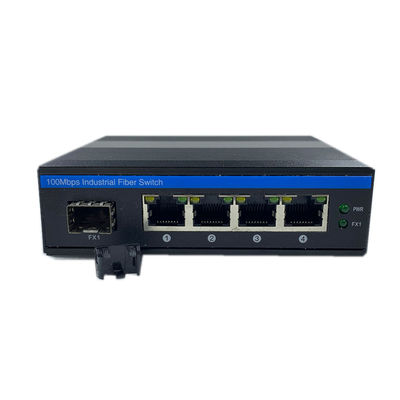

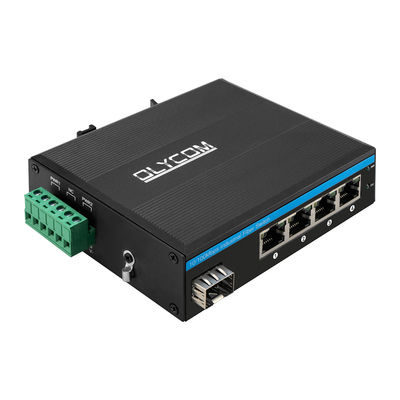

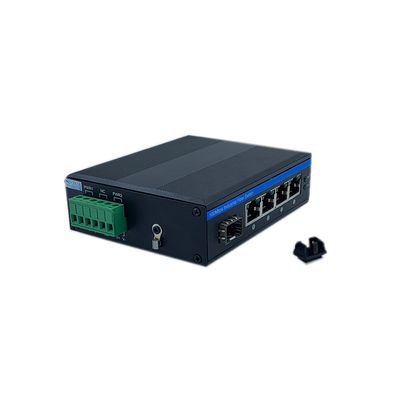

Photo of Industrial POE Switch
