Im-Fp144fe 10 / 100mbps 5 Port Poe Switch 1 SFP Port Industrial Grade

1 piece
MOQ
Negotiable
Price
Im-Fp144fe 10 / 100mbps 5 Port Poe Switch 1 SFP Port Industrial Grade
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 10/100Mbps Industrial POE Switch
Operating Temperature: -40 ℃ ~ + 85 ℃
Color: Black
Mounted Way: Din-Rail Mounting
Material: Metal
Warranty Time: 3 Years
High Light:

100Mbps 5 Port poe switch

,

IM-FP144FE 5 Port poe switch

,

IM-FP144FE industrial grade switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE、RoHS、FCC
Model Number: IM-FP144FE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5days
Payment Terms: T/T, Western Union, PayPal, L/C, MoneyGram, D/A, D/P
Supply Ability: 500 pcs per month
Product Description

10/100Mbps Industrial POE Switch 1 SFP Port And 4 RJ45 Ports For Outdoor




Introduction

IM-FP144FE series is the 10/100 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features

  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af /at power on to 1 ~ 4 RJ45 ports
  3. 4KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  7. Max power to15.4W under af standard, 30W under at standard to each PoE port
  8. Detect the PoE models of electrical equipment.



Specification

Model No. IM-FP144FE
Port

1 x 100Mpbs SFP port

4x10/100M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)

100BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~4)

(802.3at standards required special instructions)

Environment

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Safety

CE Mark , commercial

CE/LVD EN60950

Warranty Replacement within 1 year; 5 years repairing



Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4



Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method: Din-rail mounting



Packing List

User Manual *1 pc

5 Port Industrial POE Ethernet Switch *1 pc

Warranty Card *1 pc



Lead Time

Quantity(Pieces) 1-100 >100
Time(Days) 3 To be Negotiated



FAQ

Q: What is your MOQ?

A: 1 piece.



Q: Do you have any certificates?

A: Authenticated of CE, RoHS, FCC, ISO9001, and etc.



Q: Can I get a sample?

A: We can provide samples, feel free to contact me to talk about more details.



Q: How do you guarantee the quality?

A: we absolutely never use old and refurbished materials. Always a pre-production sample before mass production; 48 hours aging test before delivery. Always final Inspection before shipment;


Application

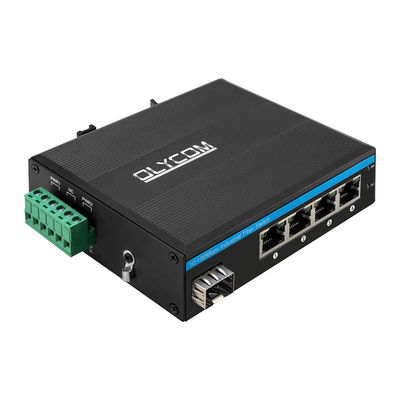

Im-Fp144fe 10 / 100mbps 5 Port Poe Switch 1 SFP Port Industrial Grade 0

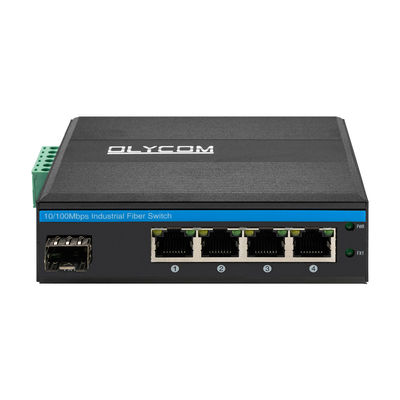

Im-Fp144fe 10 / 100mbps 5 Port Poe Switch 1 SFP Port Industrial Grade 1
