10/100/1000M Industrial POE 5 Port Switch Extreme Temperature -40°～ 75°C
Introduction of Industrial POE 5 Port Switch
IM-FP144GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Industrial POE 5 Port Switch
Packaging & Delivery of Industrial POE 5 Port Switch
Packaging Details: One product, one user manual and one warranty card are inside one box
Port: Shenzhen
Delivery term: EXW
Lead Time: 3-5 days. It depends on the quantity.
FAQ of Industrial POE 5 Port Switch
Q: What is your minimum quantity?
A: We do not have MOQ, 1 sample is available.
Q: Do you have CE, FCC, ROHS?
A: Yes.
Q: What is the warranty time?
A: One year for HD video optical converter, normal switch, fiber media converter, network booster；
Three years for industrial fiber switch and SFP transceiver
Lifetime repair service is provided.
Q: Are you the real factory?
A: Yes, we are the real factory with 20 years of history.
Specification of Industrial POE 5 Port Switch
| Product Name | 10/100/1000Mbps 5 Port Industrial POE Fiber Switch (1F+4TP) |
| Model No. | IM-FP144GE |
| Port |
1 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | 3 years |
Application of Industrial POE 5 Port Switch

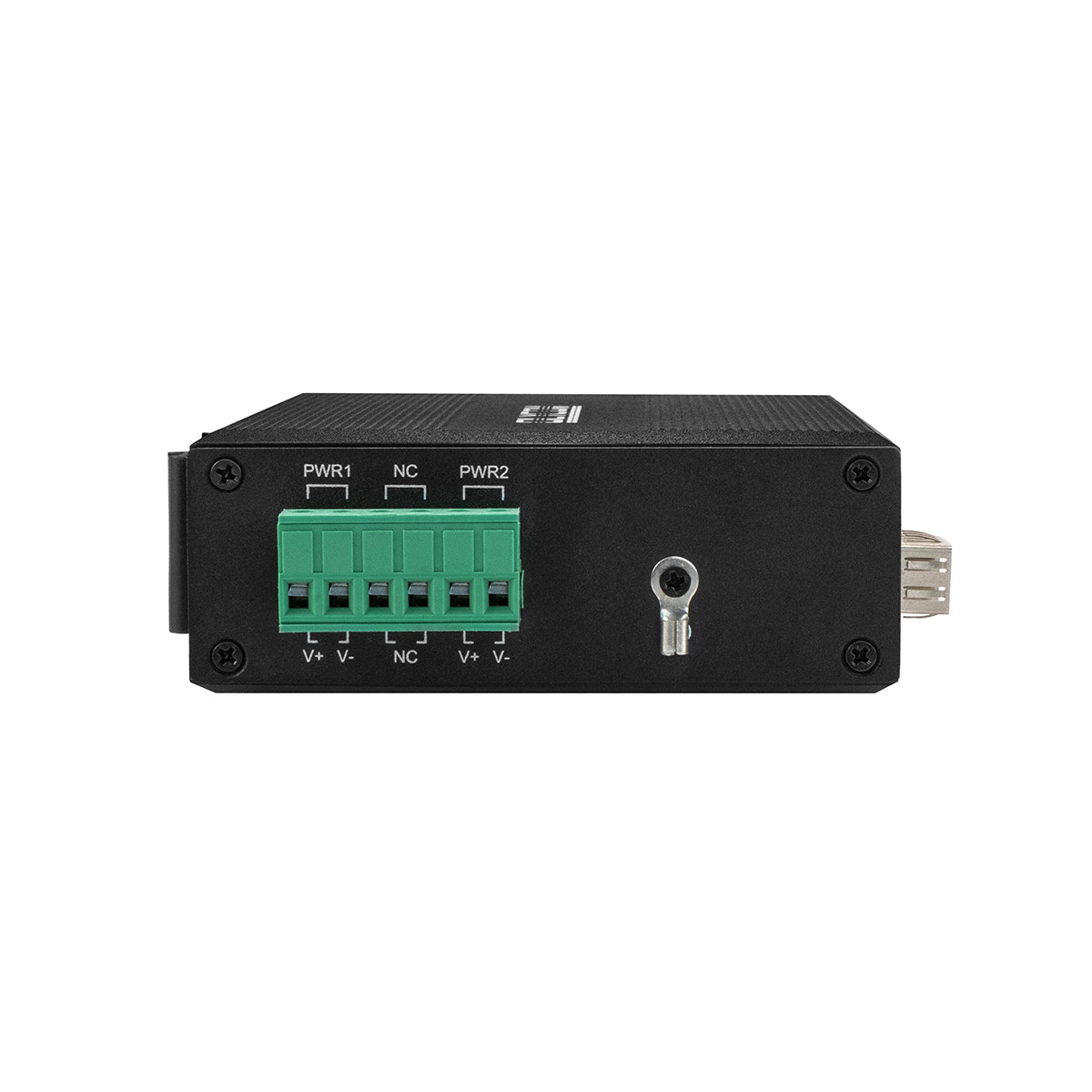

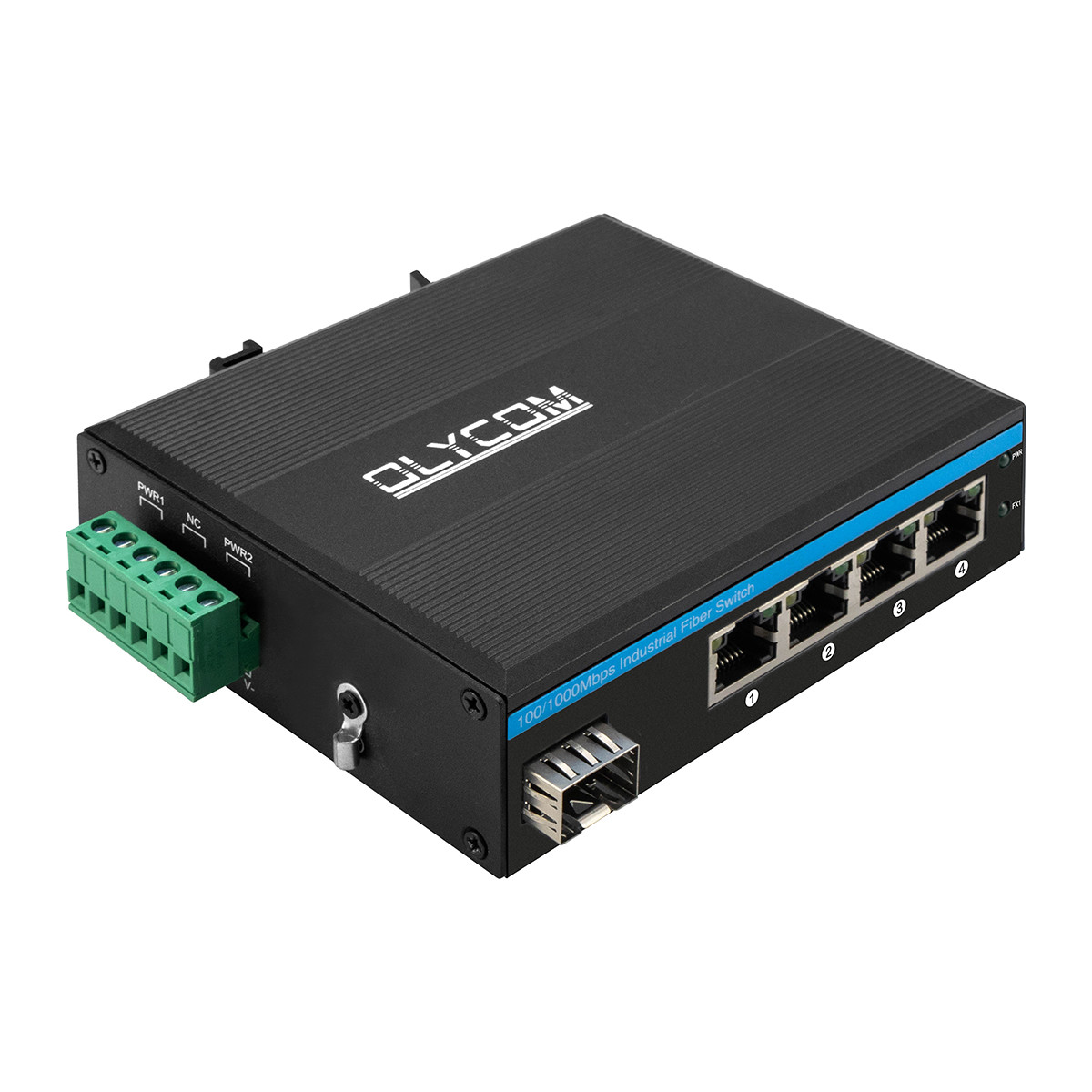

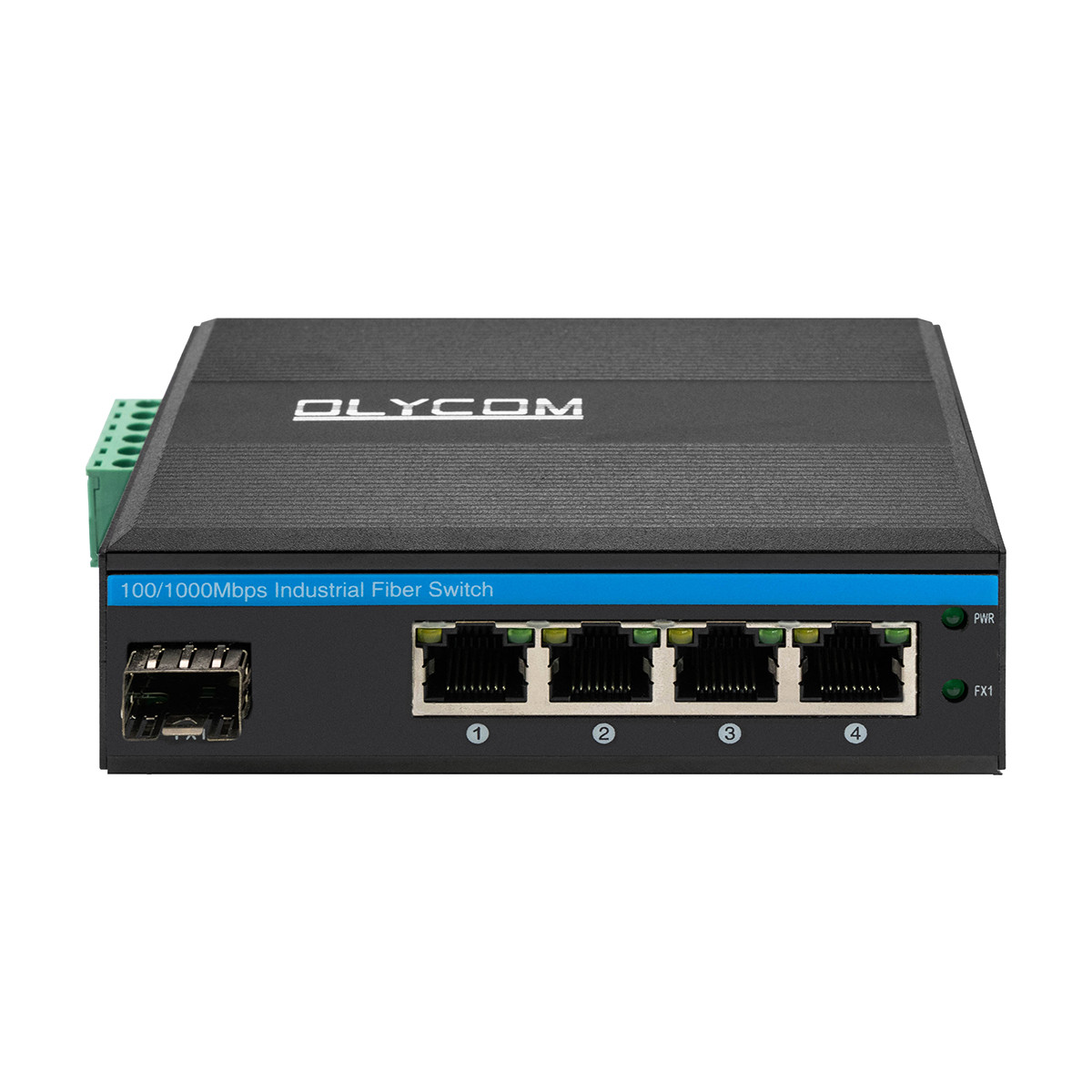

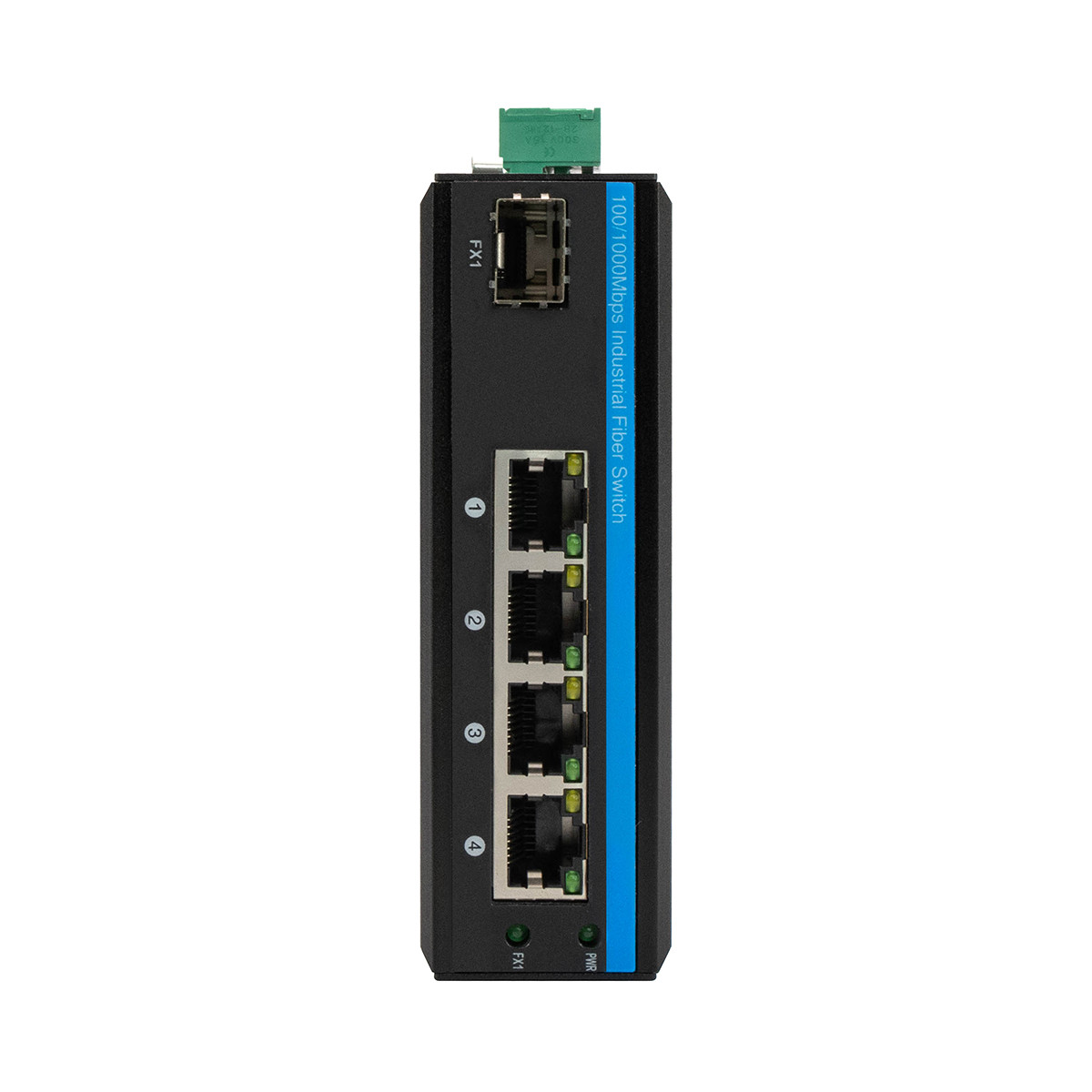

Photo of Industrial POE 5 Port Switch
