Olycom Gigabit 15.4W 30W PoE Rugged Network Switch
Introduction of Industrial Ethernet Switch

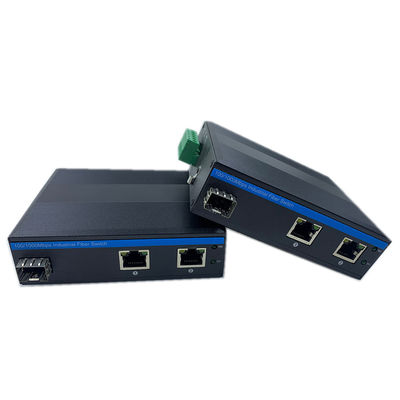

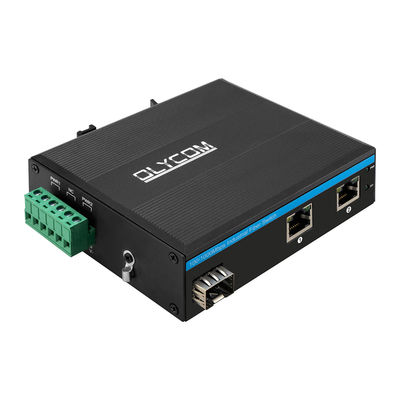

IM-FP122GE series is the 10/100/1000 Mbps industrial PoE fiber switch featuing
- Compliance with IEEE802.3af/at
- Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
- 1x100/1000Mbps auto-sensing SFP fiber ports
- 2x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power on to 1~ 2 ports
- Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- DIN rail or Wall installation
- Power range up to 100 meters
- Comply with FCC and CE standards
- Operating environment temperature: -40°C～75°C
The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Specification of Industrial Fiber Switch
| Product Name |
Gigabit Unmanaged Industrial PoE Fiber Switch(1F+2TP) |
| Model No. |
IM-FP122GE |
| Port |
1x100/1000M SFP Fiber
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500-meter
2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

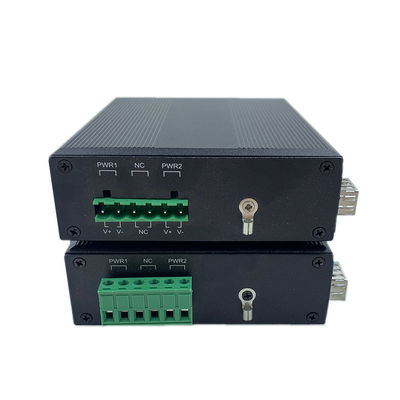

1x6-PIN Power Terminal Block
|
| Protocol |
IEEE 802.3(10Base-T)
IEEE 802.3u(100Base-TX)
IEEE 802.3ab(1000Base-TX)
IEEE 802.3af 15.4W(PoE)
IEEE 802.3at 30W(PoE+)
|
| Switching Features |
Transmission mode: storage and forward
Forwarding delay: <10us
System bandwidth: 6Gbps (non-traffic jam)
Forwarding rate: 8.928Mmps
MAC: 4K
Packet buffer size: 1.75Mb
|
| Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
| LEDs |
Power, Fiber, Network, PoE
PWR: Power
Fiber: FX1
On: transmission is normal
Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator
On: PoE is working
Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator
On: transmission speed is 1000Mbps
Blinking: in transmission
Off: Disconnected or working speed is 10/100Mbps
|
About PoE
PoE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W
PoE output voltage: 48V
Reverse connection: support
Power Consumption: Full loading without PoE≤5W
PoE Wiring: 1/2 (V+), 3/6 (V-)
Industry Standards
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020
EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021
EN 61000-3-3: 2013/A2: 2021/AC:2022
CE-LVD: EN IEC 62368-1: 2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Packing List
- 1pc switch
- 1pc user manual
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
| Industrial Optical Module |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial DIN Power Supply |
| IM-DAC220/DC48V1.6A |
AC220V to DC48V1.6A, -30℃～70℃ |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～70℃ |
Application of CCTV PoE Switch
