Gigabit Industrial Unmanaged POE Switch 2 Port 1000Mbps SFP Fiber Port

2 Port Gigabit Industrial POE At/Af Ethernet Switch Waterproof IP40 Din Rail With 1 SFP Port

Introduction of Industrial POE At/Af Ethernet Switch

IM-FP122GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature -40 ℃ to + 75 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features of Industrial POE At/Af Ethernet Switch

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 2 RJ45 ports
3. 2x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 1x 1000Mbps SFP fiber port
5. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard, 30W under at standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Working temperature: -40°～ 75°C
13. Storage temperature: -40°～ 85°C
14. Working humidity: 10%～90%,non-condensing
15. Storage humidity:10%～95%,non-condensing
16. Transmission mode: storage and forward

17. System bandwidth: 40Gbps (non-traffic jam)

Industry Standards of Industrial POE At/Af Ethernet Switch

• EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
• Traffic Control: NEMA-TS2
• Vibration:IEC 60068-2-6
• Freefall:IEC 60068-2-32
• Shock:IEC 60068-2-27
• Rail Traffic: EN 50121-4

Mechanical information of Industrial POE At/Af Ethernet Switch

• Shell: Corrugated metal shell
• Safety class: IP40
• Dimension: 113.8 x 93 x 34.9mm
• Mounting method: Din-rail mounting

Packaging & Delivery of Industrial POE At/Af Ethernet Switch

Selling Units: Single item

Single packaging size: 22*16*6cm

Single gross weight: 0.45kg

Package type: One product, one user manual, and one warranty card are inside one box

Lead Time: 3-5days and will change according to different quantity

Specification of Industrial POE At/Af Ethernet Switch

FAQ of Industrial POE At/Af Ethernet Switch

Q: Are you the real factory?

A: Yes, we are the real factory with 20 years of history.

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide.

Application of Industrial POE At/Af Ethernet Switch

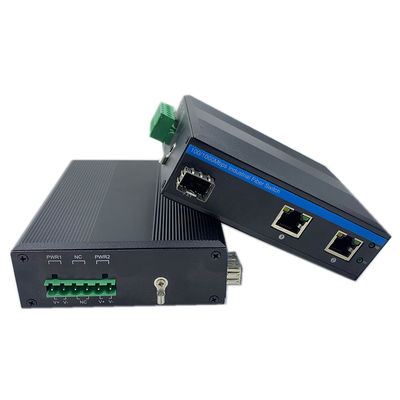

Photo of Industrial POE At/Af Ethernet Switch
