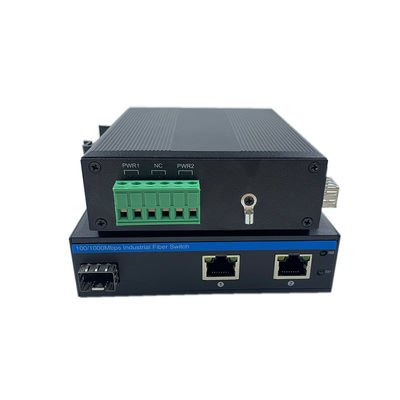

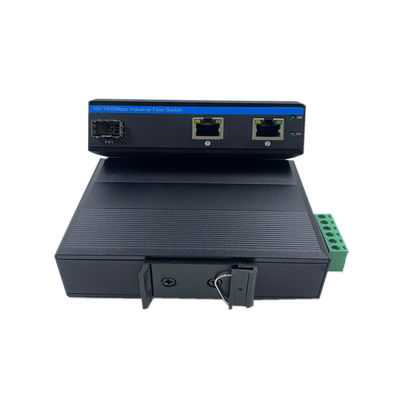

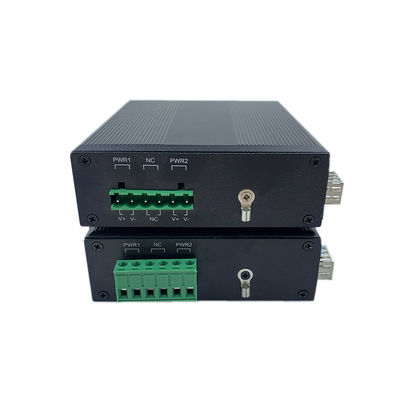

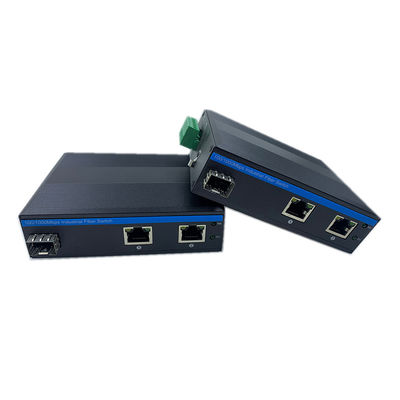

Industrial Grade Network Switch 10/100m 1 Sfp 2 Rj45 Unmanaged Network Switch IP40 DC 9-36V

10/100M Mini Industrial Network Switch 1 SFP Fiber Port to 2 UTP


Overview of Industrial Network Switch

IM-FS120FE series is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Product Details of Industrial Network Switch

1. 2 x 10/100Mbps Auto-sensing RJ45 ports
2. 1 x 100Mbps SFP fiber port
3. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
4. Support Auto MDI/MDIX
5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
6. IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
7. A store-and-forward switching mechanism
8. Operating environment temperature:-40 ° ~85 ° c
9. Transmission mode: storage and forward
10. System bandwidth:40Gbps (non-traffic jam)
11. 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
12. 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
13. Transmission distance: 20Km,40Km,60Km,80Km,100Km
14. LEDs: Power, network, fiber
15. Input voltage:DC 9-52V
16. No-load power:5W
17. Reverse connection: support
18. Storage temperature:-40°～ 85°C
19. Working humidity:10%～90%,non-condensing
20. Storage humidity:10%～95%,non-condensing
21. Safety: CE Mark, commercial CE/LVD EN60950
22. Warranty: 3 years

Industry Standards of Industrial Network Switch

• EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
• Traffic Control: NEMA-TS2
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Rail Traffic: EN 50121-4

Mechanical information of Industrial Network Switch

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method: Din-rail mounting
