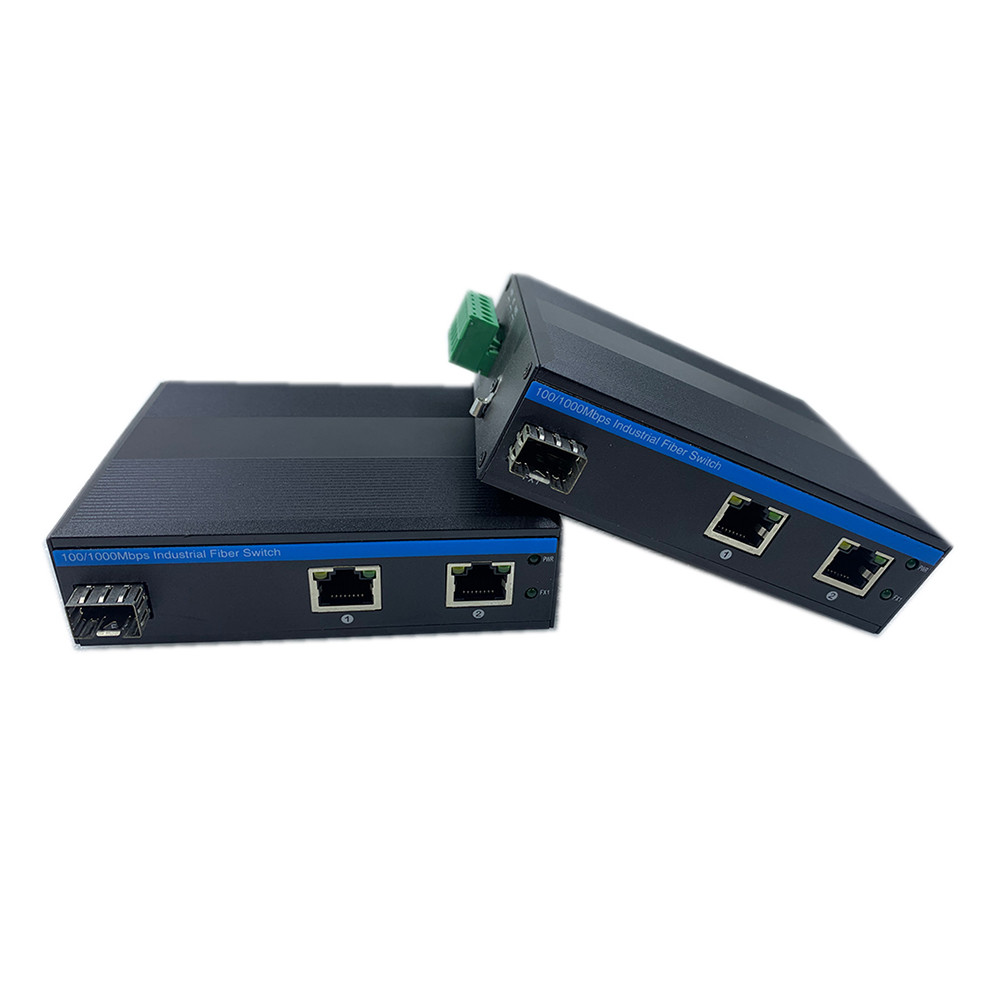

Hardened Network Switch 10/100Mbps Fiber Fast Ethernet Unmanaged IP40 DC12V DC24V

1 piece
MOQ
Negotiable
Price
Hardened Network Switch 10/100Mbps Fiber Fast Ethernet Unmanaged IP40 DC12V DC24V
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Fast Ethernet Industrial Fiber Switch
Fiber: 1*100M SFP Slot
Copper: 2*10/100Mbps RJ45
Feature: Unmanaged, Non-PoE
Voltage: DC12V~DC52V
Customization: Support
Highlight:

IP40 Mini Industrial Network Switch

,

1 SFP Fiber Port Industrial Network Switch

,

IP40 industrial grade ethernet switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE、RoHS、FCC
Model Number: IM-FS120FE
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 500 pcs per week
Product Description

10/100Mps Fiber Ethernet Mini Industrial Network Switch


Product Details of Industrial Network Switch



  1. 2 x 10/100Mbps Auto-sensing RJ45 ports
  2. 1 x 100Mbps SFP fiber port
  3. 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  4. Support Auto MDI/MDIX
  5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

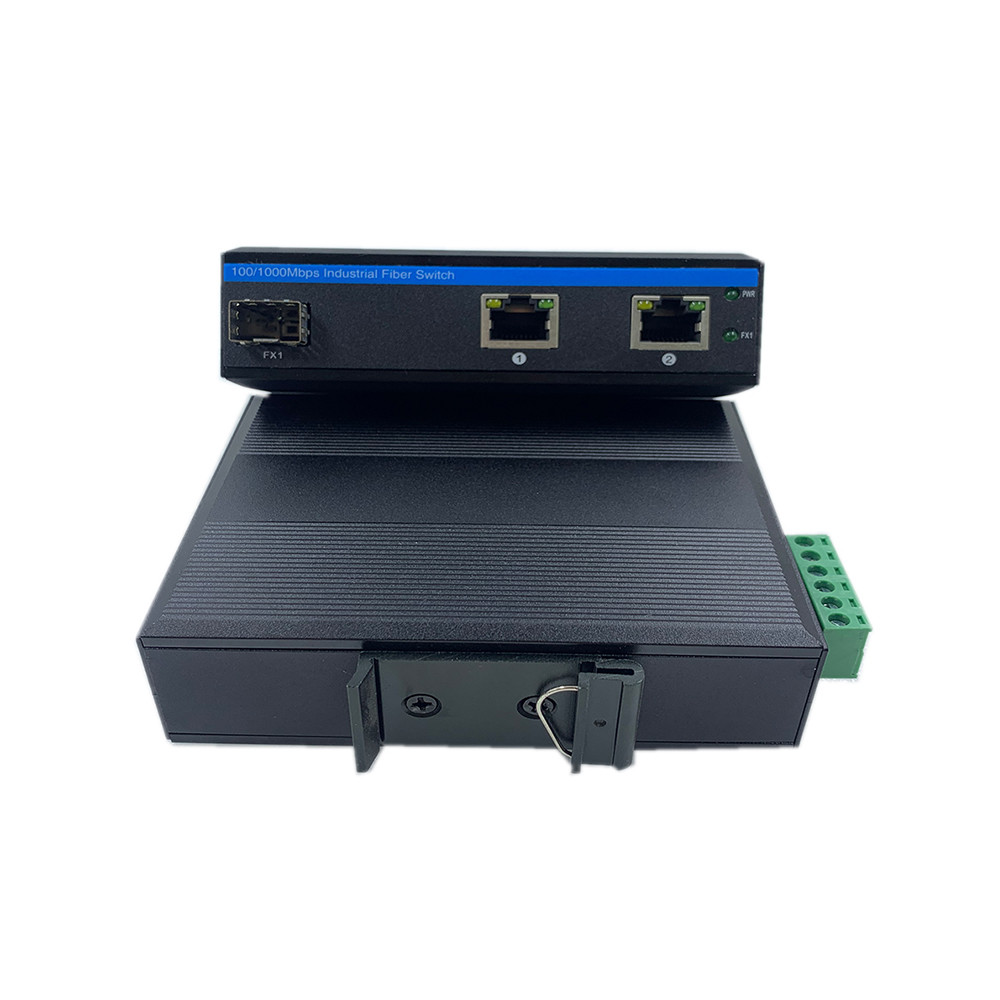

  7. DIN rail or Wall installation
  8. Comply with FCC and CE standards
  9. A store-and-forward switching mechanism
  10. Operating environment temperature: -40°C～75°C



Technical Data of Rugged Ethernet Switch



Product Name 10/100Mbps Industrial Fiber Switch(1F+2TP)
Model No.

IM-FS120FE
Port

1x100M SFP Fiber

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500-meter

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

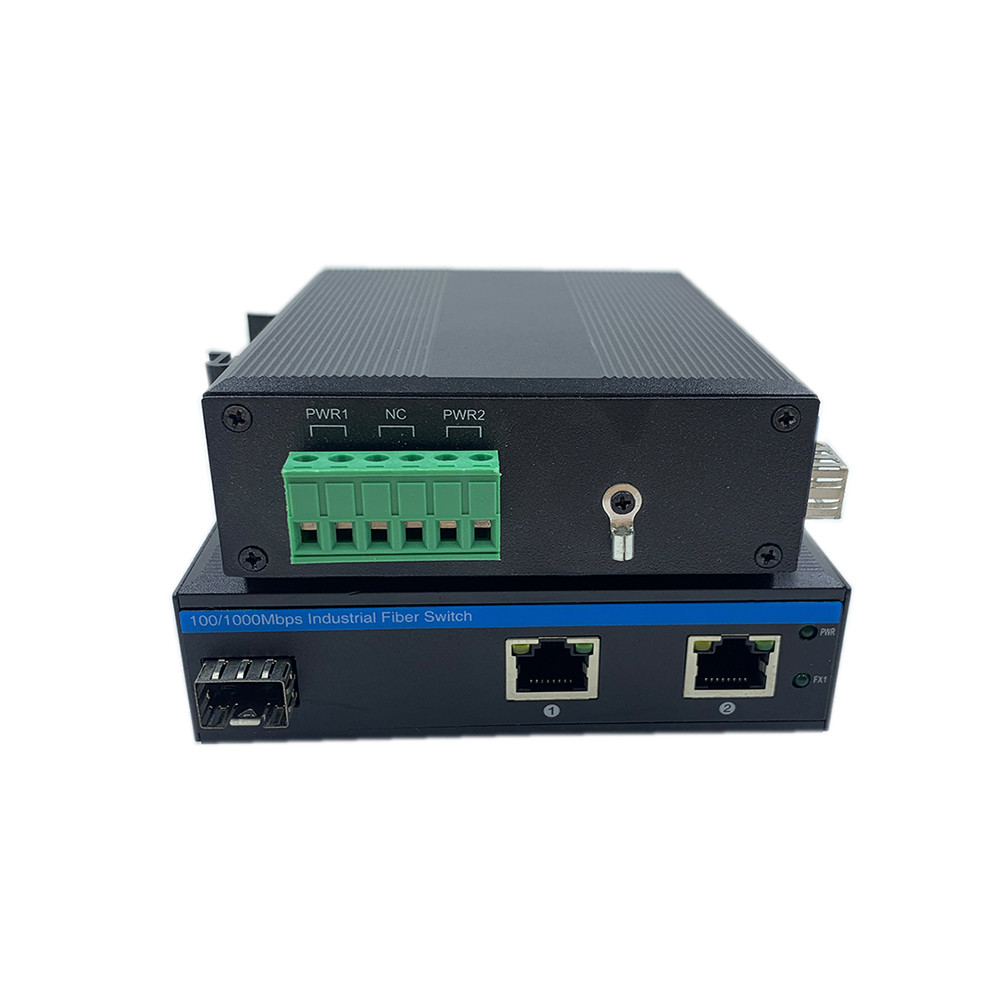

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 0.6Gbps (non-traffic jam)

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps
Power Consumption Full loading≤5W
Power Supply

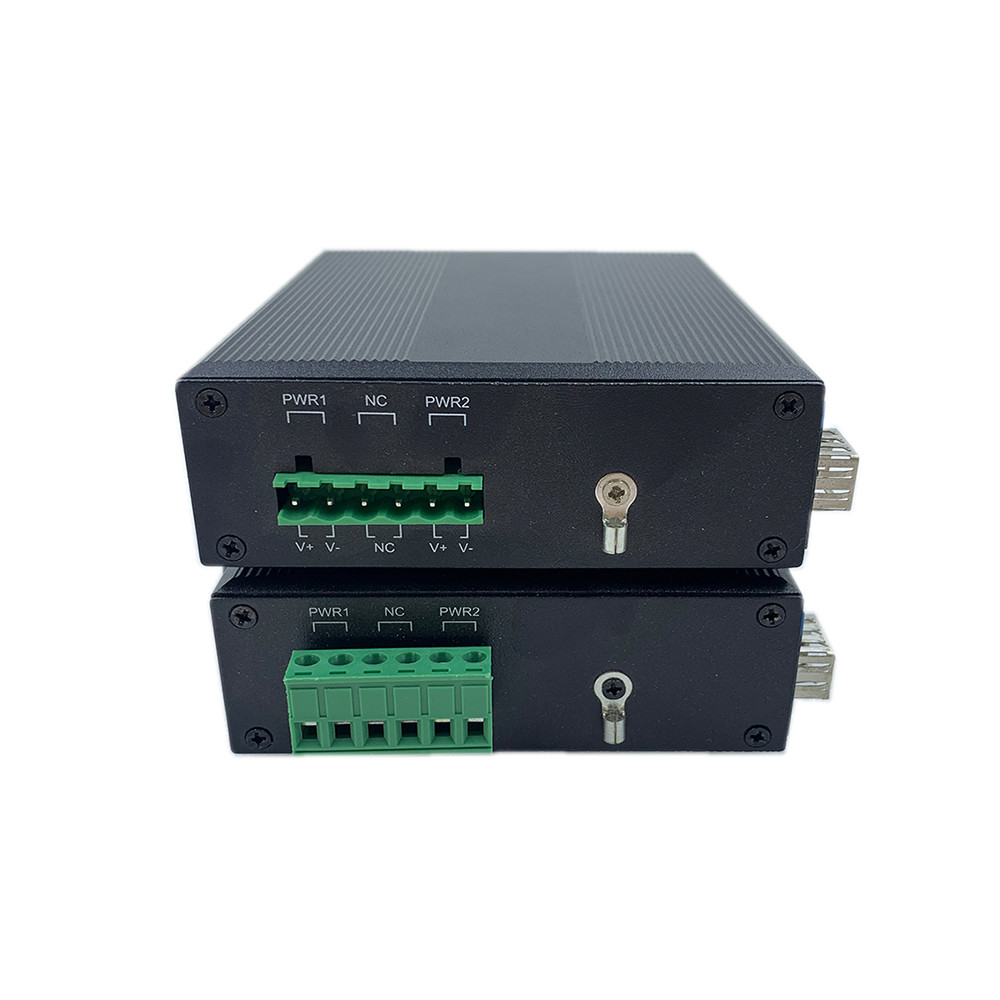

Redundant DC12V~DC52V input, typically DC12V/DC24V/DC48V

Reverse connection: support
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years, lifetime technical support



Application of 10/100Mbps Fiber Switch


Hardened Network Switch 10/100Mbps Fiber Fast Ethernet Unmanaged IP40 DC12V DC24V 0



Industrial Optical Module
OSPL1E06D-85 100BASE-FX(850nm)
OSPL1E06D 100BASE-FX
OSPL1E20D 100BASE-LX
OSPL1E40D 100BASE-EX
OSBL1E20D-35 100BASE-BX-U(TX 1310 RX1550)
OSBL1E20D-53 100BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC12V1.67A AC220V to DC12V1.67A, -30℃～70℃
IM-DAC220/DC24V1A AC220V to DC24V1A, -30℃～70℃



Hardened Network Switch 10/100Mbps Fiber Fast Ethernet Unmanaged IP40 DC12V DC24V 1



Shipping box information

Product size: 11.4*9.3*3.5cm

Inner box size: 23*16.5*5.8cm

Product weight: 0.35Kg

Packing weight: 0.45Kg



Master box size: 67*33*47cm

Packing quantity: 40Pcs

Packing weight: 20Kg


Hardened Network Switch 10/100Mbps Fiber Fast Ethernet Unmanaged IP40 DC12V DC24V 2
