1080P AHD CVI TVI CVBS Data RS485 Video Media Converter
Product Overview
Key Features
Specification
|
Optical |
|
|
Wavelength |
1310nm/1550nm |
|
Output Power |
-8~3dBm |
|
Optic fiber |
Single mode:20Km/40km, multimode:550m |
|
Receiving sensitivity |
30dBm |
|
Interface |
FC standard, ST/SC optional |
|
Video |
|
|
Channel Quantity |
4ch, from camera to control center |
|
Video Input /Output Amplitude |
typical 1Vpp (peak-to-peak), peak 1.2Vpp |
|
Video Input Impedance |
BNC 75Ω (unbalanced) |
|
BNC 75Ω (unbalanced) |
64MHZ |
|
Digital Bandwidth |
512MHZ |
|
Differential Gain Phase |
10%-90% APL DG<1% (typical) |
|
Video Bit Width |
8 bit |
|
S/N ratio |
>70dB |
|
Interface |
BNC |
|
RS485 Data |
|
|
Channel Quantity |
1ch, from control room to camera |
|
Data Rate |
115Kbps |
|
Electrical. Environmental. Mechanical |
|
|
Operating voltage |
DC 5V1A |
|
Operating temperature |
-20℃～+70℃ |
|
Storage temperature |
-45℃～+85℃ |
|
Weight |
0.40kg/piece (Net Weight), 1.26 kg/pair (Gross Weight) |
|
Dimension-standalone |
179mm ×128.5mm ×28.5mm |
Application
Ordering Details
|
OM615-4V↑1D↓WT/R-FC20 |
4ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC |
|
OM615-4V↑1D↓MT/R-FC5 |
4ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC |

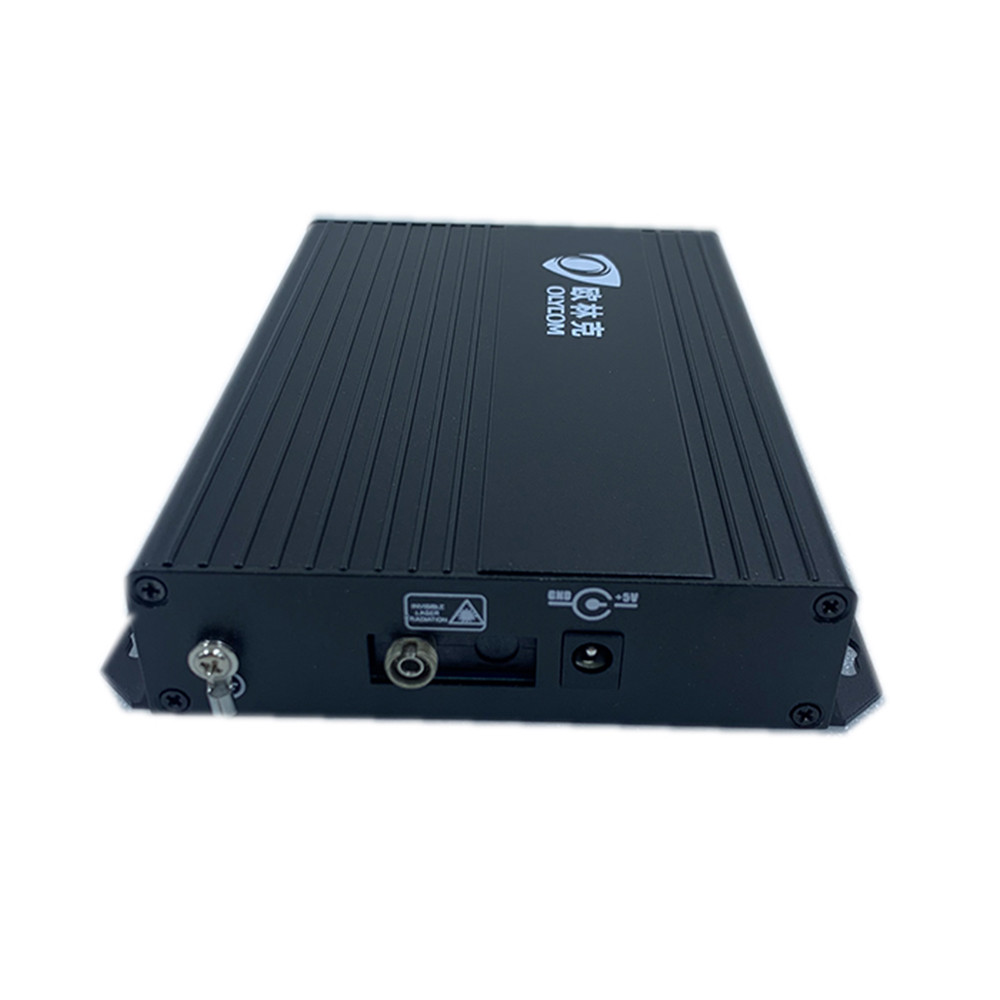

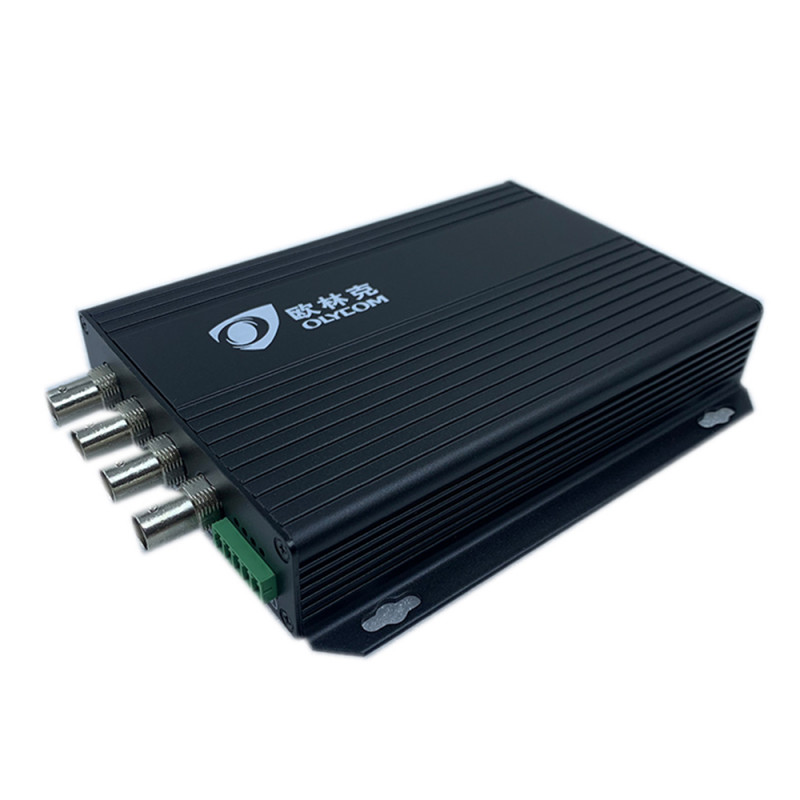

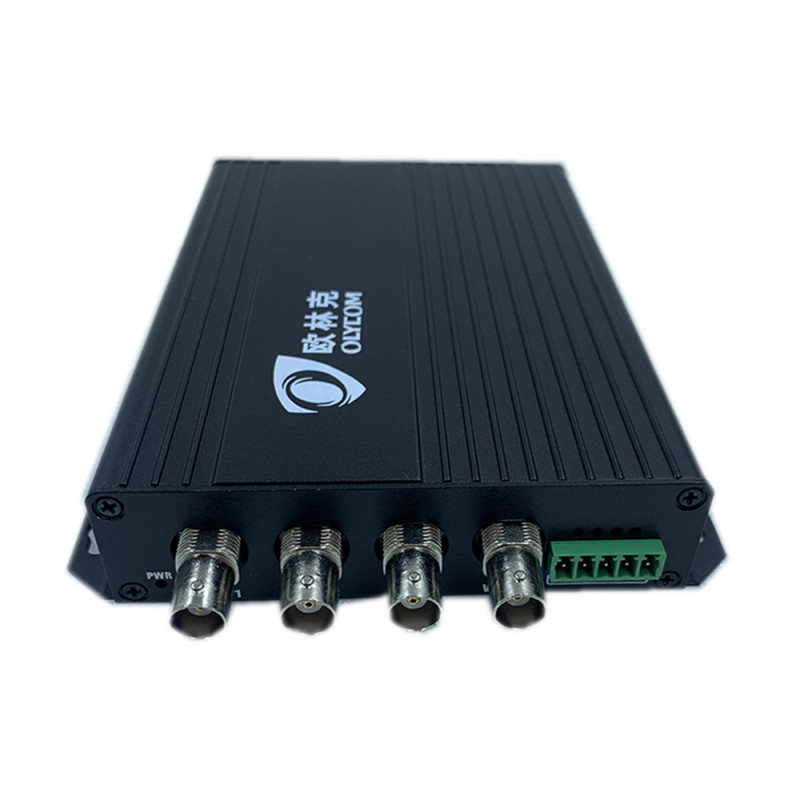

Product Photos
