60Km Transmission 6 Port 10/100/1000M Ethernet Switch

1 piece
60Km Transmission 6 Port 10/100/1000M Ethernet Switch
Features Gallery Product Description Request A Quote
Name: 6 Port 10/100/1000M Industrial Ethernet Switch
Material: Metal
Working Temperature: -40 ℃ ~ + 85 ℃
Input Voltage: DC 9-36V
Safety Class: IP40
Weight: 0.45kg
High Light:

60Km transmission 6 Port Managed Switch


Waterproof 6 Port Managed Switch


60Km transmission industrial SFP Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE、RoHS、FCC
Model Number: IM-FS240GE
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 6000 sets per month
Product Description

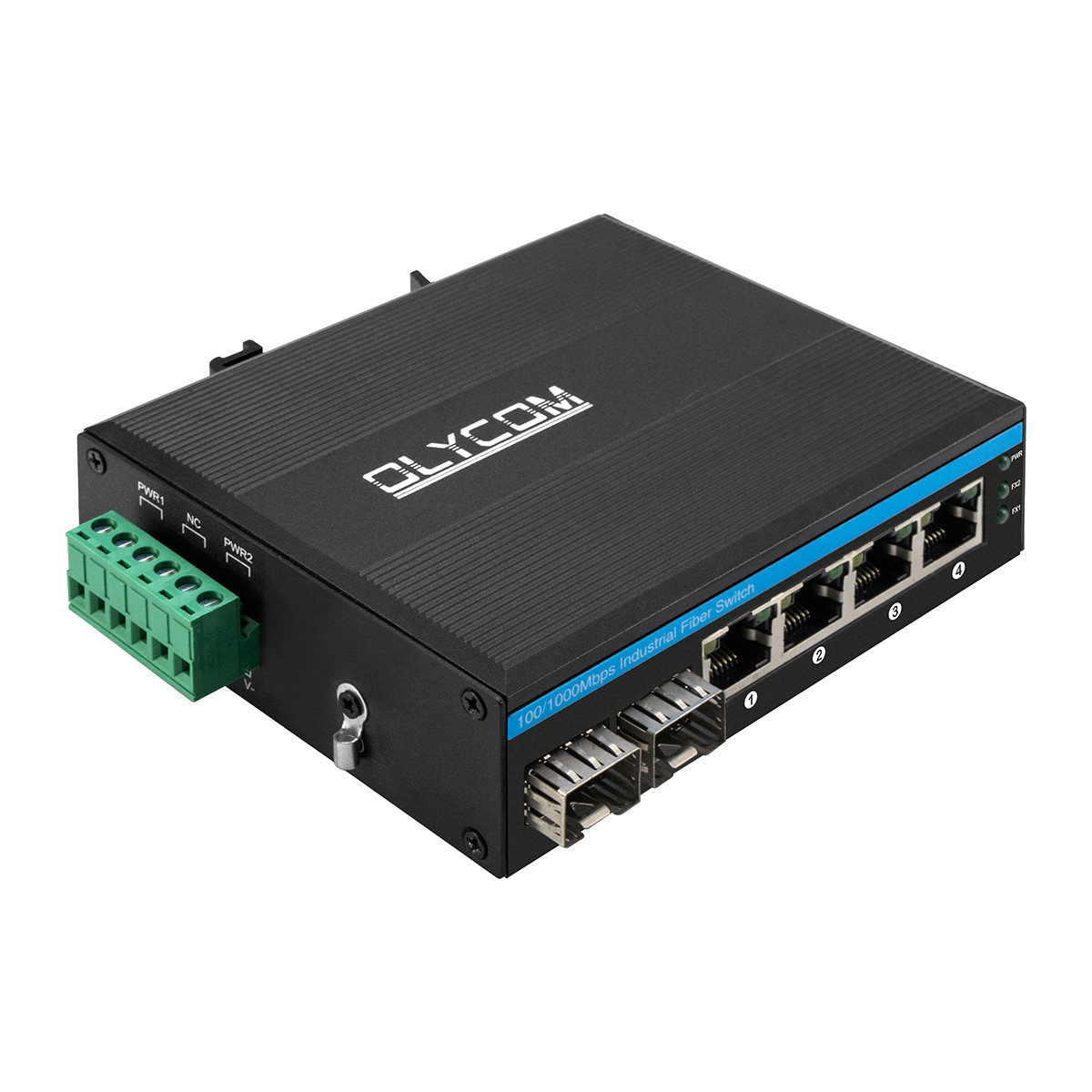

6 Port 10/100/1000M Industrial Ethernet Switch IP40 Waterproof


IM-FS240GE is the 10/100/1000 Mbps 6 port industrial Ethernet switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features

  • 4KV Ethernet surge protection, adapt to a harsh outdoor environment support Auto MDI/MDIX

  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Backpressure standard

  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant

  • A store-and-forward switching mechanism

  • Operating environment temperature:-40 ° ~85 ° c



Product Name 10/100/1000Mbps 6 Ports Industrial Ethernet Switch
Model No. IM-FS240GE

2 x 1000Mpbs SFP ports (Including two 60km SFP Modules)
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward
System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 unshielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

Input voltage:DC 9-36V
No-load power:5W
Reverse connection: support


Working temperature:-40°~ 85°C
Storage temperature:-40°~ 85°C
Working humidity:10%~90%,non-condensing
Storage humidity:10%~95%,non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration:IEC 60068-2-6
Freefall:IEC 60068-2-32
Shock:IEC 60068-2-27
Rail Traffic: EN 50121-4


CE Mark, commercial
CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting

Warranty Replacement within 1year; 5 years repairing



1. One product with two 60KM SFP Modules and one user manual are in one box.

2. 44pcs boxes are in one carton. (67*33*47cm)


Lead Time

Quantity(Pieces) 1-100 >100
Lead Time 3 days To be negotiated
