Remote Substation CCTV Upgrade Project: Industrial Fiber Surveillance Network

1. Project Background

A utility infrastructure customer required a reliable industrial surveillance network for a geographically distributed outdoor site that included:

• Electrical distribution zones
• Perimeter fencing
• Remote monitoring checkpoints
• Equipment shelters
• Access control gates
• Outdoor storage areas

Because the monitoring locations were spread across a large area, traditional copper Ethernet deployment was not practical due to:

• Transmission distance limitations
• High lightning exposure risk
• Electromagnetic interference from industrial equipment
• Outdoor environmental conditions
• Difficulty in centralized power distribution

The customer specifically requested a solution capable of:

• Long-distance fiber transmission
• Industrial-grade reliability
• Centralized surveillance management
• PoE support for multiple IP cameras
• Scalable future expansion
• Stable operation in harsh outdoor environments

To meet these requirements, the project adopted a fiber-based industrial Ethernet architecture using:

IM-FP888GW as the core aggregation switch

IM-FP21008GW as the outdoor PoE distribution switch

IM-WP054GE as the compact edge access switch

The final solution created a robust industrial CCTV backbone suitable for 24/7 utility and perimeter security monitoring.

2. Solution Architecture

Core Network Design: the solution was divided into three layers:

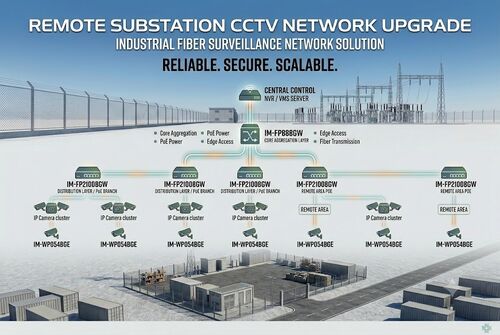

3. Network Topology

4. Device Roles

A. Core Aggregation Layer: IM-FP888GW

This Ethernet switch serves as the fiber aggregation center of the surveillance network.

Key Advantages

• 8 Gigabit SFP fiber ports
• Industrial managed architecture
• VLAN and traffic management
• Long-distance fiber aggregation
• Ring protection support
• Industrial EMC protection
• DIN-rail deployment

The IM-FP888GW aggregates all remote surveillance traffic and connects directly to the NVR/VMS platform.

It is especially suitable for:

• Utility substations
• Smart transportation
• Industrial campuses
• Mining environments
• Oil & gas facilities

The device supports industrial-grade operation and hardened protection for harsh environments.

B. Distribution Layer: IM-FP21008GW

This model is deployed at outdoor cabinets and remote surveillance poles.

Key Features

• 8 × Gigabit PoE ports
• 2 × SFP fiber uplinks
• IEEE802.3af/at/bt support
• Up to 90W PoE output
• Industrial temperature range
• ERPS ring support
• VLAN / QoS / SNMP management
• Surge protection

This DIN PoE switch powers high-consumption devices such as:

• PTZ cameras
• IR thermal cameras
• Wireless APs
• AI edge cameras

It also provides redundant fiber uplinks for uninterrupted surveillance operation.

C. Edge Camera Layer: IM-WP054GE

This compact switch is ideal for small camera clusters.

Deployment Examples

• Parking entrance
• Fence monitoring section
• Small warehouse
• Guard station
• Temporary outdoor deployment

Key Advantages

• Plug-and-play operation
• 4-port PoE downlink
• Gigabit uplink
• Compact industrial housing
• DIN-rail mounting
• 6KV surge protection
• Industrial wide-temperature design

This model reduces deployment complexity while maintaining industrial reliability.

5. Why Fiber is Critical in CCTV Networks?

Fiber transmission offers major advantages over copper Ethernet in industrial surveillance systems:

By combining industrial PoE switches with fiber uplinks, the customer achieved both reliable power delivery and stable long-distance transmission.

6. Real Deployment Benefits

After deployment, the customer achieved:

• Stable 24/7 surveillance operation
• Simplified maintenance
• Reduced outdoor cabinet complexity
• Centralized monitoring
• Faster troubleshooting
• Easier future expansion
• Lower downtime risk

The industrial design also significantly improved system reliability in high-temperature and high-humidity outdoor environments.

7. Recommended Application Scenarios

This architecture is highly suitable for:

• Smart city surveillance
• Industrial factories
• Utility substations
• Solar farms
• Oil & gas fields
• Railway monitoring
• Port surveillance
• Mining operations
• Campus security
• Highway monitoring

8. Conclusion

By combining:

• IM-FP888GW
• IM-FP21008GW
• IM-WP054GE

The customer successfully built a scalable industrial surveillance network with:

• Long-distance fiber transmission
• Reliable PoE delivery
• Industrial-grade protection
• Centralized management
• Future-ready scalability

This solution demonstrates how industrial Ethernet and fiber transmission technologies can significantly improve modern CCTV infrastructure performance and reliability.
