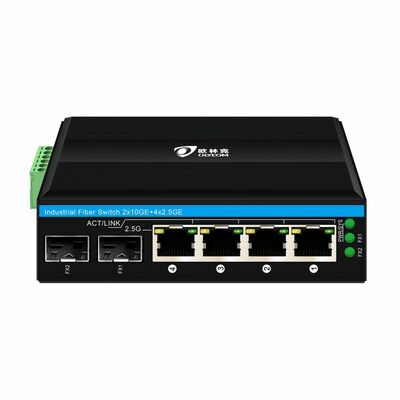

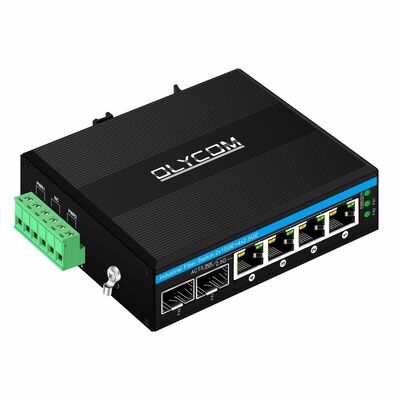

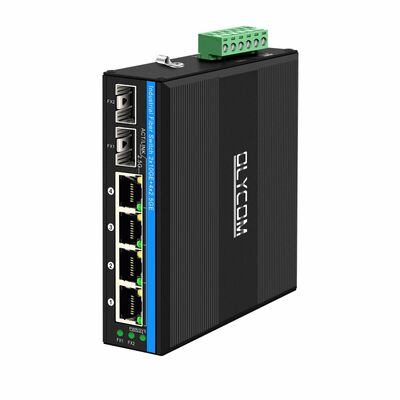

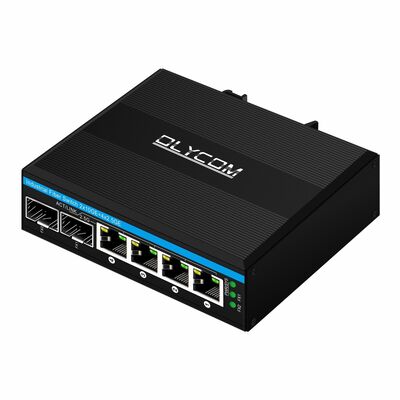

Industrial 2.5G PoE Fiber Switch 4 Port PoE+ with 2 SFP 10G Uplink DIN Rail
Key Features of Industrial 2.5G PoE Fiber Switch
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
- 4x 10/100/1000/2500Mbps Auto-sensing RJ45 ports
- 2x 1G/2.5G/10G Auto-sensing SFP fiber ports
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to15.4W under af standard, 30W under at standard to each PoE port
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
- Operating environment temperature: -40 ° ~75 ° c
Specification of 10G fiber switch
|
Product Name
|
10G Industrial POE Fiber Switch (2F+4TP)
|
|
Model No.
|
IM-FP2X44(2.5)
|
|
Port
|
SFP: 2x 1G/2.5G/10G rate auto adaptive
SM: 1310nm/1550nm, 20Km
1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km
RJ45: 4x10/100/1000/2500M UTP RJ45
Auto speed negotiation, full/half duplex, auto MDI/MDI-X
|
|
Switching features
|
MAC address table: 4K entries
Packet forwarding rate: 44.64 Mpps
Switching capacity: 40 Gbps
Jumbo frame support: 12KB
Forwarding mode: Store-and-forward
Latency: < 10 μs
|
|
Standards & Protocols
|
IEEE 802.3 (10Base-T)
IEEE 802.3u (100Base-TX)
IEEE 802.3ab (1000Base-T)
IEEE 802.3bz (2500Base-T)
IEEE 802.3ae (10GBASE-SR/LR/ER)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3af PoE (15.4W)
IEEE 802.3at PoE+ (30W)
|
|
Management
|
Unmanaged
|
|
PoE Function
|
PoE ports: Port 1/2/3/4
Output power: 15.4W ~ 30W
PoE pin assignment: 1,2,3,6 or 4,5,7,8
|
|
LEDs
|
Power/system LED, RJ45 port LEDs, SFP optical port LEDs
|
|
Power supply
|
DC 12~52V, dual power input with reverse polarity protection
|
|
Power Consumption
|
No load: 1.9125 W
Full load: 7.64 W
|
|
Mounting Method
|
DIN rail mounting / desktop standalone
|
|
Environment
|
Working temperature:-40°～ 75°C
Storage temperature:-40°～ 85°C
Working humidity:10%～90%,non-condensing
Storage humidity:10%～95%,non-condensing
|
MevvvvvfffchanicMechanical Drawingsal Drawings
Mechanical Drawings
Packing List:
- Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.
- The standard packing usually contains a main device, a warranty card and a user manual.
- Packing box dimension for 1pc: 23*16.5*5.8cm
- 20pcs in a packing box of 55.5*40*41cm dimension.
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
3. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
4. Can you supply a customized PVC label with my model on it?
A: Yes, there is a description, model name, and logo on the front PVC mask, all is available for customization.
5. What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
