Name: 8 Port Gigabit Managed Network Switch Realtek Based AC Input SFP Fiber Uplink
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM280GW
Price: 57.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: 8 Port L2 Managed Network Switch

Fiber Port: 2*1G SFP

Copper Port: 8*10/100/1000Mbps

Power Input: Single AC110V~240V

Highlight:

Realtek Based Gigabit Managed Network Switch

8 Port Gigabit Managed Network Switch

AC Input Gigabit Managed Network Switch

Basic Infomation

Place of Origin: Shenzhen, China

Brand Name: Olycom

Certification: CE RoHS FCC ISO9001

Model Number: OM280GW

Payment & Shipping Terms

Packaging Details: 1 piece in a carton, 1.54KG Gross weight

Delivery Time: 4~8 working days

Payment Terms: T/T, PayPal

Supply Ability: 2000Pcs per month

Gallery

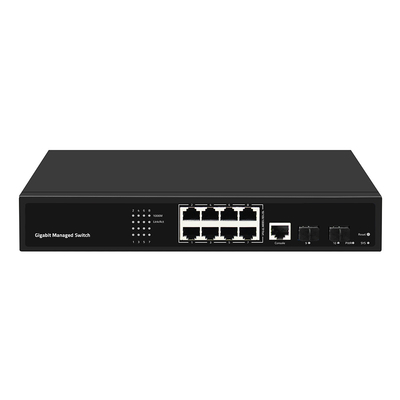

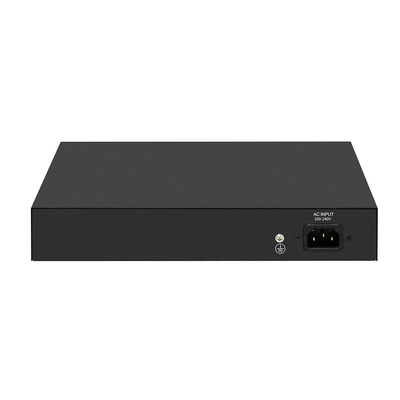

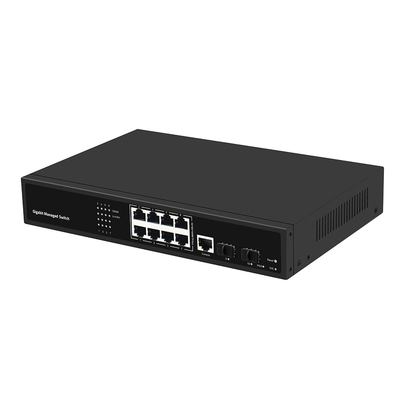

8 Port Gigabit Managed Network Switch Realtek Based AC Input SFP Fiber Uplink

Product Description

10 Port Full Gigabit 8 Port Network Managed Fiber Switch

Features of 8 Port Managed Switch

8 x 10/100/1000Mbps auto-sensing Ports, 2x 1000Mbps SFP Ports, 1 x Console Port;
Support IEEE802.3/IEEE802.3u/IEEE802.3ab/IEEE802.3z, store-and-forward;
Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
Support port auto flip (Auto MDI/MDIX)；
Panel indicator monitoring the status and help failure analysis;
Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;
Support WEB, TELNET, CLI, SSH, SNMP, RMON management;
Surge Protection: General 4KV(level B), ESD 8KV air, 6KV contact(level C)

Specification of Gigabit Network Switch

I/O Interface
Power	AC 100-240 V
Ethernet	810/100/1000Mbps Ethernet Port 21000Mbps SFP Port 1*Console Port
Performance
Bandwidth	20Gbps (non-blocking)
Packet Forwarding rate	14.88Mpps
Packet Buffer	4Mbit
Memory Capacity	128Mbyte
Flash Capacity	16Mbyte
MAC Address	8K
VLANs	VLAN range 1-4094, with a maximum active VLAN of 256
Jumbo Frame	10Kbytes
Transfer Mode	Store and forward
Standard
Network protocol	IEEE802.3: 10Base-T IEEE802.3u :100Base-TX IEEE802.3ab: 1000Base-TX IEEE802.3z :1000Base-FX IEEE 802.3x: Flow control IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q: VLAN Bridge Operation IEEE 802.1x: Client/Server Access Control and Authentication Protocol IEEE 802.3ad: Standard method for performing link aggregation IEEE 802.1d: STP IEEE 802.1s: MSTP IEEE 802.1w: RSTP
Industry Standard	EMS: EN61000-4-2 (ESD). EN61000-4-5 (Surge)
Network Medium	10Base-T : Cat3. 4. 5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
optical characteristics	multi mode: 850/1310nm (0-2KM) Single mode: 1310/1550/1490nm(0-120KM)
Protection
Security Certificate	CE. FCC. RoHS

Indication
LED Indicators	PWR. SYS. Link. ACT
Mechanical
Structure Size	Product Size: 26818144mm Package Size: 31226284mm Product Net-Weight: 1.01KG Product Gross-Weight: 1.54KG
Packing Info	MEAS: 540435332mm Packing Qty: 10PCS Packing weight: 16.4KG
Power Voltage	Power Input Voltage: AC 100-240 V Power Output: 12V2A
power	Maximum 24W

Software Function

L3 Function
IPv4	IPv4 VLAN Interface
	IPv4 Static Routes
	ARP
IPv6	IPv6 VLAN Interface
	IPv6 Static Routes
	IPv6 ND
L2 Function
Port	Port Switch
	Port Description
	Port Speed
	Port Duplex
	Port Flow Control
	Jumbo, Up to 10K
	EEE
	Fiber Module(DDM)
Link Aggregation	Supports load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	Supports LACP
	Up to 8 groups
Storm Control	Boardcast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
	Port Security MAC Address
	Protect/Restrict/Shutdown
Port Isolation
Port Rate-limit
Loopback Detection
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel (Q-in-Q Tunnel)
	Congurable VID from 1 - 4094; Max. 256 static VLAN groups
	Voice VLAN
	MAC VLAN
	Surveillance VLAN
	Protocol VLAN
	GVRP
MAC Address	Dynamic Address
	Static Address
	Filtering Address
Spnning Tree Protocol	STP/RSTP/MSTP
	BPDU Filter
	BPDU Guard
	Edge Port
LLDP	LLDP
LLDP	LLDP MED
Multicast	IGMP Snnoping
	IGMP V1/V2/V3
	Router Port
	Static IGMP group address
	IGMP groups filtering
	Querier
	MLD Snooping
	MVR
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	802.1P Priority
	IP TOS Priority
	IP DSCP Priority
	Supports up to 8 queues per port
	Priority Remarking
Services
DHCP	DHCP Server
	IP Pool
	Static Binding
	DHCP Relay
Access Protocol	HTTP
	HTTPS
	Telnet
	SSHv2
	Manager ACL
	Session Timeout
	Password Retry Count
	Silent Time
Security
AAA	RADIUS
	TACACS+
	802.1X
	Base on port/MAC/local/WEB
DHCP Snooping	Global/VLAN
	Option 82
	Circuit ID
IP Source Guard
Dynamic ARP Inspection
DoS
ACL	MAC ACL
	IPv4 ACL
	IPv6 ACL
Diagnostics
Syslog	Logging Message
Syslog	Remote Server
Ping
Traceroute
Copper Test
UDLD
Management
Manager Access	Console
	HTTP/HTTPS
	Telnet
	SSH
	SNMP
Manager IP	Static Address
	DHCP Client
	Supports IPv4 and IPv6 address
	Manager VLAN
	DNS
Time Synchronization	SNTP
Time Synchronization	Manual Time
SNMP	V1/V2C/V3
	Community
	V3 User
	Group
	Trap Host
SNMP MIB	RFC 1213 MIB-II
	RFC 1493 Bridge MIB
	RFC 1643 Ethernet MIB
	RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
	RFC 2863 Interface MIB
	LLDP
	Private MIB
RMON	Statistics
	History
	Event
	Alarm
User
Firmware	Firmware Upgarde
Configuration	Upload and download
Save
Restart
Factory Defaults
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2

Application

Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

8 Port Gigabit Managed Network Switch Realtek Based AC Input SFP Fiber Uplink 0

8 Port Gigabit Managed Network Switch Realtek Based AC Input SFP Fiber Uplink 1
