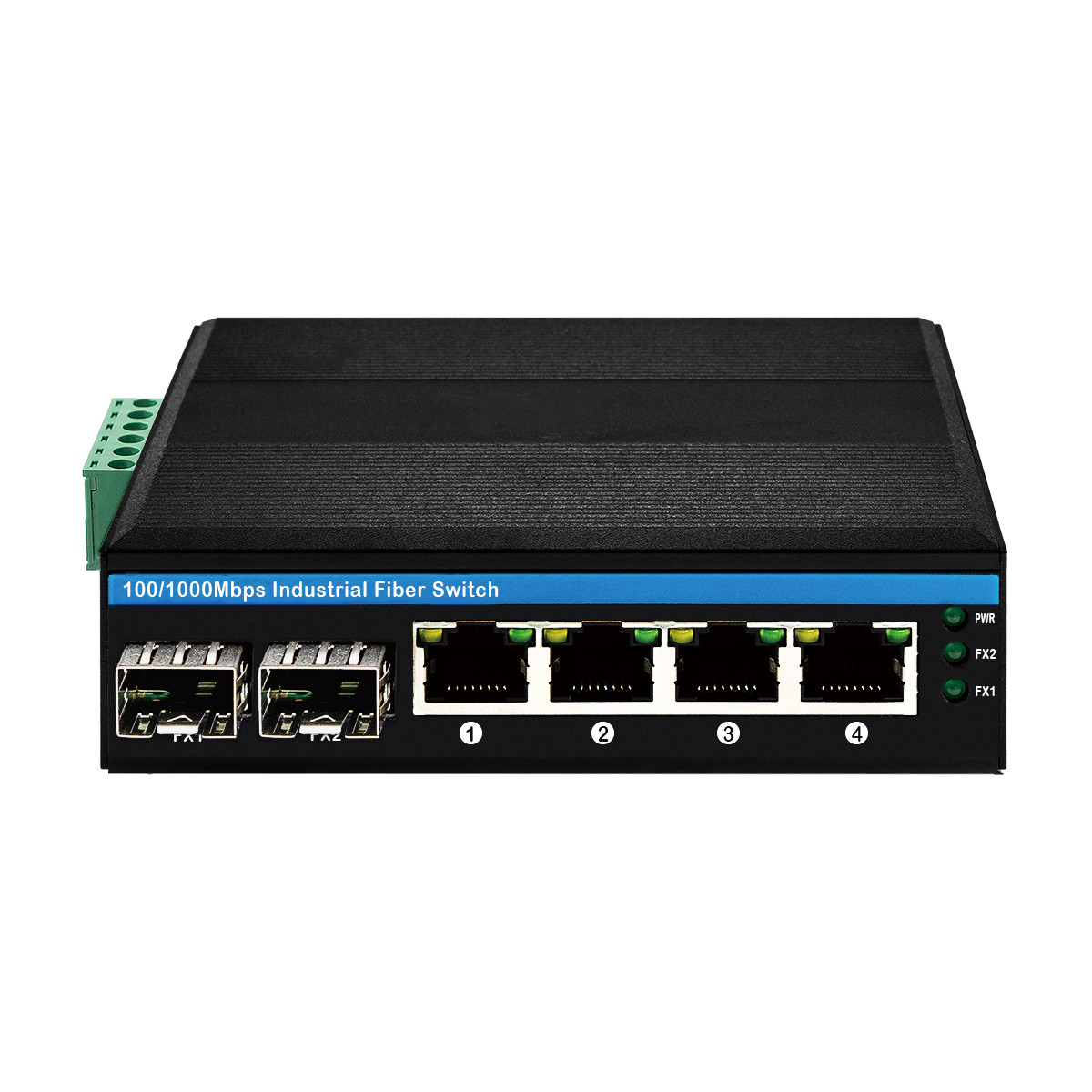

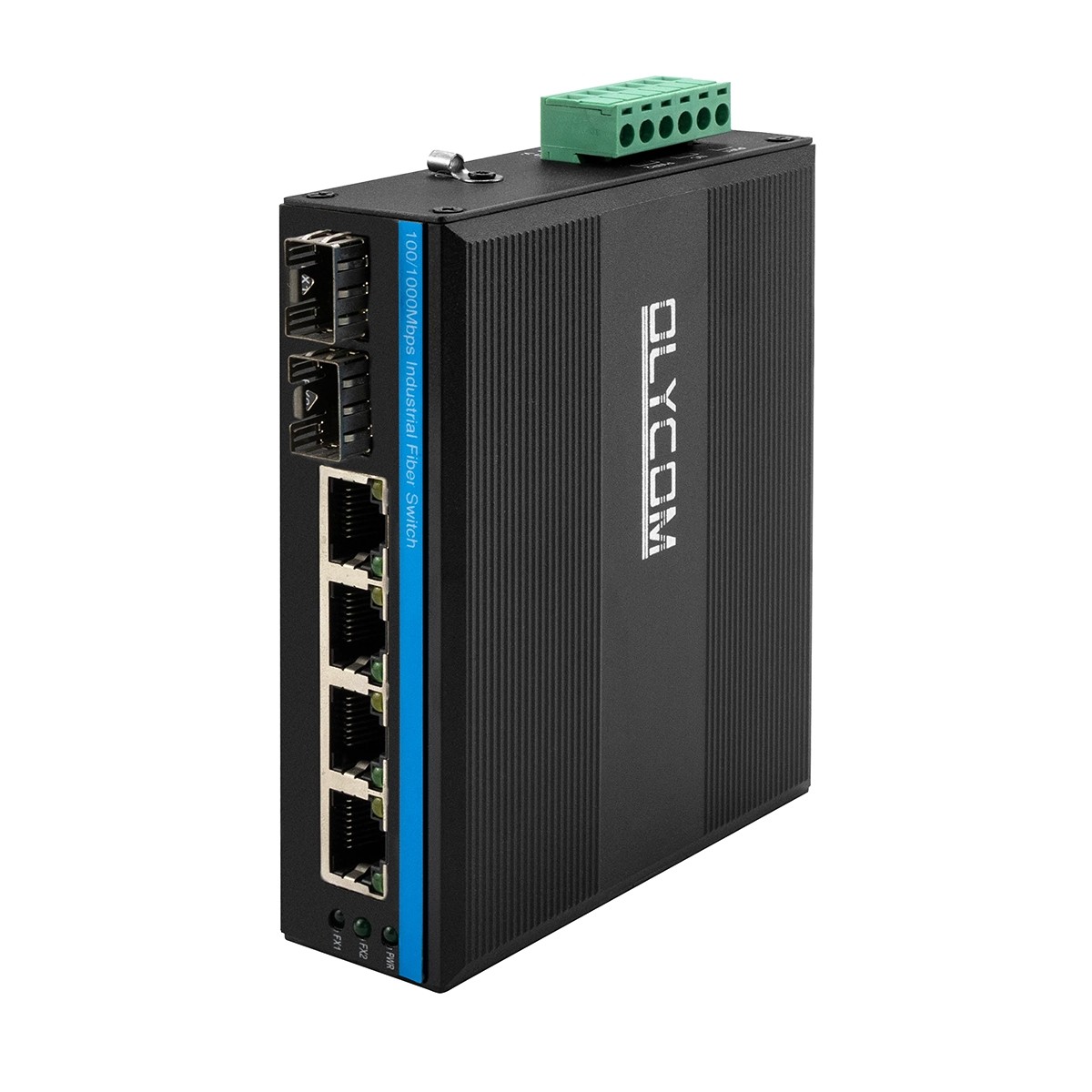

4-Port Solar or Battery Powered PoE Switch
Bullets points
- Dual Input: DC24V and IEEE802.3af/at PoE output with built-in voltage booster(if you do not need Fiber ports, please check our another PoE switch IM-WP054BGE)
- Full Gigabit Speed: 2*100/1000M auto-adaptive SFP fiber ports and 4*10/100/1000Base-T Ethernet PoE ports
- Industrial Design: Compact IP40 rugged metal case, -40°C to 75°C, Support DIN-Rail & Wall Mount
- Application: Solar power system, RV/Vehicle/Truck/Bus and VoIP/Access control systems
Key Features
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Detect the PoE models of electrical equipment
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable
Technical Data
| Product Name |
100/1000Mbps Industrial Solar PoE Switch |
| Model No. |
IM-FP244BGE |
| Port |
2x 100/1000Mpbs SFP ports
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500 meters
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth: 12Gbps (non-traffic jam)
Packet Forwarding Rate: 8.928Mpps
MAC: 4K
Queue Buffer: 1.75M
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
|

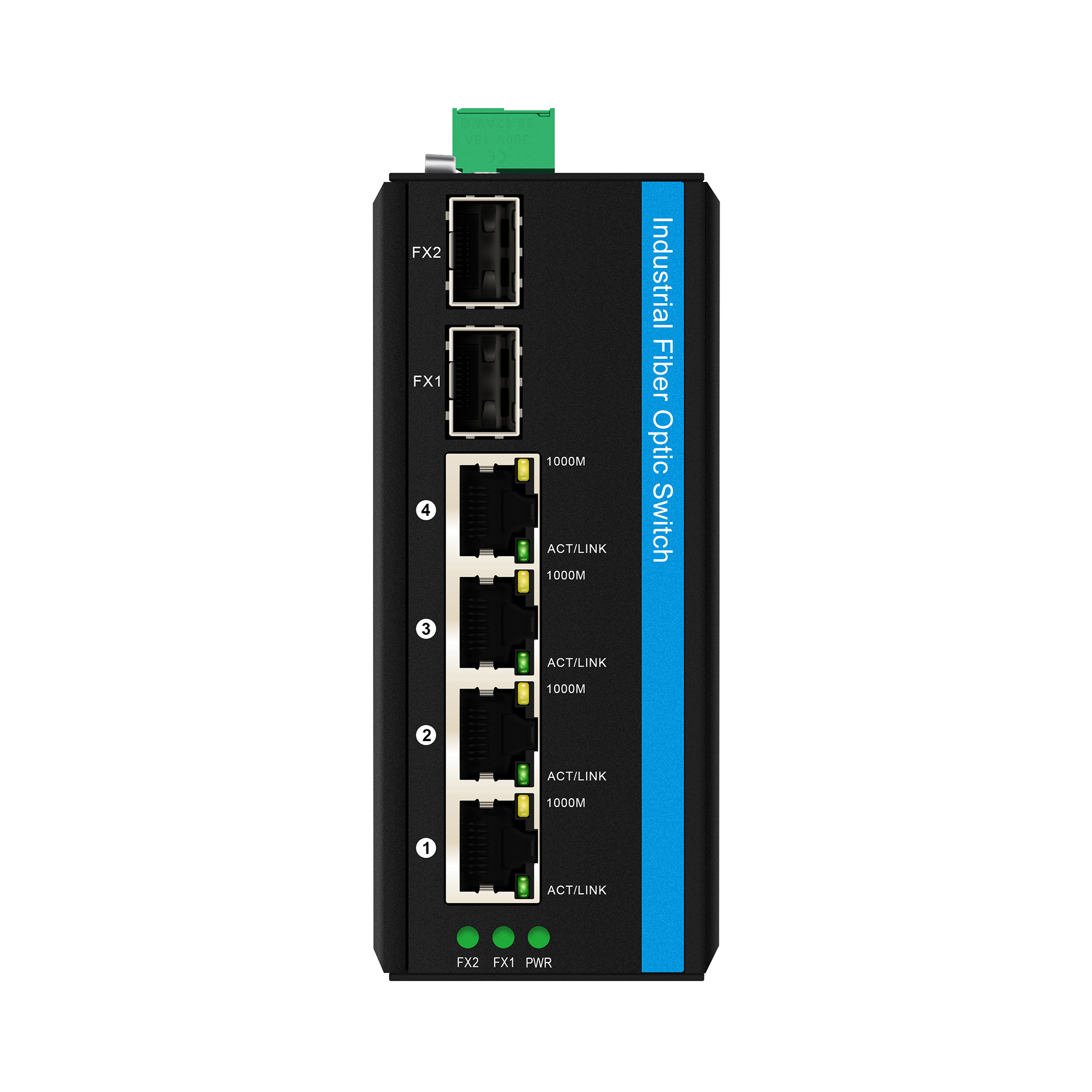

| LEDs |
Power, PoE, fiber
PWR: Power
Fiber: FX1/FX2
Orange: PoE indicator
Green: ACT/LINKS
|

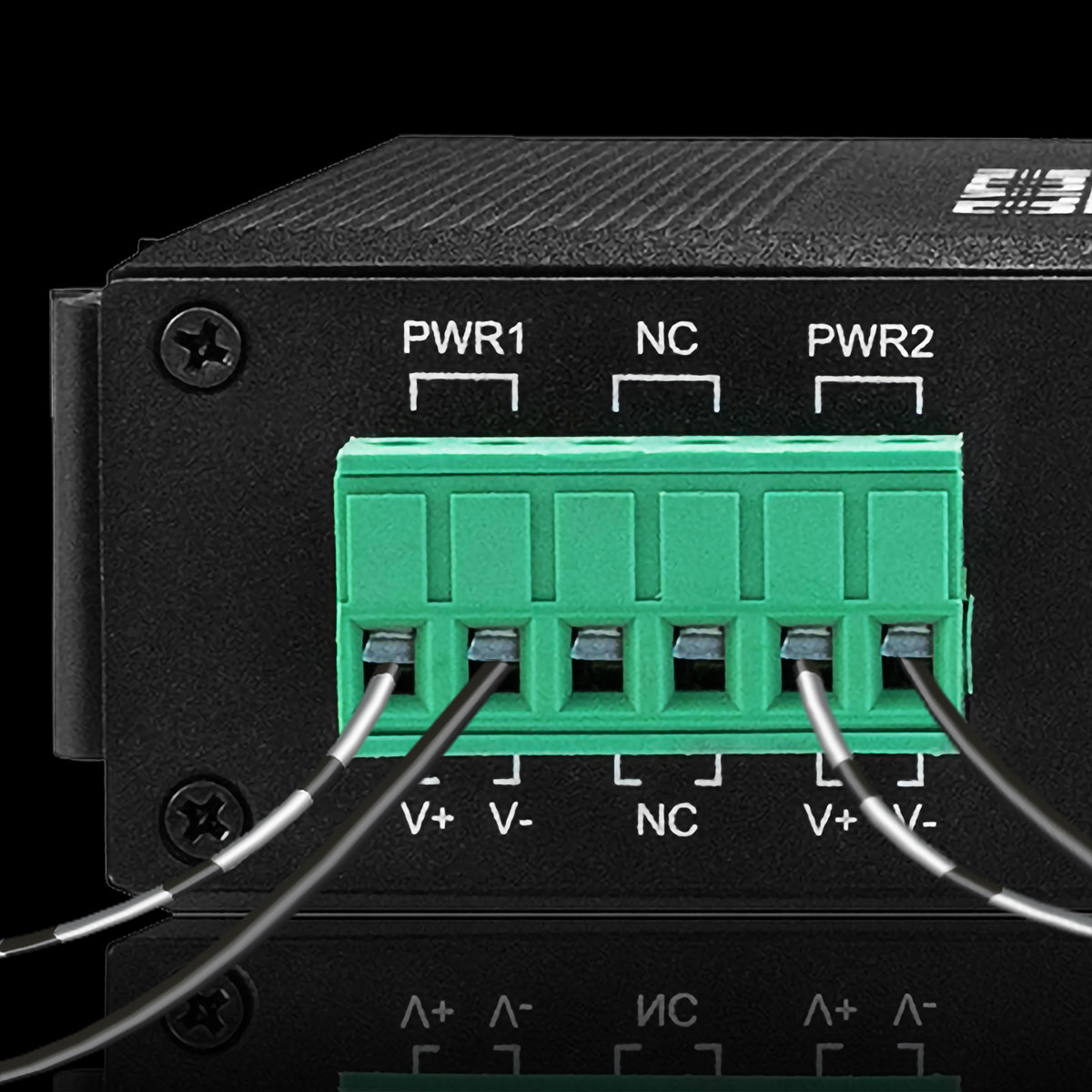

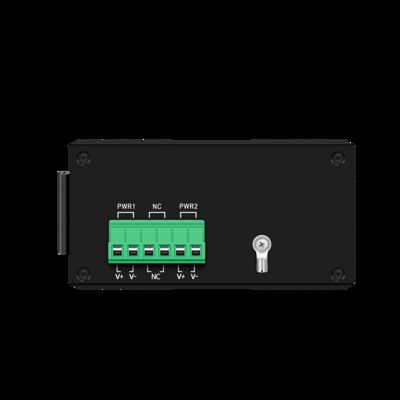

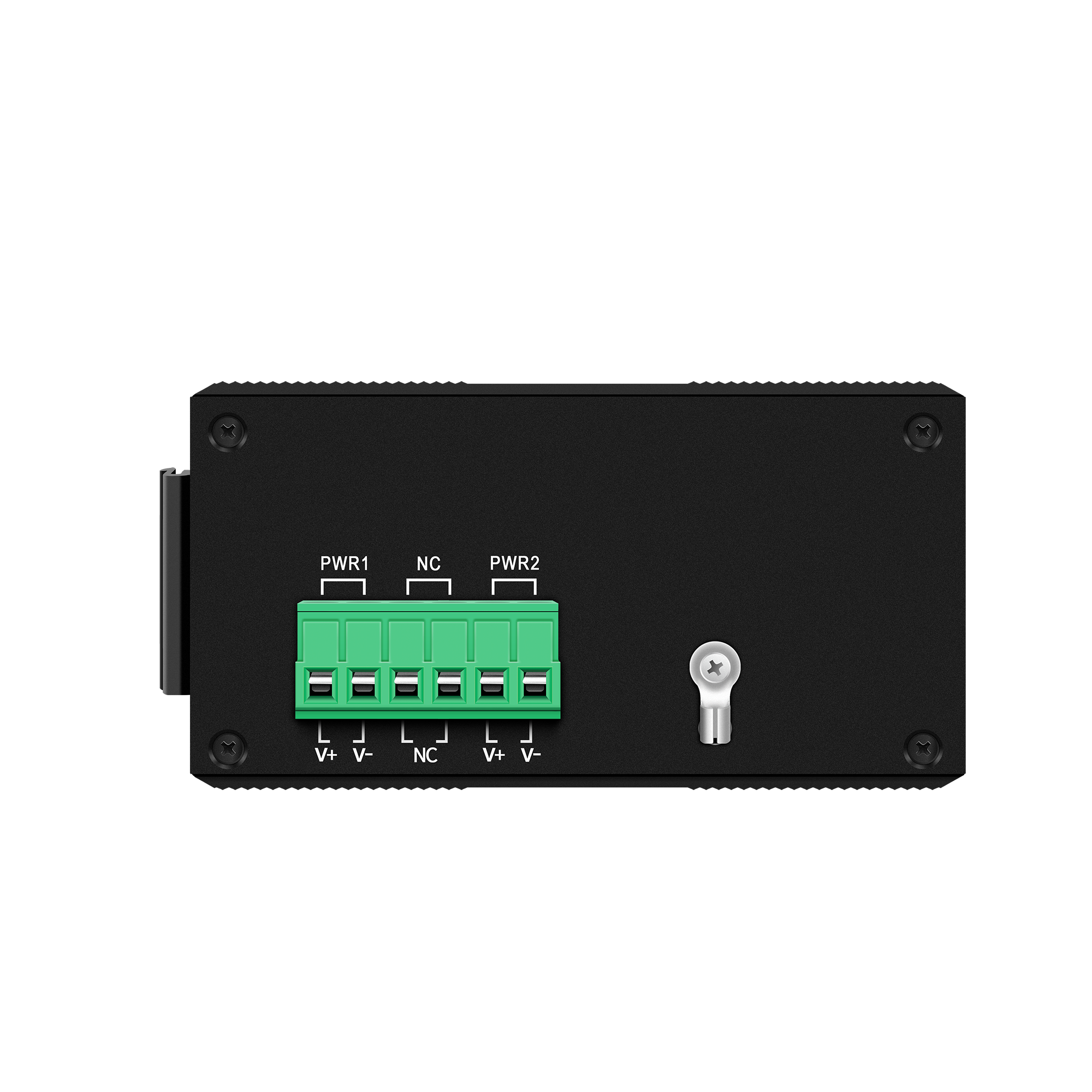

| Power supply |
POE power supply input voltage: DC24V
Single PoE power supply output power: 30W(port 1~4)
Total budget: 120W
PoE output voltage: 48V
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
ESD:IEC61000-4-2,±15KV air, ±6KV contact
EFT:IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5,Differential ±2KV, Common±6KV
|
| Certification |
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B (Class B) ANSI C63.4:2014
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 114*93*35mm

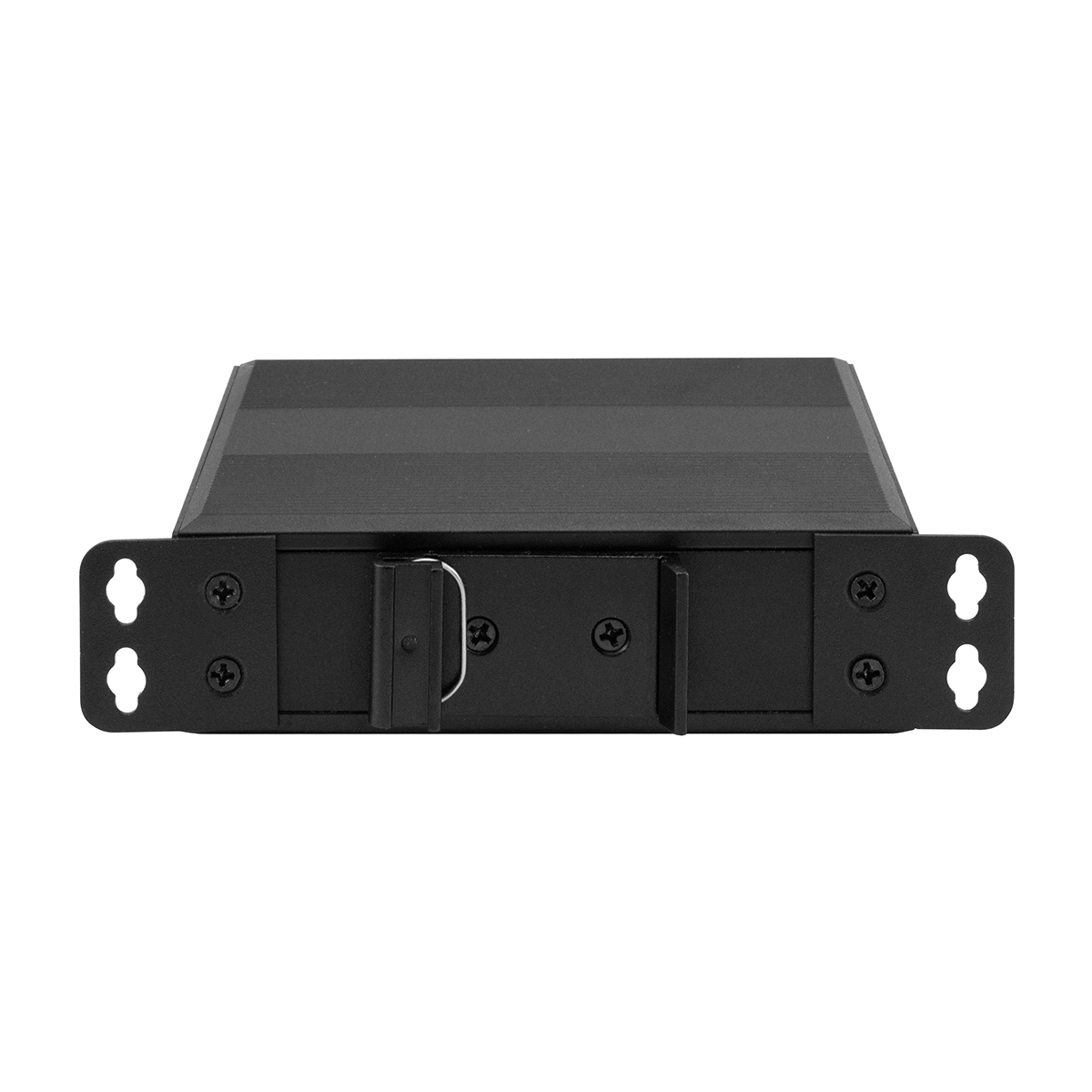

Mounting method: Din-rail/Wall mounting
Net/Gross Weight: 0.35kg/0.45kg
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Dimension
Accessory
| Industrial SFP Transceiver |
| OSPL1E06D-85 |
100BASE-FX(850nm) |
| OSPL1E06D |
100BASE-FX |
| OSPL1E20D |
100BASE-LX |
| OSPL1E40D |
100BASE-EX |
| OSBL1E20D-35 |
100BASE-BX-U(TX 1310 RX1550) |
| OSBL1E20D-53 |
100BASE-BX-D(TX 1550 RX1310) |
| OSPL1G05D |
1000BASE-SX |
| OSPL1G06D |
1000BASE-SX(1310nm) |
| OSPL1G20D |
1000BASE-LX |
| OSPL1G40D |
1000BASE-EX |
| OSBL1G20D-35 |
1000BASE-BX-U(TX 1310 RX1550) |
| OSBL1G20D-53 |
1000BASE-BX-D(TX 1550 RX1310) |
| Industrial Power Adapter |
| IM-DAC220/DC48V2.5A |
AC220V to DC48V2.5A, -40℃～80℃ |
| IM-DAC220/DC48V5A |
AC220V to DC48V5A, -40℃～80℃ |
| IM-DAC220/DC48V10A |
AC220V to DC48V10A, -40℃～80℃ |
Product Query
1, Can I connect it with a non-PoE device?
Yes, it is 4*auto-sensing PoE ports detecting if the connected devices support PoE or not.
There will ONLY be network transmission if it is not 802.3af or 802.3at compliant.
2, What is the uplink speed?
100M/1000Mbps speed, for the SFP uplink, it also supports auto-sensing.
That is to say, it works when you plug in a 155Mb/s OR 1.25Gb/s fiber transceiver.
3, Which pin carries PoE?
Pins 1/2, 3/6 is for data pairs while Pins 4/5, 7/8 carries PoE output.
4, Can I use a battery to start your device?
Yes, as long as the voltage stands in DC12V~DC48V and the power Pins are properly connected.
Application
1, Low-voltage PoE system
2, In-vehicle Network
3, CCTV Monitoring
General Query
Is it managed?
A: Web Managed Version is available, model name: IM-FP244BGM
What installation method does it support?
A: It supports Din Rail and wall mounting.
If a special mounting kit is required, it is OK, we dealt with it before.
Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
Can I have my logo on the device?
A: Yes, we are an OEM manufacturer.
Please just send your logo in PS/AI format, we will take care of the rest.
