Managed Industrial PoE Switch poe af/at/bt 240W DIN Rail Industrial Ethernet Switch
for Smart Highway Surveillance System
Product Introduction

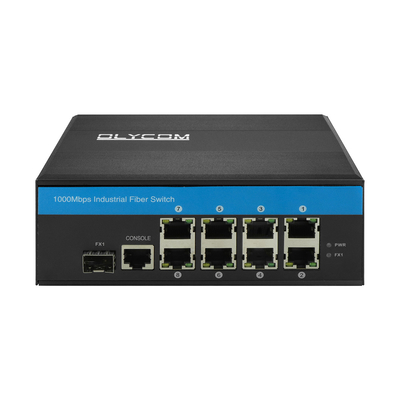

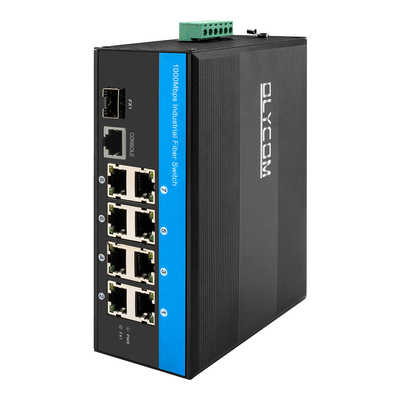

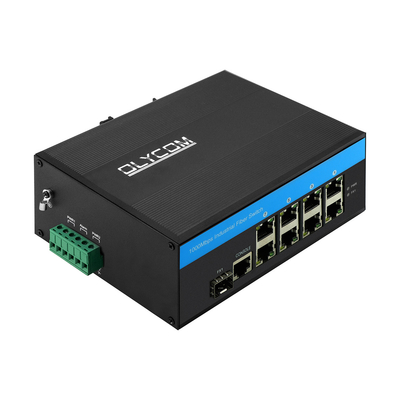

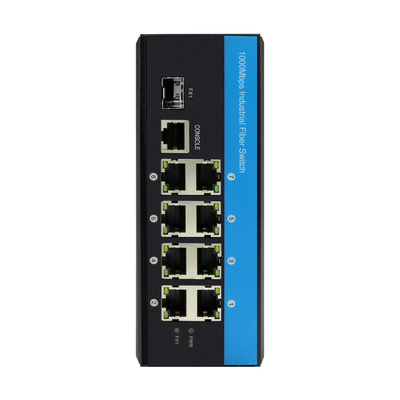

The IM-FP188GW is a managed industrial Gigabit PoE fiber switch designed for harsh industrial and outdoor networking environments. It features 8 Gigabit PoE RJ45 ports and 1 Gigabit SFP fiber uplink port, providing stable data transmission and power supply for IP cameras, wireless APs, and industrial Ethernet devices.
Built with industrial-grade components, the switch supports IEEE 802.3af/at PoE standards, wide operating temperature from -40°C to +75°C, 6KV surge protection, and advanced Layer 2 management functions including VLAN, QoS, STP/RSTP/MSTP, ERPS ring protection, IGMP Snooping, and SNMP management.
Its rugged IP40 metal housing and DIN-rail mounting design make it ideal for industrial automation, intelligent transportation systems, outdoor surveillance, smart city infrastructure, and remote networking applications.
Specificaiton of Managed Industrial PoE Switch
| Product Name |
10/100/1000Mbps Managed Industrial POE Fiber Switch (1F+8TP) |
| Model No. |
IM-FP188GW |

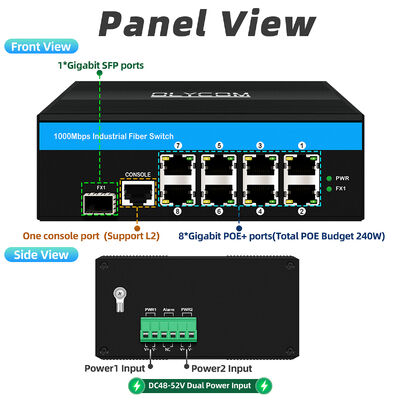

| Port |
1 x 1000Mpbs SFP port
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Standard |
IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID |
4096 |
| Jumbo Frame |
9.6KB |
| MAC Address Table Size |
8K |
| Switching features |
Transmission mode:storage and forward
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V),
Single PoE power supply output power: 30W (port 1~8)
(802.3bt standards required special instructions)
|
| Environment |
Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
|
| Safety |
CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell; Safety class:IP40;
Dimension:158 x 114.8 x 60mm;

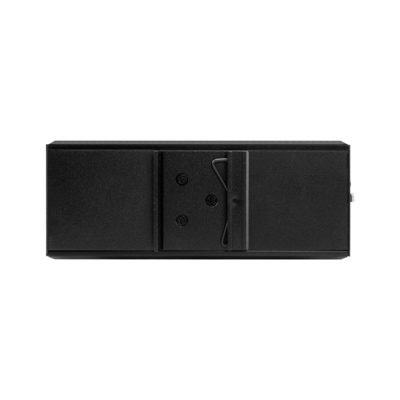

Mounting method:Din-rail mounting
|
| Warranty |
3 years |
Application Scenario – Smart Highway Surveillance System
Challenges in Highway Surveillance
Highway and roadside surveillance systems often face several deployment challenges:
- Long transmission distance between monitoring points
- Unstable outdoor environments with lightning and surge risks
- High temperatures, dust, humidity, and vibration
- Difficult maintenance and network downtime risks
- Requirement for uninterrupted HD video transmission
Traditional commercial switches are not reliable enough for these harsh outdoor conditions.
Industrial Ring Network Redundancy
Support for STP/RSTP/MSTP and ERPS ring protection helps maintain network communication even if one network link fails.
This improves:
- System reliability
- Network recovery speed
- Traffic monitoring continuity

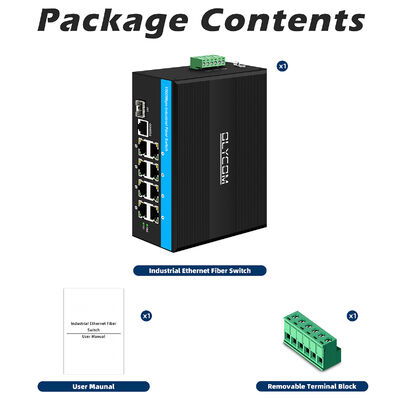

Packing List:
| PACKING LIST |
CONTENT |
QTY |
UNIT |
| Managed Industrial PoE Switch |
1 |
SET |
| User Manual |
1 |
PC |
| Removable Terminal Block |
1 |
PC |
| Note: Managed Industrial PoE Switch does not include the power supply and SFP module. |
FAQ:
1.What is the power input?

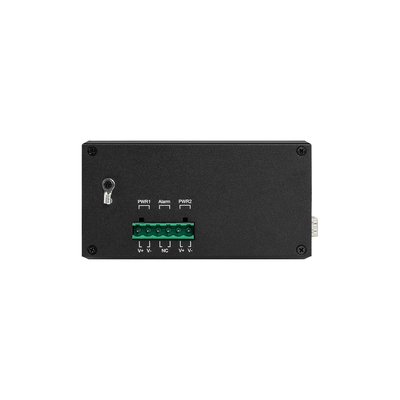

A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2.Does your switch support 155Mb/s tranceivers?
A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.
3.Can you supply a customized PVC label with my model on it?
A: Yes, there is description, model name and logo on the front PVC mask, all is available for customization.
4.What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
5.What is the PoE output voltage?
A: Its DC48V for 802.3af/802.3at/802.3bt compliant powered devices such as PoE cameras or PoE routers.
If the PD takes 24V power, then please use a PoE splitter to connect our switch and powered device.
