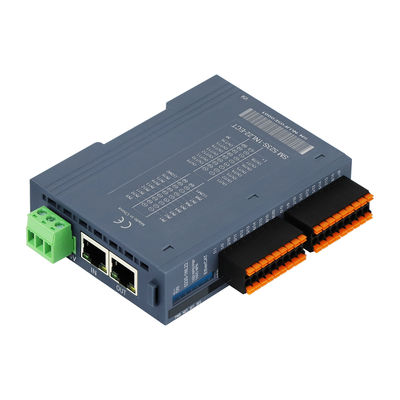

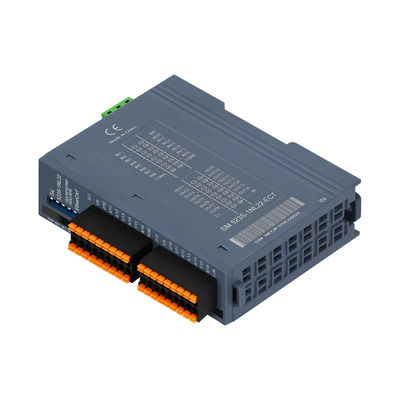

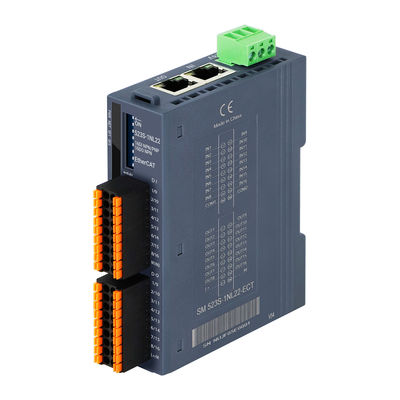

EtherCAT Remote I/O Module PLC Remote IO Module 16DI+16DO DC24V
Input 2RJ45 IP20 Industrial Control System
Product Features of EtherCAT PLC Remote IO Module
1. High-Speed EtherCAT Communication
- Supports EtherCAT industrial Ethernet protocol for real-time automation control
- Equipped with dual 100M RJ45 ports for stable and fast communication
- Fast I/O response time as low as 500μs
- Supports up to 255 EtherCAT slave stations per segment
2. Flexible Digital I/O Configuration
- Built-in 16DI + 16DO (NPN output)
- Ideal for sensors, switches, relays, motors, and solenoid valve control
- Supports industrial signal acquisition and actuator control simultaneously

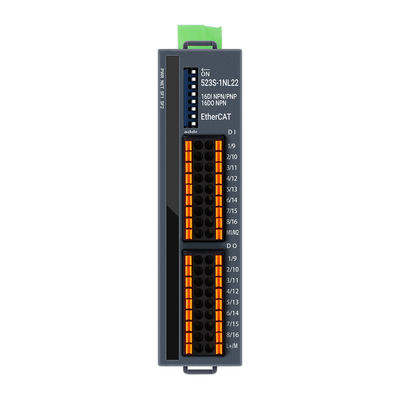

- Easy station address configuration via 8-bit dial switch
3. Industrial-Grade Reliability
- Reverse polarity protection and surge absorption design
- Overcurrent protection improves equipment safety
- Wide operating temperature range: -20°C to 60°C
- DIN rail installation for industrial control cabinets
4. Compact and Easy Integration
- Compact size saves cabinet space
- Standalone EtherCAT slave module without additional expansion requirements
- XML configuration files included for quick PLC integration
- Compatible with mainstream EtherCAT master controllers
Specification of EtherCAT PAL I/O system
| Model |
OM52xS EtherCAT slave module |
| Technical Specifications |
| Working Voltage |
24VDC (voltage range 18VDC~28VDC) |
| Operating Current Loss |
Based on different product models, please refer to the product manual for details |
| Power Protection |
Anti reverse connection protection, surge absorption |
| Communication Interface |
2*RJ45 |
| Power Terminal Type |
Plugged connector, screw wiring connection port |
| Signal Terminal Type |
Plugged connector, straight in PUSH-IN wiring port |
| Display Indication |
Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light |
| Protocol |
EtherCAT |
| Master-slave categories |
standalone slave devices |
| Main IO points |
Yes, please refer to the ordering data for details |
| Overcurrent Protection Threshold |
1.5A, 5ms |
| IO Response Time |
Minimum 500us |
| Scalability |
Do not support Extension |
| Cable length (shielding) |
Maximum 500m |
| Cable length (unshielded) |
The maximum length of the input point is 300m, and the maximum length of the output point is 150m |
| Slave Station Settings |
| Address Settings |
Configuration by dial switch or master station |
| Maximum number of Stations per Segment |
255 (The specific number of supported stations is determined by the master station) |
| Work Environment |
| Working Temperature |
-20~60℃ |
| Working Humidity |
5%~90% (non-condensation) |
| Protection Grade |
IP20 |
| Dimensions(l* w * h) |
27mm*94mm*114mm |
Packing
Typical Applications
1. Automated Packaging Machines
- Real-time control of sensors and pneumatic actuators
- Reduces packaging errors and machine downtime
2. Conveyor and Material Handling Systems
- Synchronizes conveyor motors and photoelectric sensors
- Improves sorting efficiency and signal stability
3. Automotive Manufacturing Lines
- Collects production line sensor signals in real time
- Controls robotic arms and assembly actuators
4. CNC and Machine Tool Automation
- Enables fast communication between PLC and field devices
- Improves machining precision and response speed
5. Smart Factory and Industrial IoT
- Suitable for distributed industrial control systems
- Supports centralized monitoring and remote diagnostics
FAQ:
1. How can this module reduce machine downtime?
The OM523S-1NL22-ECT includes surge protection, reverse polarity protection, and overcurrent protection. These functions help prevent failures caused by unstable power supply or incorrect wiring, reducing unexpected production interruptions.
2. Can this EtherCAT module improve production efficiency?
Yes. With real-time EtherCAT communication and fast 500μs response time, the module ensures faster signal transmission and more accurate synchronization between PLCs, sensors, and actuators.
3. What problems does this module solve in industrial automation systems?
The module helps solve issues such as signal delays, unstable communication, complicated field wiring, insufficient I/O expansion, and unreliable data transmission in factory automation systems.
4. Is the module suitable for long-term industrial operation?
Yes. The industrial-grade design supports operation in harsh factory environments with wide temperature tolerance and stable communication performance.
5. Does the module support fast installation and maintenance?
Yes. The compact DIN rail design simplifies cabinet installation, while clear status indicators help engineers quickly identify communication and I/O status during maintenance.
