Home /Products/PLC IO Module/EtherCAT Protocol PAL I/O System 16DI+16DO DC24V Input 2RJ45 IP20 Industrial Control System

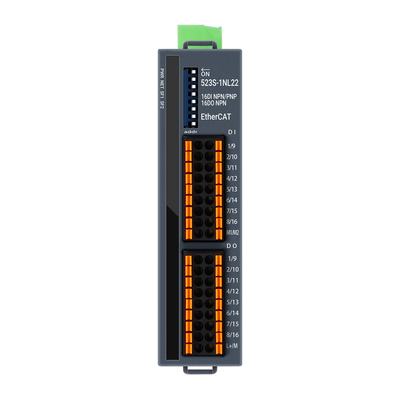

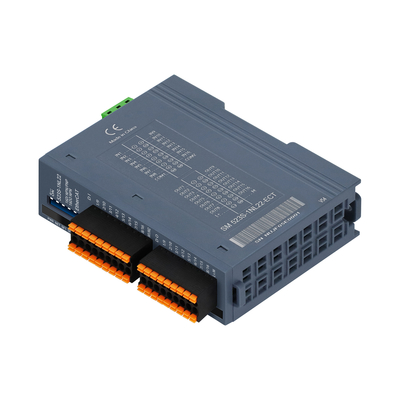

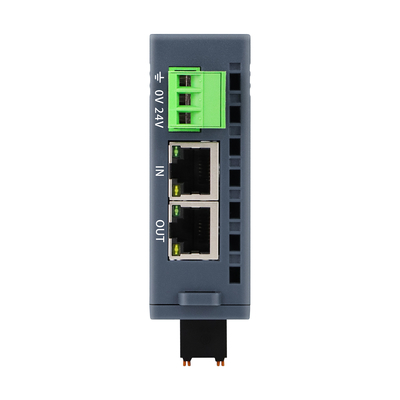

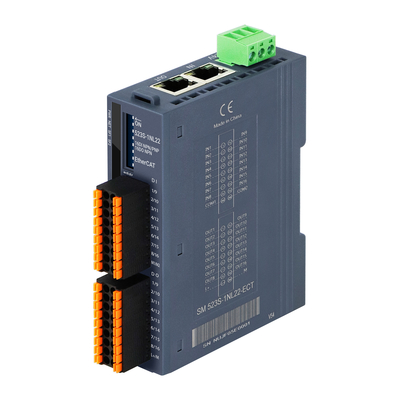

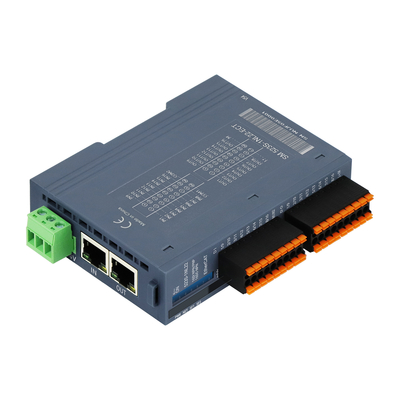

EtherCAT Protocol PAL I/O System 16DI+16DO DC24V Input 2RJ45 IP20 Industrial Control System

1 pc
MOQ
Negotiable
Price
EtherCAT Protocol PAL I/O System 16DI+16DO DC24V Input 2RJ45 IP20 Industrial Control System
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: EtherCAT Io Module
Protocol: EtherCAT
Working Voltage: 24VDC (voltage Range 18VDC~28VDC)
Protection Grade: IP20
Communication Interface: 2*RJ45
OEM: Accept
Highlight:

16DI+16DO PAL I/O System

,

IP20 PAL I/O System

,

DC24V PAL I/O System
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM523S-1NL22-ECTD1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

EtherCAT Protocol PAL I/O System 16DI+16DO DC24V input

2RJ45 IP20 Industrial Control System



Product Features of PAL I/O System



  • 2 RJ45 interfaces, 100Mbit/s
  • Bus, power isolation technology, and reliability
  • Standalone as EtherCAT slave station
  • Provide standalone XML files



Specification of EtherCAT PAL I/O system



Model OM52xS EtherCAT slave module
Technical Specifications
Working Voltage 24VDC (voltage range 18VDC~28VDC)
Operating Current Loss Based on different product models, please refer to the product manual for details
Power Protection Anti reverse connection protection, surge absorption
Communication Interface 2*RJ45
Power Terminal Type Plugged connector, screw wiring connection port
Signal Terminal Type Plugged connector, straight in PUSH-IN wiring port
Display Indication Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light
Protocol EtherCAT
Master-slave categories standalone slave devices
Main IO points Yes, please refer to the ordering data for details
Overcurrent Protection Threshold 1.5A, 5ms
IO Response Time Minimum 500us
Scalability Do not support Extension
Cable length (shielding) Maximum 500m
Cable length (unshielded) The maximum length of the input point is 300m, and the maximum length of the output point is 150m
Slave Station Settings
Address Settings Configuration by dial switch or master station
Maximum number of Stations per Segment 255 (The specific number of supported stations is determined by the master station)
Work Environment
Working Temperature -20~60℃
Working Humidity 5%~90% (non-condensation)
Protection Grade IP20
Dimensions(l* w * h) 27mm*94mm*114mm



Packing



EtherCAT Protocol PAL I/O System 16DI+16DO DC24V Input 2RJ45 IP20 Industrial Control System 0



Ordering Details



Specifications Product No.
OM521S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DI (common anode/common anode input), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM521S-1BL22-ECT
OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM522S-1BL22-ECT
OM522S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 32DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM522S-1NL22-ECT
OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DO (PNP output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM523S-1BL22-ECT
OM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input), 16DO (NPN output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM523S-1NL22-ECT
OM523S standalone module, SM523S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dial code setting station ID address, the product comes with 16DI (common anode/common anode input) and 12DO (relay output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM523S-1HJ22-ECT
OM524S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DI (common anode/common anode input) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM524S-2NL22-ECT
OM525S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address, the product comes with 16DO (NPN output) and 16DIO (NPN input/NPN output configurable, 2-way group configuration), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM525S-3NL22-ECT
OM526S standalone module, EtherCAT bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing to set station ID address. The product is equipped with 16DIO (NPN type, 2-channel group configuration input or output), does not support internal bus expansion module, IP20 protection level, supports DN35 din-rail installation



OM526S-1NH22-ECT

(planning product)



FAQ:



1.Are you a manufacturer?
Yes, we have our production line and R&D team.
Please visit us via below VR link to see our office and production area.
https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

2. What is the leadtime if I order?
After receiving the payment, we start production.
If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.
If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

3. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.

4. What is MoQ?
1 Pc/Pair.
For many models, we have stock, it is easy to send samples for your testing.

5. Can I have a discount?
Yes and it is usually based on quantity and after sample testing.
