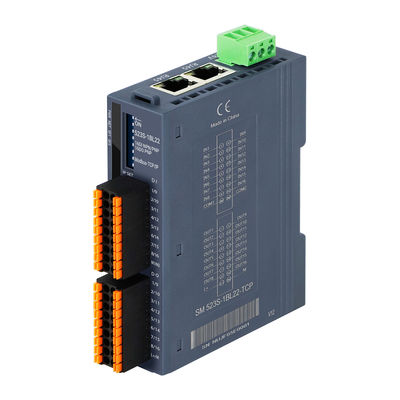

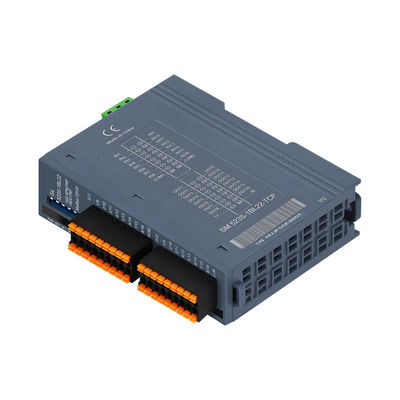

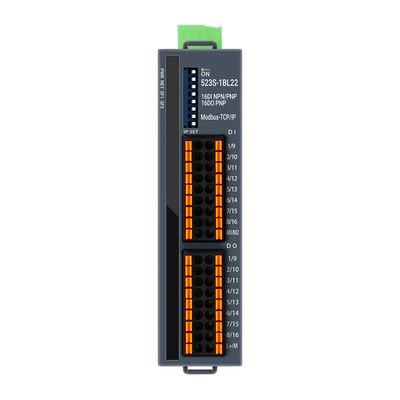

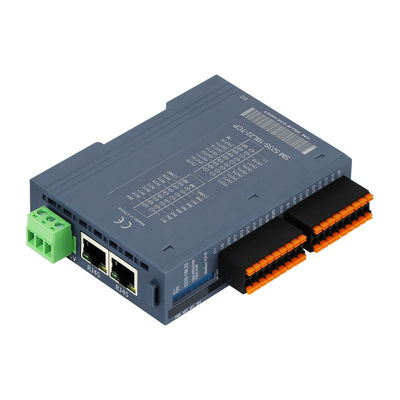

Industrial remote I/O module PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail

1 pc
MOQ
Negotiable
Price
Industrial remote I/O module PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: PLC Module Modbus-TCP/IP I/O Module
Protocol: Modbus-TCP/IP,S7-TCP/IP
Working Voltage: 24VDC (voltage Range 18VDC~28VDC)
Protection Grade: IP20
Communication Interface: 2*RJ45
Working Temperature: -20~60℃
OEM: Accept
Highlight:

IP20 PLC IO Module

,

16DI 16DO PLC Module

,

24VDC PLC IO Module
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE
Model Number: OM523S-1BL22-TCP1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description

Industrial remote I/O module PLC Module Modbus-TCP/IP I/O Module

100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail


Product Features of Industrial remote I/O module



Dual Ethernet Ports for Flexible Industrial Networking

  • Equipped with 2 × 100Mbps RJ45 Ethernet interfaces
  • Supports stable Modbus-TCP/IP and S7-TCP/IP communication
  • Easy integration with PLCs, SCADA systems, and industrial controllers

Distributed Remote I/O Control

  • Supports remote collection and transmission of digital input/output signals
  • Reduces field wiring complexity in large industrial systems
  • Ideal for distributed automation architectures

Industrial-Grade Reliability

  • Built-in power isolation and surge absorption protection
  • Anti-reverse power connection protection
  • Stable operation in harsh industrial environments

Fast I/O Response

  • Minimum I/O response time of 2ms
  • Suitable for real-time industrial monitoring and control applications

Flexible Installation

  • Compact DIN rail mounting design
  • Supports DN35 standard rail installation
  • Compact size: 27 × 94 × 114 mm

Long-Distance Signal Transmission

  • Shielded cable transmission distance up to 500m
  • Input/output signal extension for large-scale industrial sites

Easy Device Configuration

  • IP address configurable via DIP switch or web interface
  • Supports up to 255 slave stations per network segment

Wide Industrial Operating Range

  • Operating temperature: -20°C to +60°C
  • Humidity: 5%–90% non-condensing
  • Designed for continuous industrial operation


Specification of PLC Module Modbus-TCP/IP I/O Module


Model OM52xS Modbus TCP Slave Module
Technical Specifications
Working Voltage 24VDC (allowable voltage range 18VDC~28VDC)
Operating Current Loss Based on different product models, please refer to the product manual for details
Power Protection Anti reverse connection protection, surge absorption
Communication Interface 2*RJ45
Power Terminal Type Plugged connector, screw wiring connection port
Signal Terminal Type Plugged connector, straight in PUSH-IN wiring port
Display Indication Power supply, NET green indicator light, SF red indicator light, IO signal green indicator light
Protocol Modbus-TCP/IP,S7-TCP/IP
Master-slave Categories standalone slave devices
Main IO Points Yes, please refer to the ordering data for details
Overcurrent Protection Threshold 1.5A,5ms
IO Response Time Min 2ms
Scalability Do not support Extension
Cable length (shielding) Maximum 500m
Cable length (unshielded) The maximum length of the input point is 300m, and the maximum length of the output point is 150m
Slave Station Settings
IP Settings Set by dial switch or webpage
Maximum number of Stations per Segment 255 (The specific number of supported stations is determined by the main station)
Work Environment
Working Temperature -20~60℃
Working Humidity 5%~90% (non-condensation)
Altitude Below 2000 meters (80kPa)
Protection Grade IP20
Dimensions (L* W* H) 27mm*94mm*114mm


Packing


Industrial remote I/O module PLC Module Modbus-TCP/IP I/O Module 100Mbit/s 24VDC Input 16DI +16DO IP20 Din Rail 0


Ordering Details


Specifications Product No.
OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (PNP output), IP20 protection level, supports DN35 rail installation


OM523S-1BL22-TCP
OM523S standalone module, Modbus TCP/IP, S7-TCP/IP bus, 2 RJ45 ports, 24VDC power supply, with 8-bit dialing setting Station IP address, the product comes with 16DI (common yin/common yang input), 16DO (NPN output), IP20 protection level, supports DN35 rail installation


OM523S-1NL22-TCP


How It Solves Real Industrial Problems


Reduces Long-Distance Wiring

Instead of routing every sensor and output signal back to the main PLC cabinet, field signals are collected locally by the OM523S and transmitted through Ethernet networks. This significantly reduces copper wiring costs and simplifies installation.

Improves System Scalability

New production equipment or sensors can be added easily by deploying additional remote I/O modules without redesigning the entire control cabinet.

Enhances Communication Reliability

Industrial isolation technology and surge protection improve system stability in electrically noisy factory environments.

Enables Centralized Monitoring

All distributed field signals can be monitored and controlled centrally through PLC or SCADA systems via Modbus TCP/IP communication.

Speeds Up Maintenance

Distributed architecture allows maintenance engineers to quickly locate faults and replace modules without affecting the entire production line.
