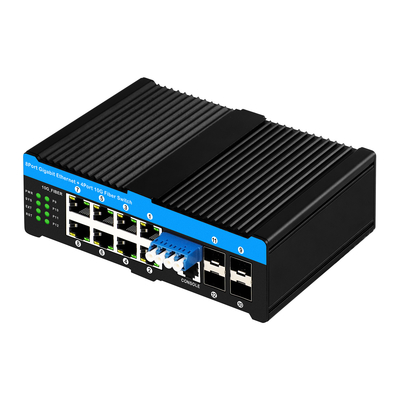

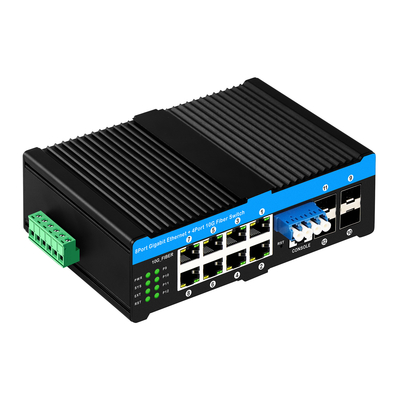

4*10G sfp ports+8*10/100/1000mbps 12 port
managed 10G optical bypass poe switch
Key Features of 10G managed poe switch
Management Interface
Specification of 10G Ethernet Switch
|
Product Name |
10G Managed Industrial POE Fiber Switch (4F+8TP) |
|
Model No. |
IM-FP4X88BGW |
|
Port |
4x 10GBase-FX SFP+ Fiber SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
|
Standard |
IEEE 802.3: 10Base-T 10Mbit/s Ethernet IEEE 802.3u: 100Base-TX, Fast Ethernet IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.1d: STP (Spanning Tree Protocol) IEEE 802.1s: 100Base-TX, Fast Ethernet IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol ) ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching) IEEE 802.1Q: Virtual LANs (VLAN) IEEE 802.1X: Port based and MAC based Network, Access Control,Authentication IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol) IEEE 802.3x: Flow control for Full Duplex IEEE 802.1ad: Stacked VLANs IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization IEEE 802.1ab: Link Layer Discovery Protocol (LLDP) IEEE 802.1az: EEE (Energy Efficient Ethernet) IEEE802.3af: 15.4W IEEE802.3at: 30W |
|
Switch Architecture |
System bandwidth:176Gbps (non-traffic jam) DRAM size: 4GB Switching delay: <10us Packet buffer :12Mbit Throughput: 95.23Mpps Jumbo frame :12KB MAC function :16K L2 |
|
Extended functionality(optional) |
BYPASS optical bypass protection function |
|
Power Consumption |
8W(no-load) 18W (Full-load) |
|
8W(no-load) 18W (Full-load) |
Redundant DC48V (48~52VDC) power (Removable Terminal Block ) |
|
LED |
Per unit: Power 1 (Red), SYS (Red), RJ-45 port: Link/Active (Green) Speed(Yellow) SFP Fiber port: Link/Active (Green) Extension indicator |
|
Operating Temperature |
-40 ~ 75°C |
|
Dimensions |
165 x 112 x 54mm |
|
Weight |
0.85kg |
|
Installation Mounting |
Din-rail mounting |
| Warranty | 3 years |
Packing List:
FAQ:
1. What is the power input?
A: For non-PoE managed switches, it receives DC12V~52V, for PoE managed switches, it receives DC48V~52V.
All the models support redundant input.
2. How can I install the device?
A: Each model in this series supports DIN35/Wall mounting.
It requires necessary accessories in installation like screws, mounting kit etc., some of them are included in the packing box, some are not.
3. Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
4. Can you supply a customized PVC label with my model on it?
A: Yes, there is a description, model name, and logo on the front PVC mask, all is available for customization.
5. What is the packing list?
A: There is a device, protective foam, a user manual, a warranty card and a console cable in the box.
But SFP modules and power supply are NOT included, please purchase it from us separately.
